9.2 Propulsion system
9.2.1 To remove and install the engine

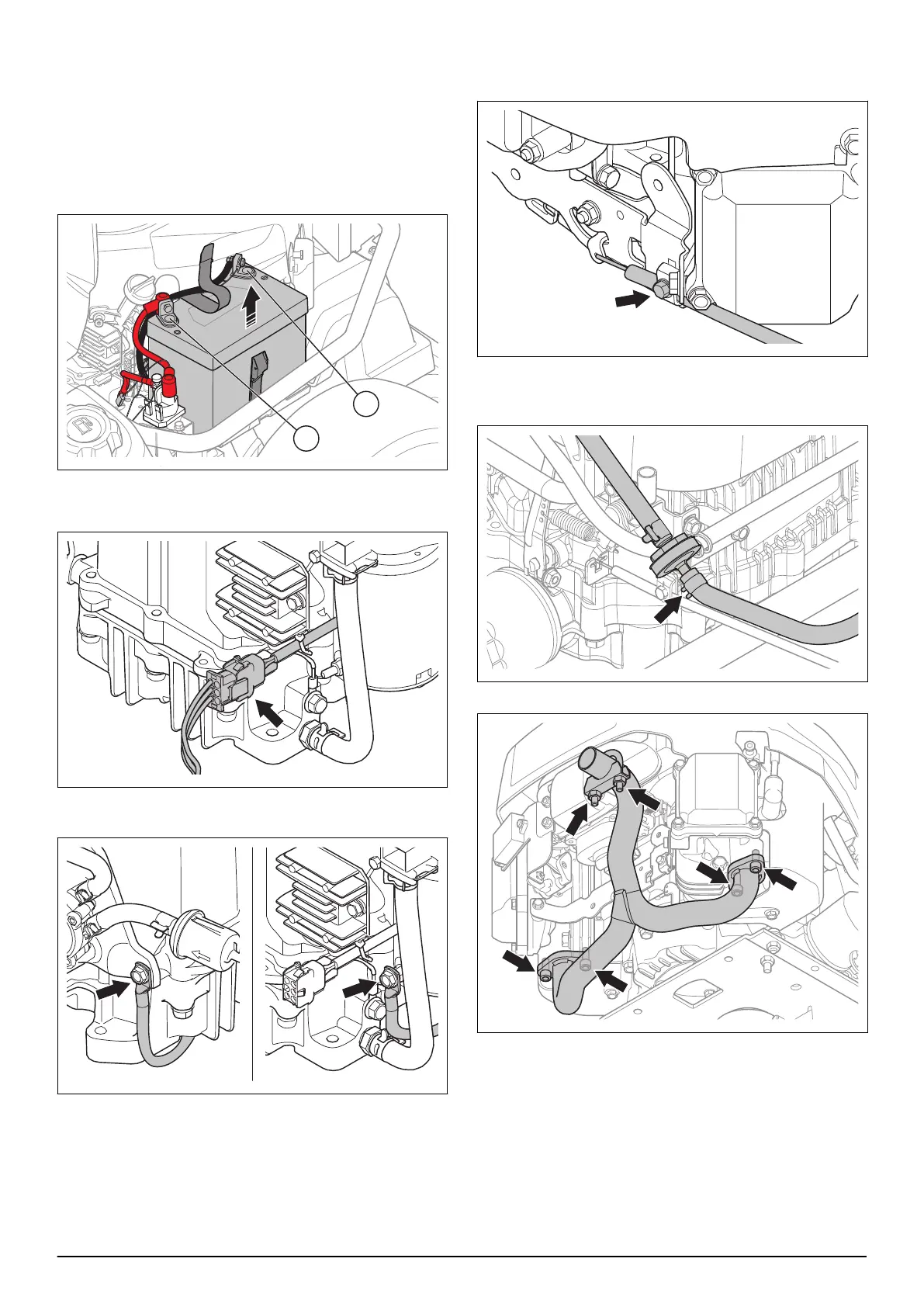

1. Remove the engine cover. Refer to
To remove the
engine cover on page 18
2. Disconnect the ground terminal (A) and then the
positive terminal (B). Refer to
Risk of sparks on
page 4
.
3. Lift the battery.
4. Disconnect the engine pin connector.
5. Disconnect the ground cable and the starter motor
cable.
6. Loosen the clips that hold the throttle cable and, if
attached, the choke cable. Disconnect the cables
from the carburetor casing.
7. Remove the hose clamps adjacent to the fuel filter
and pull the fuel hose down. A small quantity of fuel
can leak.
8. Remove the muffler and the exhaust pipe.
24 - Repair instructions 1676 - 001 - 26.11.2021
