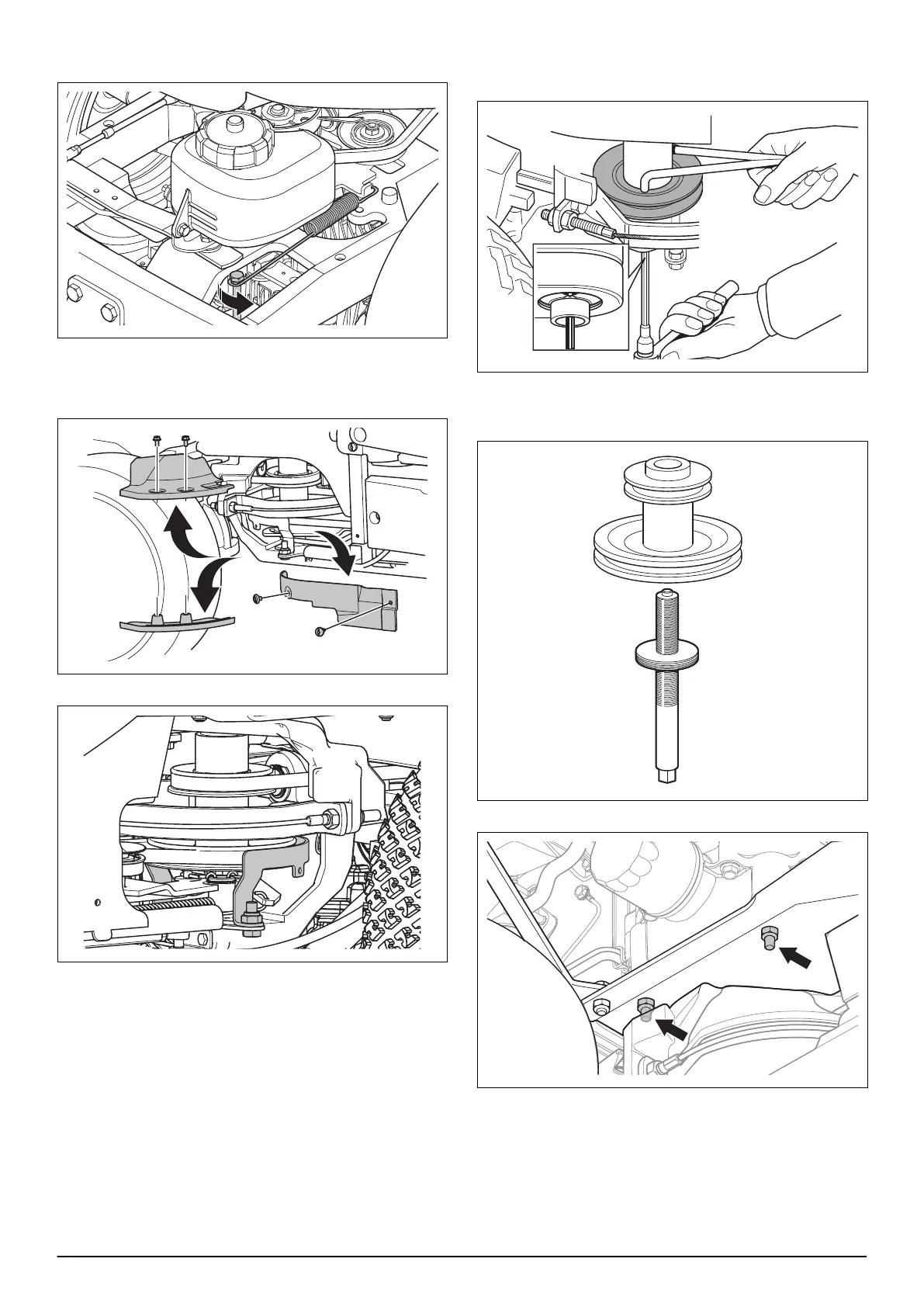

9. Remove the transmission belt spring from the belt
tensioner.
10. Lift the transmission belt from the tension pulley.
11. Remove the engine pulley covers on the left and
right side of the product. Do not mix the screws.
12. Remove the belt guide for the engine belt pulley.
13. Hold the belt pulley with a counterhold and remove
the Allen screw that holds the belt pulley and engine
together. Refer to
Servicing tools on page 15
14. Loosen the belt pulley from the engine shaft. Use a
puller if it is necessary. Refer to
Servicing tools on
page 15
15. Remove the 4 engine fixtures.
16. Lift the engine to remove it.
17. Install the engine in the opposite sequence.
1676 - 001 - 26.11.2021 Repair instructions - 25
