Husqvarna R 214T Workshop Manual

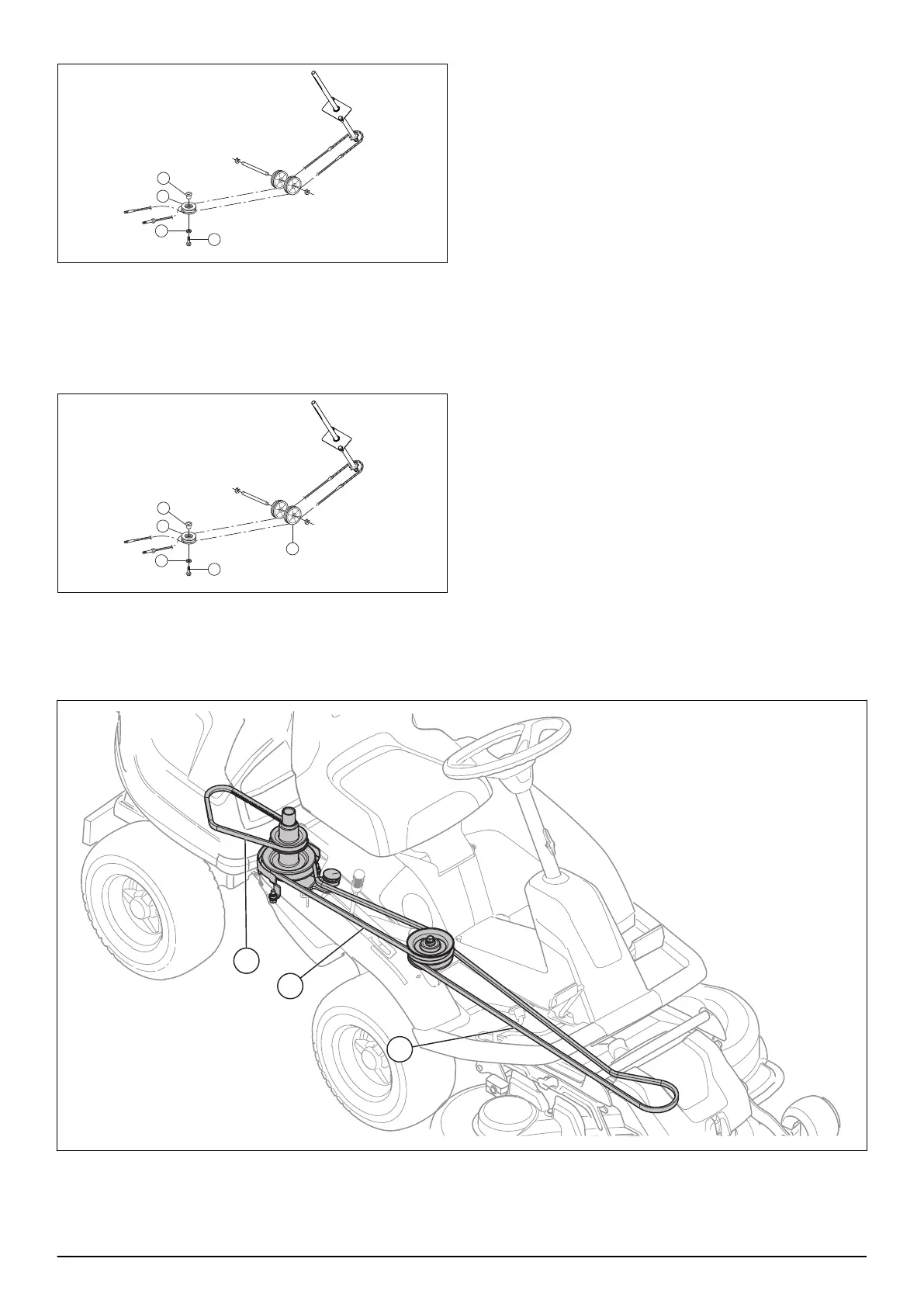

3. Remove the screw (A) and the washer (B).
C
A
B
D
4. Remove the steering cable pulley (C) and the
bushing (D).
9.8.4 To attach the steering cable pulley
1. Put the screw (A) through the washer (B), the
steering cable pulley (C) and the bushing (D).
C
A
E
B
D
2. Attach the screw (A) to the rear hole in the frame.
3. Put the cables below the steering cable rollers (E)
below the tunnel cover.
4. Tension and adjust the steering cables. Refer to To
examine and adjust the steering cables on page 43 .
9.9 Belts
9.9.1 Belts overview
1
2
3
44 - Repair instructions 1676 - 001 - 26.11.2021
