7. Install the rear belt.
8. Install the hydrostatic transmission fan.
9. Install the hydrostatic transmission cable. Make sure
that the hydrostatic transmission is correctly
adjusted. Refer to
To adjust the hydrostatic
transmission cable on page 38
.
10. Install the brake cable on two-wheel drive products.
11. Install the idler spring.
12. Install the rear wheels.
13. Lower the product
14. Connect the hydraulic hoses to the couplings below
the product.
15. Fill and bleed the hydrostatic transmission system.
Refer to
To replace the oil in the transmission on
page 38
.
16. Install the transmission cover.

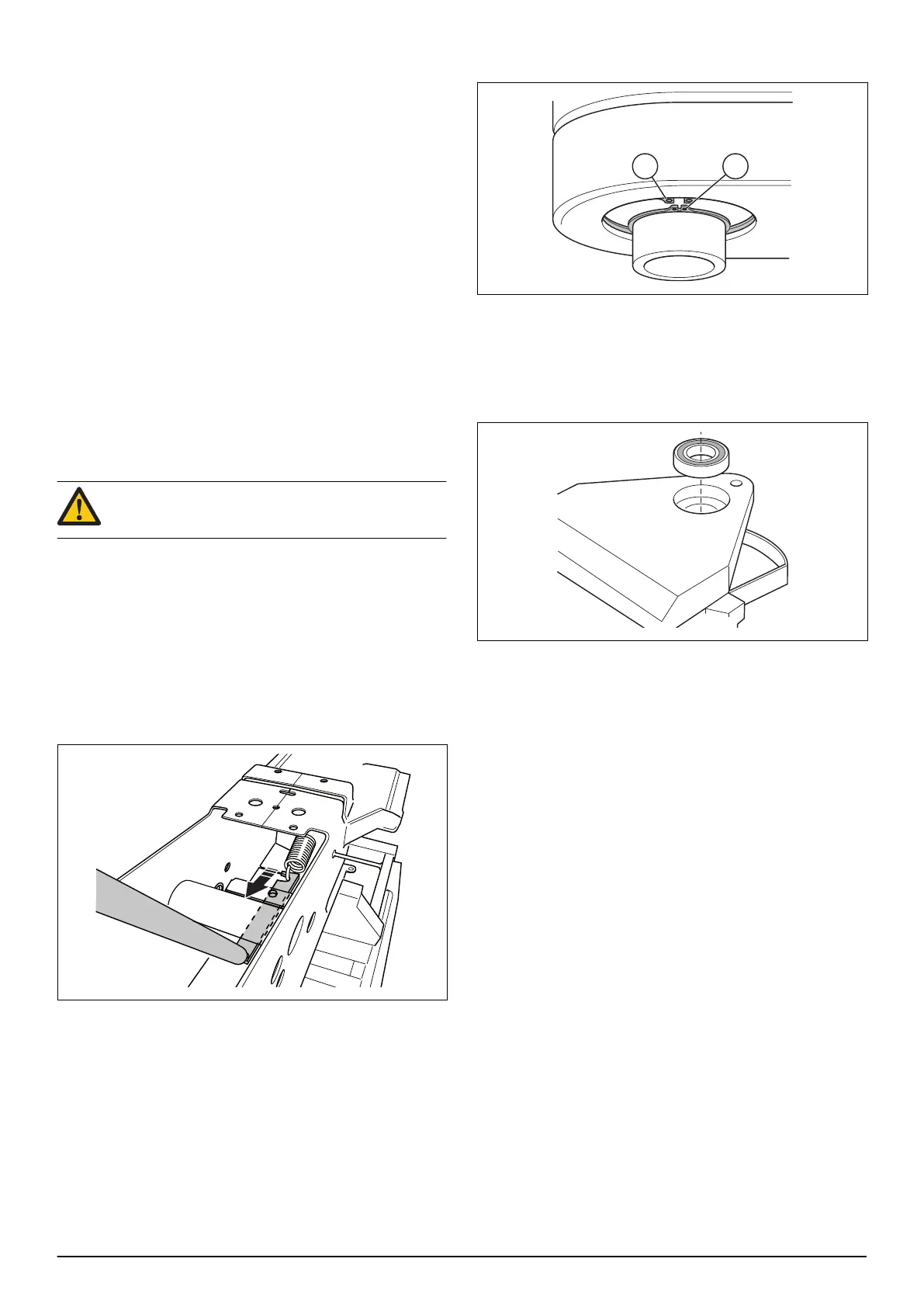

9.1.6.4 To replace articulated steering bearing
WARNING: Use protective goggles and gloves
when you remove and attach the center spring.
1. Do steps 1–11 in
To remove and install the engine
on page 24
.
2. Disassemble the pivoting rear axle. Refer to
To
disassemble the pivoting rear axle on page 21
.
3. If your product has a center spring, remove the
center spring. The tension in the center spring is
very high. Use the special tool for center spring to
release the center spring. Refer to
Servicing tools on
page 3
.
4. Remove the inner snap ring (A) from the lower
bearing.
5. Remove the spindle.
6. Remove the outer snap ring (B) and lift out the lower
bearing.
7. Lift the top bearing from above. If it is necessary, tap
the bearing from below.
8. Attach the new bearings.
9. Assemble in opposite sequence.
10. Do a check of the tension of the steering cable.
Refer to
To examine and adjust the steering cables
on page 43
.
11. Do a check that the speed control and cables are
correctly adjusted. Refer to
Hydrostatic transmission
cable on page 36
.
12. Bleed the hydraulic system and fill the transmission
oil tank with oil. Refer to
To replace the oil in the
transmission on page 38
.
13. Do a function test of the product.
1676 - 001 - 26.11.2021 Repair instructions - 23
