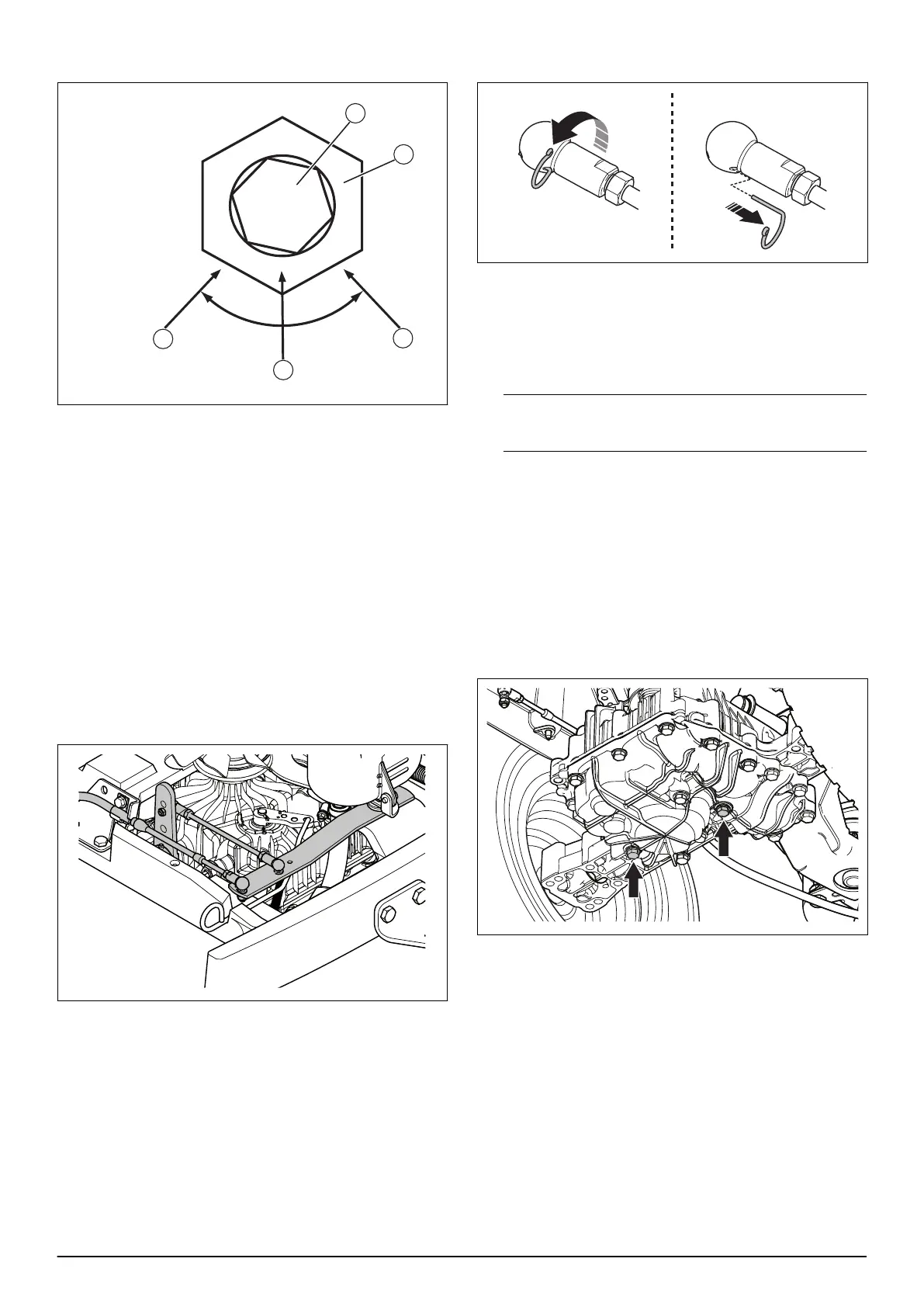

6. Make a mark at the position where the wheels start
to turn (C).
7. Turn the adjustment shaft (B) counterclockwise until
the wheels start to turn forward.
8. Make a mark at the position where the wheels start
to turn (D).
9. Turn the adjustment shaft (B) clockwise to the
middle position between the marks (E).
10. Hold the adjustment shaft (B) and tighten the locknut
(A).
9.5.6.2 To adjust the hydrostatic transmission cable
1. Remove the transmission cover. See
To remove the
covers on page 18
.
2. Make sure the front ball joint on the rod is attached
to the second hole from the top on the rear
transmission lever.
3. Disconnect the ball joint from the hydrostatic
transmission cable by removing the lock spring.
4. Make sure that the forward pedal is fully pushed.
5. Bend the arm to fully and do a check that the ball
and the ball socket in the ball joint align.
6. Adjust the ball socket on the cable until it is correctly
above the ball on the lever arm.
Note: Make sure the that locking spring goes
through the two holes in the ball socket.
7. Turn the ball socket two more times.
8. Assemble the ball joint and the locking spring for the
ball joint.
9. Tighten the locknut for the ball socket on the cable.
10. Attach the transmission cover.
9.5.6.3 To replace the oil in the transmission
1. Put a container below the drain plugs.
2. Open the 2 plugs to drain the transmission.
3. Attach the drain plugs.
4. Fill the transmission oil tank with oil.
5. Bleed the transmission. Refer to
To bleed the drive
system on page 32
.
6. Do a test of the product and fill with oil to the correct
level in the transmission oil tank.
38 - Repair instructions 1676 - 001 - 26.11.2021
