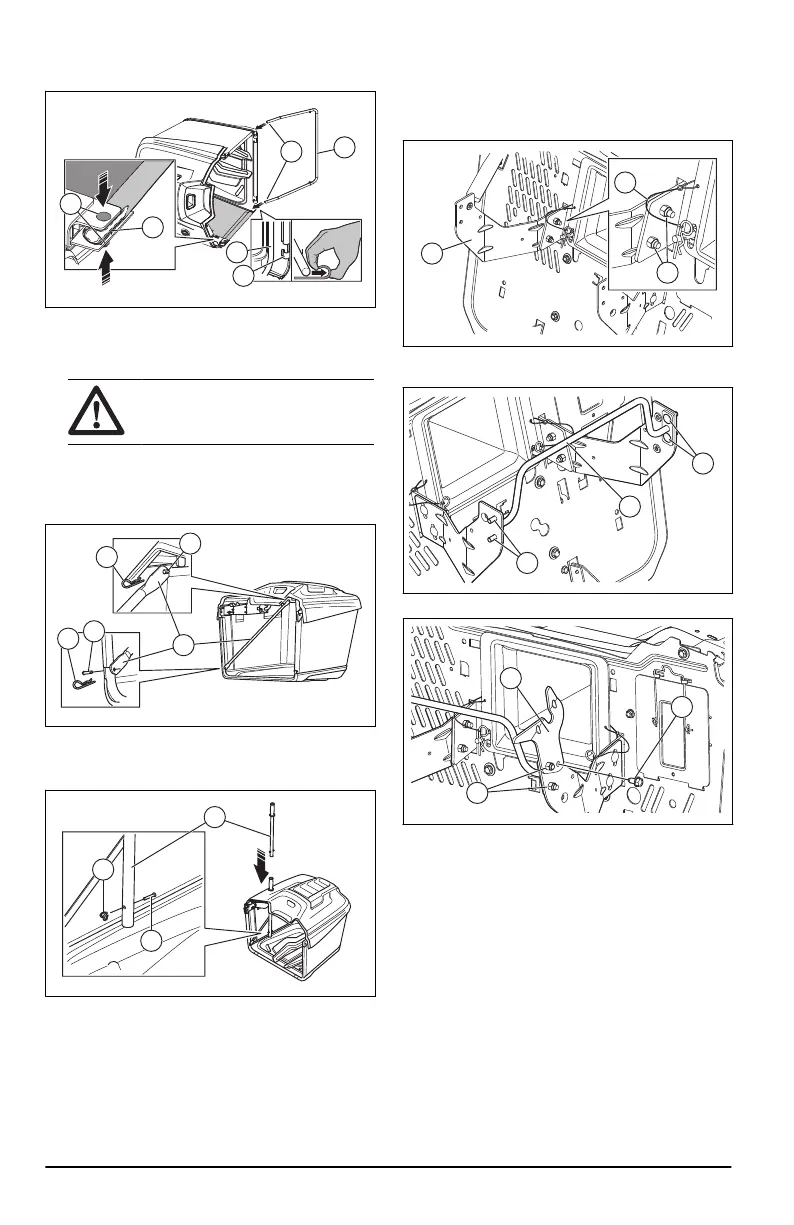

4. Push the ends (B) of the front frame (C) through
the loops in the fabric.
A
D
C
C
B
E
5. Push the 2 screws (A) through the fabric (D) and
the frames.
6. Install the 2 nuts.
CAUTION: Use a maximum
torqe of 11 Nm.
7. Push the front frame into the clips (E) in the front
of the floor of the grass catcher.
8. Push the 4 clevis pins (F) through the frames and
the 2 cross braces (G).
H
H
F
F
G
9. Install the 2 retainer springs (H).
10. Push the grass catcher handle (I) through the
hole in the top of the grass catcher.
I
K
J
11. Install the clevis pin (J) and the clip (K).
To install the grass catcher brackets
1. Install the grass catcher bracket (A) and tighten
the 2 screws and the 2 nuts (B). Make sure that
the top edges of the brackets (C) align.
A
C
B
2. Install the offset strut (D) and the 4 carrage bolts
(E).
E
E
D
3. Install the 2 pivots (F).
F
H
G
4. Install the 2 washer head bolts (G).
5. Install the 4 nuts (H).
To adjust the grass catcher brackets
The position of the grass catcher brackets can be
adjusted.
1. Do the steps that follow to adjust the vertical
position of the grass catcher brackets.
12
2010 - 003 - 10.04.2023
