4 VIEW OF VEHICLE

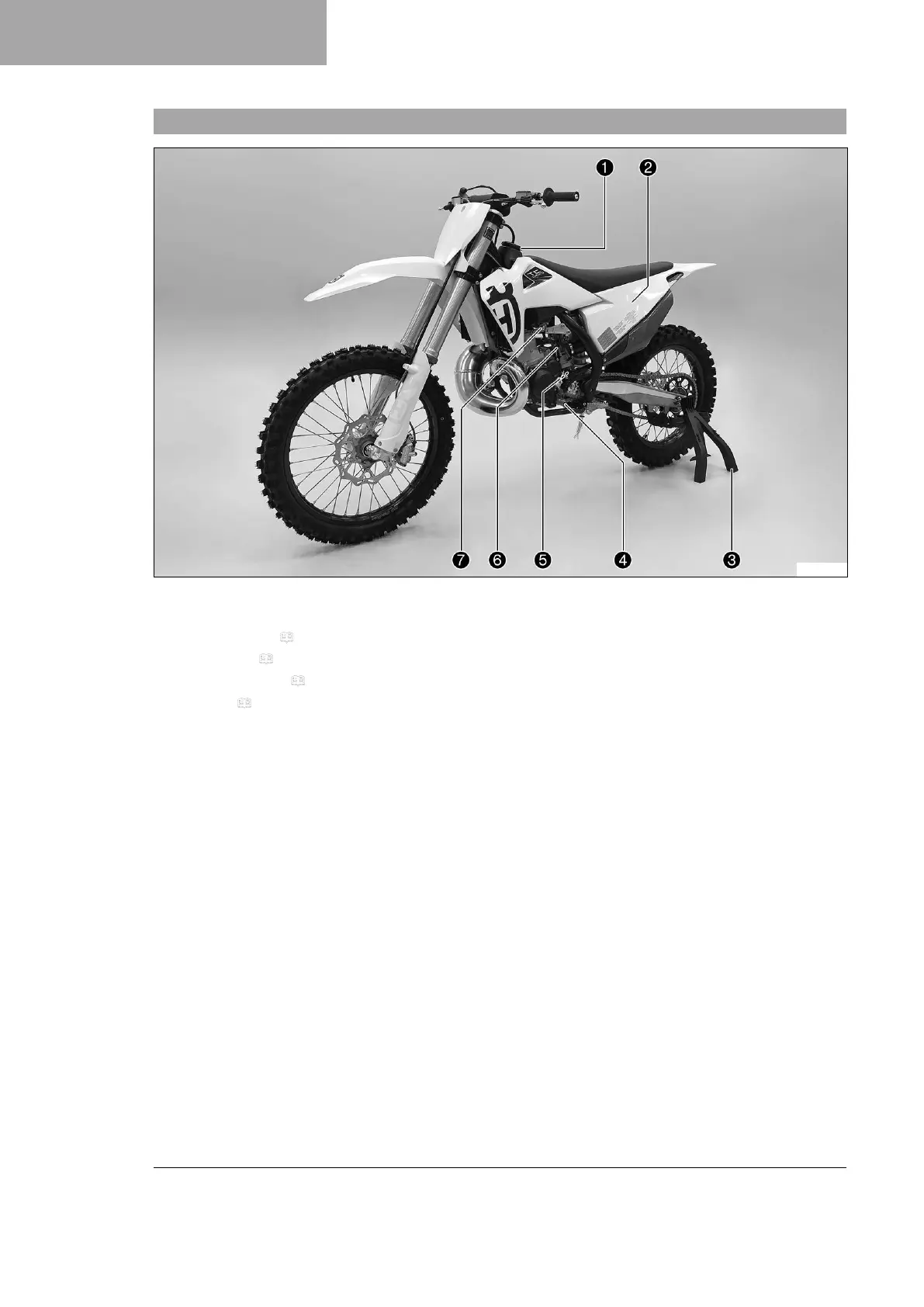

4.1 View of vehicle, front left (example)

F02288-10

Fuel tank filler cap

Air filter box cover

Plug-in stand ( p. 20)

Shift lever ( p. 19)

Engine number ( p. 14)

Choke ( p. 18)

Fuel tap

Default Chapter4
- Table of Contents4
1 Means of Representation 17
- Symbols Used7
- Formats Used7
2 Safety Advice8
- Use Definition - Intended Use8
- Misuse8
- Degrees of Risk and Symbols8
- Tampering Warning9
- Safe Operation9
- Protective Clothing10
- Work Rules10
- Environment10
- Owner's Manual10
3 Important Notes12
- Manufacturer Warranty, Implied Warranty12
- Fuel, Auxiliary Substances12
- Spare Parts, Accessories12
- Service12
- Figures12
- Customer Service13
4 View of Vehicle14
- View of Vehicle, Front Left (Example)14
- View of Vehicle, Rear Right (Example)15
5 Serial Numbers16
- Vehicle Identification Number16
- Type Label16
- Engine Number16
- Fork Part Number16
- Shock Absorber Article Number17
6 Controls18
- Clutch Lever18
- Hand Brake Lever18
- Throttle Grip18
- Stop Button18
- Map Switch19
- Opening Fuel Tank Filler Cap19
- Closing the Fuel Tank Filler Cap20
- Fuel Tap20
- Choke20
- Shift Lever21
- Kick Starter Lever21
- Foot Brake Lever21
- Plug-In Stand22
- Service Hour Counter22
7 Preparing for Use 723
- Advice on Preparing for First Use23
- Running in the Engine24
- Preparing the Vehicle for Difficult Operating Conditions24
- Preparing Vehicle for Rides on Dry Sand25
- Preparing Vehicle for Rides on Wet Sand26
- Preparing Vehicle for Rides on Wet and Muddy Circuits28
- Preparing Vehicle for High Temperatures or Slow Riding28
- Preparing Vehicle for Low Temperatures or Snow29
8 Riding Instructions30
- Checks and Maintenance Measures When Preparing for Use30
- Starting the Vehicle30
- Starting off31
- Shifting, Riding31
- Applying the Brakes32
- Stopping, Parking32
- Transporting33
- Refueling34
9 Service Schedule 935
- Additional Information35
- Required Work35
- Recommended Work36
10 Tuning the Chassis 1037
- Checking the Basic Chassis Setting with the Rider's Weight37
- Air Suspension XACT 544837
- Compression Damping of the Shock Absorber38
- Adjusting the Low-Speed Compression Damping of the Shock Absorber38
- Adjusting the High-Speed Compression Damping of the Shock Absorber39
- Adjusting the Rebound Damping of the Shock Absorber39
- Measuring the Rear Wheel Dimension Unloaded40
- Checking the Static Sag of the Shock Absorber41
- Checking the Riding Sag of the Shock Absorber41
- Adjusting the Spring Preload of the Shock Absorber42
- Adjusting the Riding Sag43
- Checking the Basic Setting of the Fork43
- Adjusting the Fork Air Pressure44
- Adjusting the Compression Damping of the Fork45
- Adjusting the Rebound Damping of the Fork45
- Handlebar Position46
- Adjusting the Handlebar Position46
11 Service Work on the Chassis48
- Raising the Motorcycle with a Lift Stand48
- Removing the Motorcycle from the Lift Stand48
- Bleeding the Fork Legs48
- Cleaning the Dust Boots of the Fork Legs49
- Removing the Fork Protector50
- Installing the Fork Protector50
- Removing the Fork Legs50
- Installing the Fork Legs51
- Removing the Lower Triple Clamp52
- Installing the Lower Triple Clamp53
- Checking Steering Head Bearing Play55
- Adjusting Steering Head Bearing Play56
- Lubricating the Steering Head Bearing56
- Removing the Start Number Plate57
- Installing the Start Number Plate57
- Removing Front Fender57
- Installing Front Fender58
- Removing the Shock Absorber58
- Installing the Shock Absorber60
- Removing the Seat61
- Mounting the Seat62
- Removing the Air Filter Box Cover62
- Installing the Air Filter Box Cover62
- Removing the Air Filter63
- Cleaning the Air Filter and Air Filter Box63
- Installing the Air Filter64
- Removing the Main Silencer65
- Installing the Main Silencer65
- Changing the Glass Fiber Yarn Filling of the Main Silencer65
- Removing the Right Side Cover66
- Installing the Right Side Cover67
  - Removing the Fuel Tank67
  - Installing the Fuel Tank68
  - Checking the Chain for Dirt70
  - Cleaning the Chain70
  - Checking the Chain Tension71
  - Adjusting the Chain Tension71
  - Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide72
  - Checking the Frame75
  - Checking the Link Fork75
  - Checking the Throttle Cable Routing75
  - Checking the Rubber Grip76
  - Adjusting the Basic Position of the Clutch Lever76
  - Checking/Correcting the Fluid Level of the Hydraulic Clutch77
  - Changing the Hydraulic Clutch Fluid78
12 Brake System80
- Checking the Free Travel of the Hand Brake Lever80
- Adjusting the Basic Position of the Hand Brake Lever80
- Checking the Brake Discs80
- Checking the Front Brake Fluid Level81
- Adding Front Brake Fluid82
- Checking the Front Brake Linings83
- Changing the Brake Linings of the Front Brake83
- Checking the Free Travel of Foot Brake Lever86
- Adjusting the Basic Position of the Foot Brake Lever86
- Checking the Rear Brake Fluid Level87
- Adding Rear Brake Fluid87
- Checking the Brake Linings of the Rear Brake89
- Changing the Rear Brake Linings89
13 Wheels, Tires92
- Removing the Front Wheel92
- Installing the Front Wheel93
- Removing the Rear Wheel93
- Installing the Rear Wheel94
- Checking the Tire Condition96
- Checking Tire Pressure96
- Checking Spoke Tension97
14 Cooling System98
- Checking the Antifreeze and Coolant Level98
- Checking the Coolant Level99
- Draining the Coolant99
- Refilling with Coolant100
- Changing the Coolant102
15 Tuning the Engine104
- Checking the Play in the Throttle104
- Cable104
- Adjusting the Play in the Throttle Cable104
- Carburetor Tuning105
- Carburetor - Idle Setting107
- Carburetor - Adjusting the Idle Speed108
- Emptying the Carburetor Float Chamber109
- Checking the Basic Position of the Shift Lever110
- Adjusting the Basic Position of the Shift Lever110
- Engine Characteristic - Auxiliary Spring111
- Engine Characteristic - Adjusting the Auxiliary Spring111
16 Service Work on the Engine 16113
- Checking the Gear Oil Level113
- Changing the Gear Oil113
- Adding the Gear Oil114
17 Cleaning, Care116
- Cleaning the Motorcycle116
18 Storage118
- Preparing for Use after Storage119
19 Troubleshooting120
20 Technical Data122
- Engine122
- Engine Tightening Torques122
- Carburetor125
- Carburetor Tuning125
- Carburetor - Basic Setting for Sandy Surfaces126
- Capacities126
- Gear Oil126
- Coolant126
- Fuel126
- Chassis126
- Tires127
- Fork127
- Shock Absorber128
- Chassis Tightening Torques128
21 Substances131
22 Auxiliary Substances133
23 Standards135
24 List of Abbreviations136
- Index137
