DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF1
1
07/22/05
A Updated dwg; revised load ratings; replaced fuses 8/31/07 JR
CRFD 7'-4"
W0400009

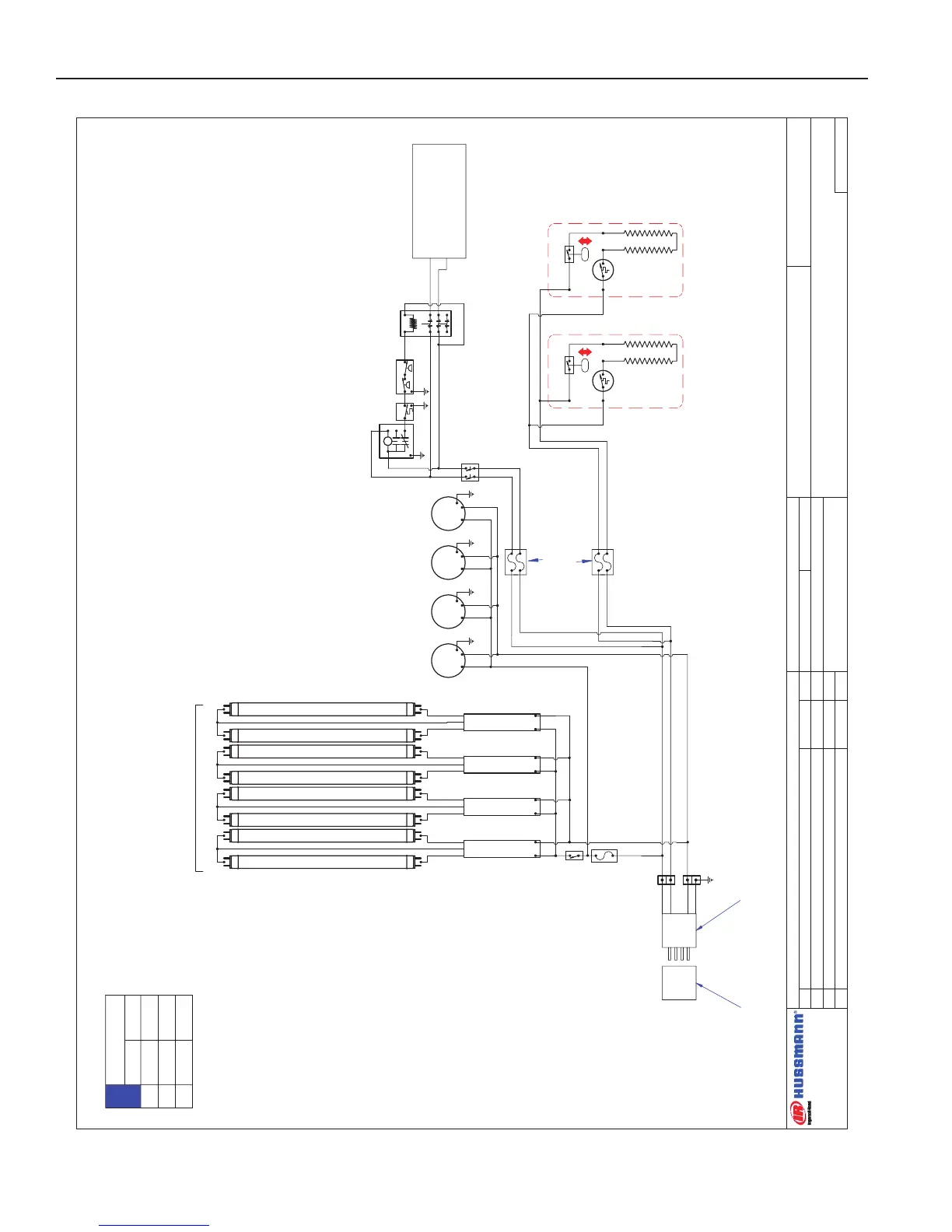

CRFD 7'-4" FLORA REFRIGERATED CASE
LIGHT SWITCH
125-01-0307
CANOPY LIGHTING
(8) F32T8-48" LAMP
125-03-1073
(4) LIGHT FIXTURE
125-02-1082
TERMINAL
BLOCK
125-01-0295
SAFETY
SWITCH
FLOAT SWITCH
SAFETY
SWITCH
FLOAT SWITCH
POWER: ~ 208 / 240 VAC - 60 HZ.
EVAPORATOR FAN MOTOR
15 AMP FUSE
125-01-8604
FUSE HOLDER
125-01-8605
125-01-8510
NEMA L14-60P
MALE PLUG
125-01-8514
NEMA L14-60R
FEMALE PLUG
L1
L2
N
G
NOTE:
1. USE
RECEPTACLE
MOUNTING PLATE
PART NUMBER
125-01-8515
WHITE-14 AWG
BLACK-12 AWG
BLACK-12 AWG
BLACK-8 AWG
BLACK-14 AWG
WHITE-14 AWG
RED-8 AWG
BLACK-12 AWG
RED-12 AWG
RED-12 AWG
RED-12 AWG
RED-12 AWG
BLACK-12 AWG
BLK-14 AWG
WHITE-14 AWG
T
X
4
N
3
1
2
DEFROST TIMER
PARAGON 8045-20
~208 V - 60 Hz.
125-01-0715
PRESSURE
SAFETY
T-STAT
EXHAUST FAN
M M M M
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
CONDENSING UNIT
COPELAND F9AD-B225-CFV-140
RLA= 16.9A 3304W
MCC= 24.4A
225-03-0111A
L2
L1
CONDENSING UNIT
Compressor
Motor Switch
125-01-0271
EVAP PAN 2000W
8.3A @ 240VAC
125-01-0500
EVAP PAN 2000W
8.3A @ 240VAC
125-01-0500
(4) 20 AMP FUSE
125-01-8537
(4) FUSE HOLDER
125-01-8612
LIGHT CIRCUIT= 2.37A, 256W
FAN MOTORS
(4) GE-9W CW W
125-01-0615A
.6A @ 120VAC
GREEN # 8
CIRCUIT #1
NOTE: CASE MUST
BE GROUNDED
38.3
33.5
36.1
31.3
L1
L2
L3
208 V 240 V
LOADING
7596W @ 240VAC
6600W @ 220VAC
To Next Page
