Hussmann ISLA Series - Page 27

27
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
CRAIG BOOREY
PAGE OF

11
1
11/21/11
B CN#647046, Re-Wired the Relay connection 9/10/12 SP
C CN#987576 Changed Evaporator Pan 6/19/15 CB
D ECN-CAP-0004786 SYNC REVISION WITH TC 10/13/16 NCL
ISLA CASES
1H66352

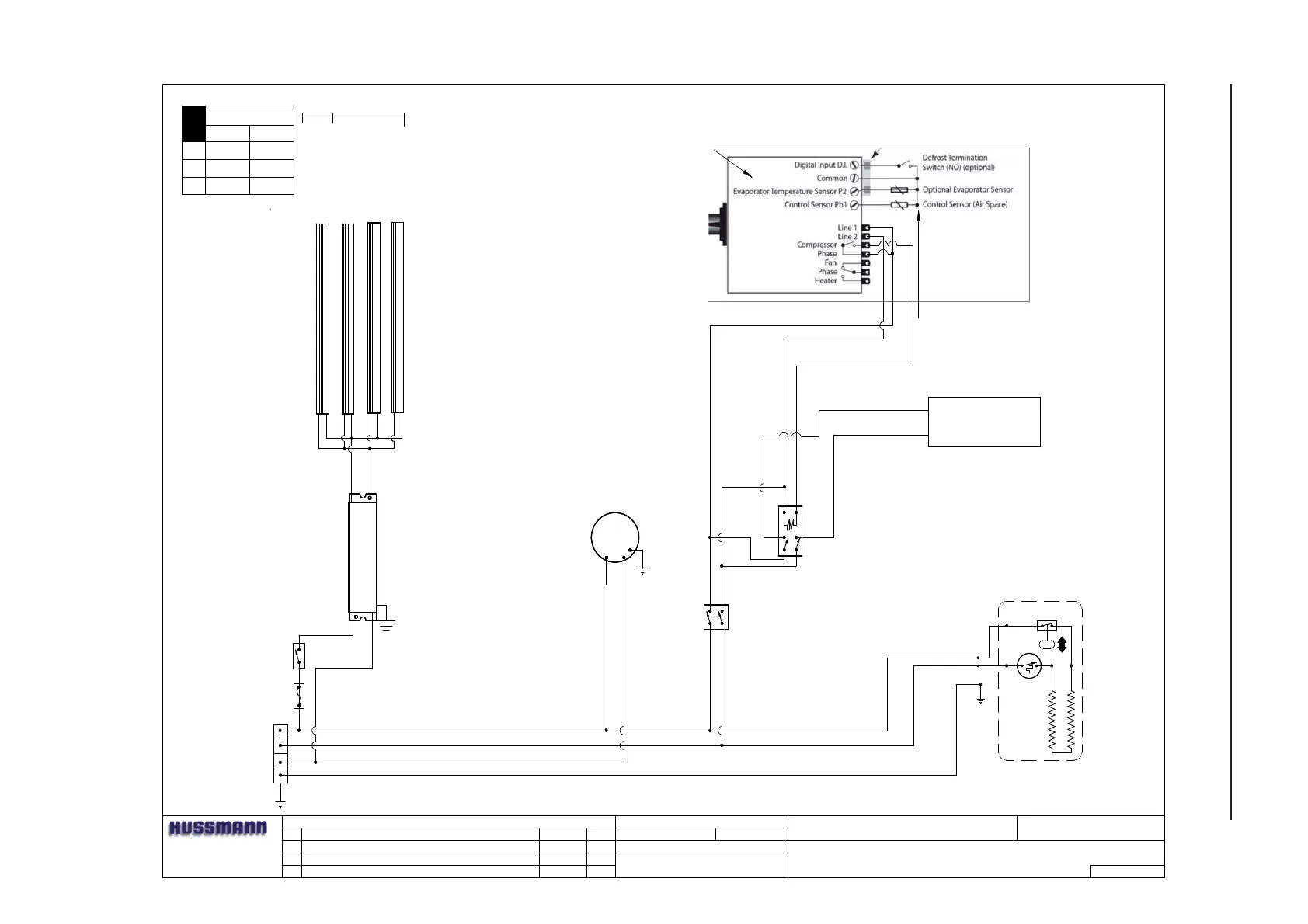

DIAGRAM-IM-04-I4-S W/LED LIGHTS
BUNDLE
ORANGE
M
EVAPORATOR FAN
12W 0.30A @ 120VAC
0477655
LIGHT SWITCH
125-01-0307
CONDENSING UNIT
COPELAND®
M4FF-0075-CAV-212
R404A
1H21855
CONDENSING UNIT
RLA= 6.8 A
LRA= 33.7A
MCC= 9.7A
L2
L1
G
SWITCH
SQUARE "D" 55447
125-01-0271
RELAY TYCO
T92P7A22-277
1804241
L2
L1
L1
L2
EVAPORATOR PAN
1500W 6.25A @ ~ 240 VAC
1H95137550
L2
L1
N
L1
N
L1
BUNDLE
BROWN
SAFE NET III CONTROLER
PART# 1H59048001
SAFE NET III SENSORS
PART# 0510533 (4m long) black pb1
AIR
PART# 0510532 (4m long) Yellow pb2
COIL
M
15A
15 AMP FUSE
125-01-8604
FUSE HOLDER
125-01-8605
L2
Black 10 G.
Red 10 G.
White 14 G.
Green 10 G.
CANOPY
3500K-4' L.E.D. LIGHT 4441591
RED +
BLUE -
LIGHT CIRCUIT (INPUT)
48W 0.44A @ 120VAC
PROGRAM: 1H59684
LED DRIVER
SHELVES
3500K-4' L.E.D. LIGHT 4441591
3500K-4' L.E.D. LIGHT 4441591 3500K-4' L.E.D. LIGHT 4441591
G
L2
L1
N
TERMINAL BLOCK
125-01-0295
CIRCUIT #1
SAFETY
SWITCH
FLOAT SWITCH
CIRCUIT #1
NOTE: CASE MUST
BE GROUNDED
13.8
13.1
12.0
11.4
L1
L2
208 V 240V
LOADING
Wiring Diagrams (Cont'd)
