2.7. How to change the CCD camera
The procedures for changing a camera are as followings.
A. Remove all subassemblies that are the side cover, the lens table and the lower
cover and the CCD cover etc.
B. Loose the Base Screw I and then take out the old CCD assembly.
C. Detach the protective seal from the new CCD.
D. Place the new CCD in its position. Lift it up as much as you can. But Be careful not
to collide with the bone metal.

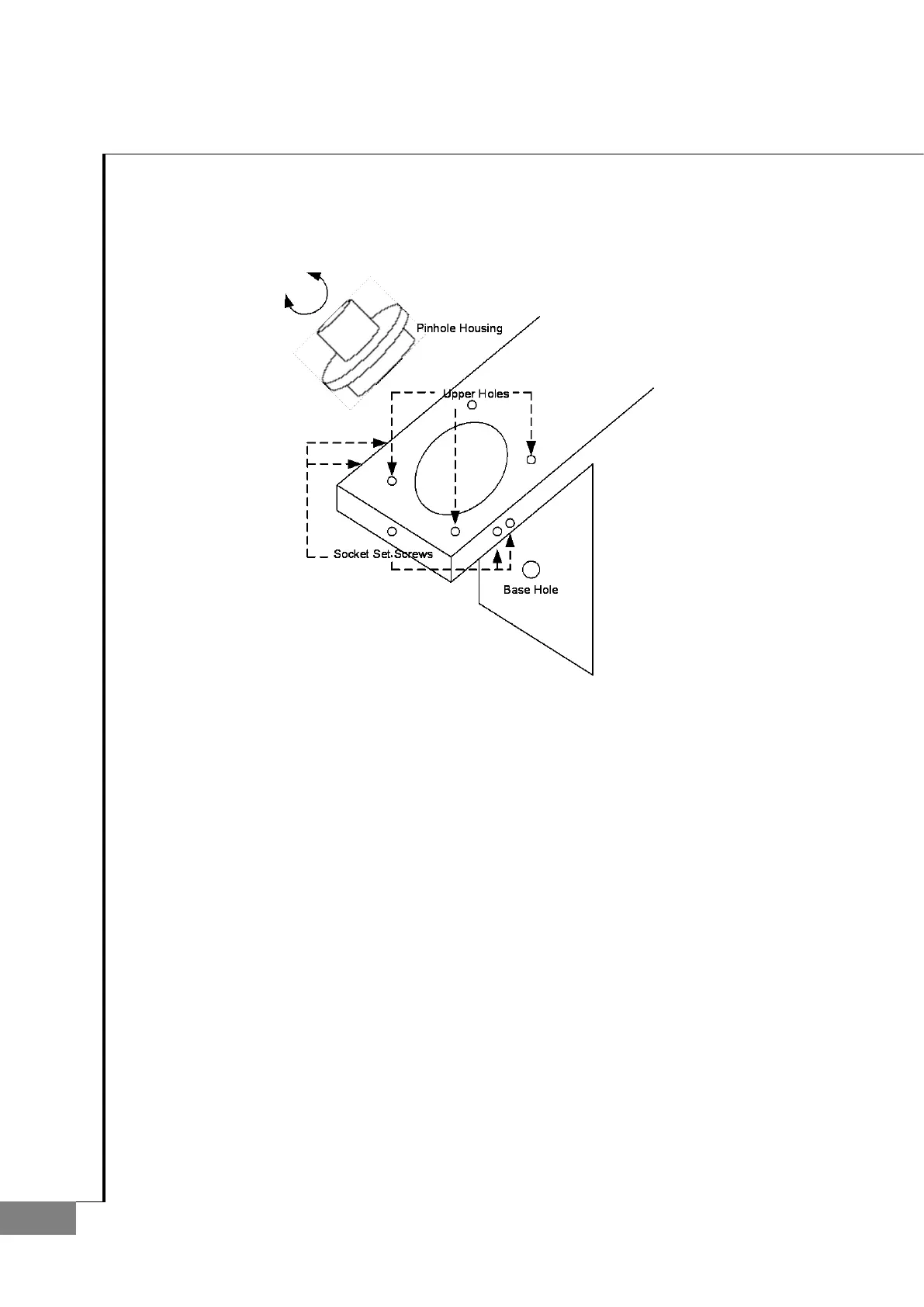

E. Fasten the Base Screw I into Base Hole.
F. Loose CMOS Camera Screw I and CMOS Camera Screw II a little.
G. Turn on the machine as the setup mode and then press the ‘LENS’ (Key 1) button
for a while to go into the Calibration page.
H. Press the first ‘ALIGN’ button to check the CMOS Camera position continuously.
