2.8. How to change the LED Assembly
The spare part for the LED assembly is the Upper Frame. So, we provide all upper
frame assembly for the LED assembly.
The procedures for changing the upper frame Assembly are as followings:
A. Remove the Side Cover, Front Upper Cover and Upper Frame.
B. Place the new Upper Frame and fasten it.
C. Assemble the Front Upper Cover and the Side Cover again.
D. You must execute all procedures for the calibration that are described in from the
section 2.2 to section 2.6.

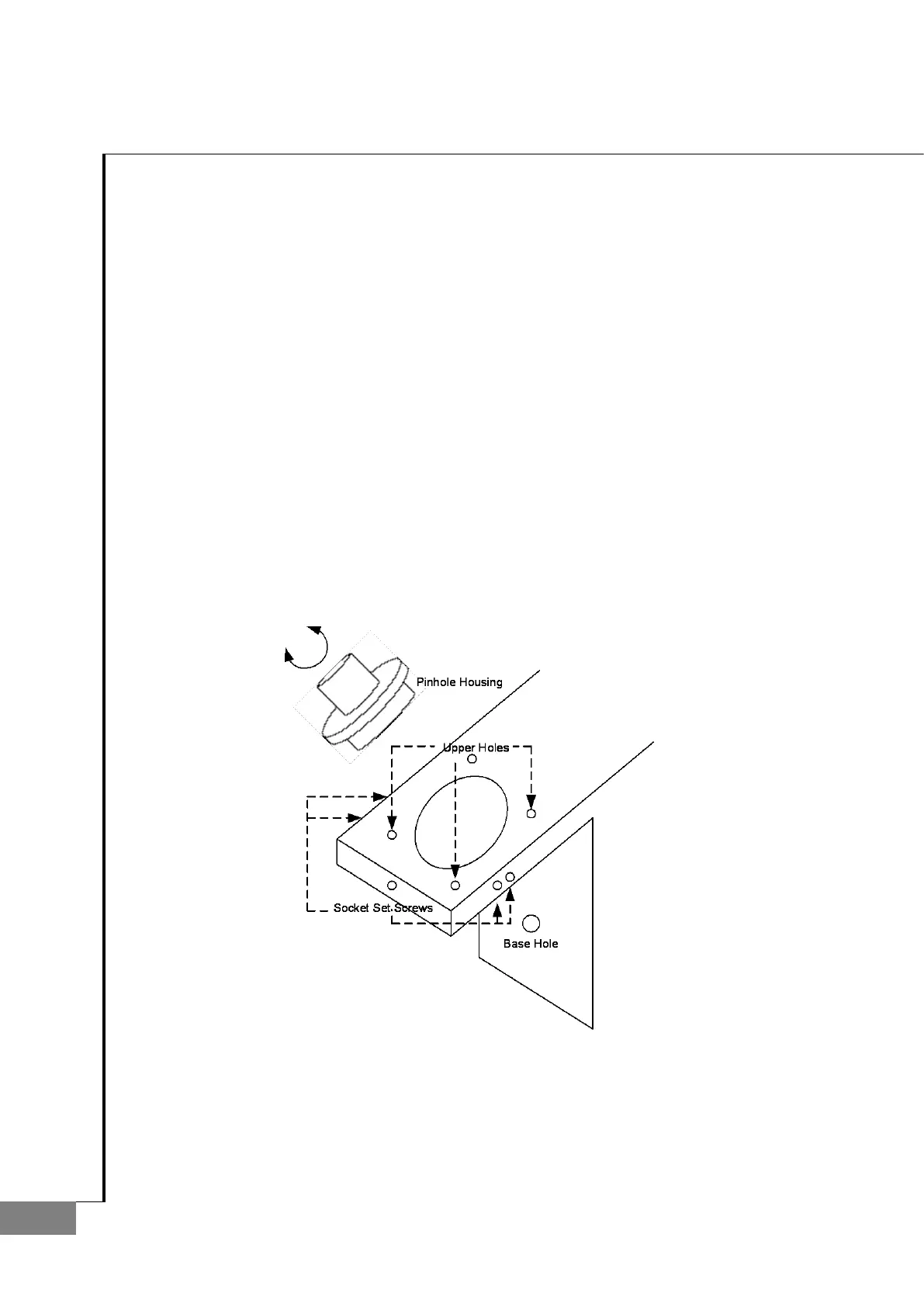

2.9. How to change the Pinhole Housing
The procedures for changing the Pinhole Housing are as followings:
1. Take out the Lens Supporter.
2. Remove the Pinhole Housing Cover which is the below cover under the Lens Supporter.
This is stuck with soft glue. Therefore we need to lift up smoothly.
