Hycomp Ambient - Page 24

24
G212 Series:
No. of Packings: 2 Upper
1 Lower
Pressure side: Bottom
Vent Pressure: ≥ Atmospheric
> Suction
Maximum Inlet Pressure: 10 psig
Minimum Inlet Pressure: 0 psig
G222 Series:
No. of Packings: 2 Upper
2 Lower
Pressure side: Bottom
Vent Pressure: ≥ Atmospheric
> Suction
Maximum Inlet Pressure: 10 psig
Minimum Inlet Pressure: 0 psig
Note: Tighter gas control
G322 Series:
No. of Packings: 3 Upper
2 Lower
Pressure side: Bottom
Vent Pressure: ≥ Atmospheric
> Suction
Maximum Inlet Pressure: 10 psig
Minimum Inlet Pressure: 0 psig
Note: Tightest gas control
1/8” NPT Vent ports must be plumbed to safe
vent location, purged, or padded.
1/8” NPT Vent ports must be plumbed to safe
vent location, purged, or padded.
1/8” NPT Vent ports must be plumbed to safe
vent location, purged, or padded.

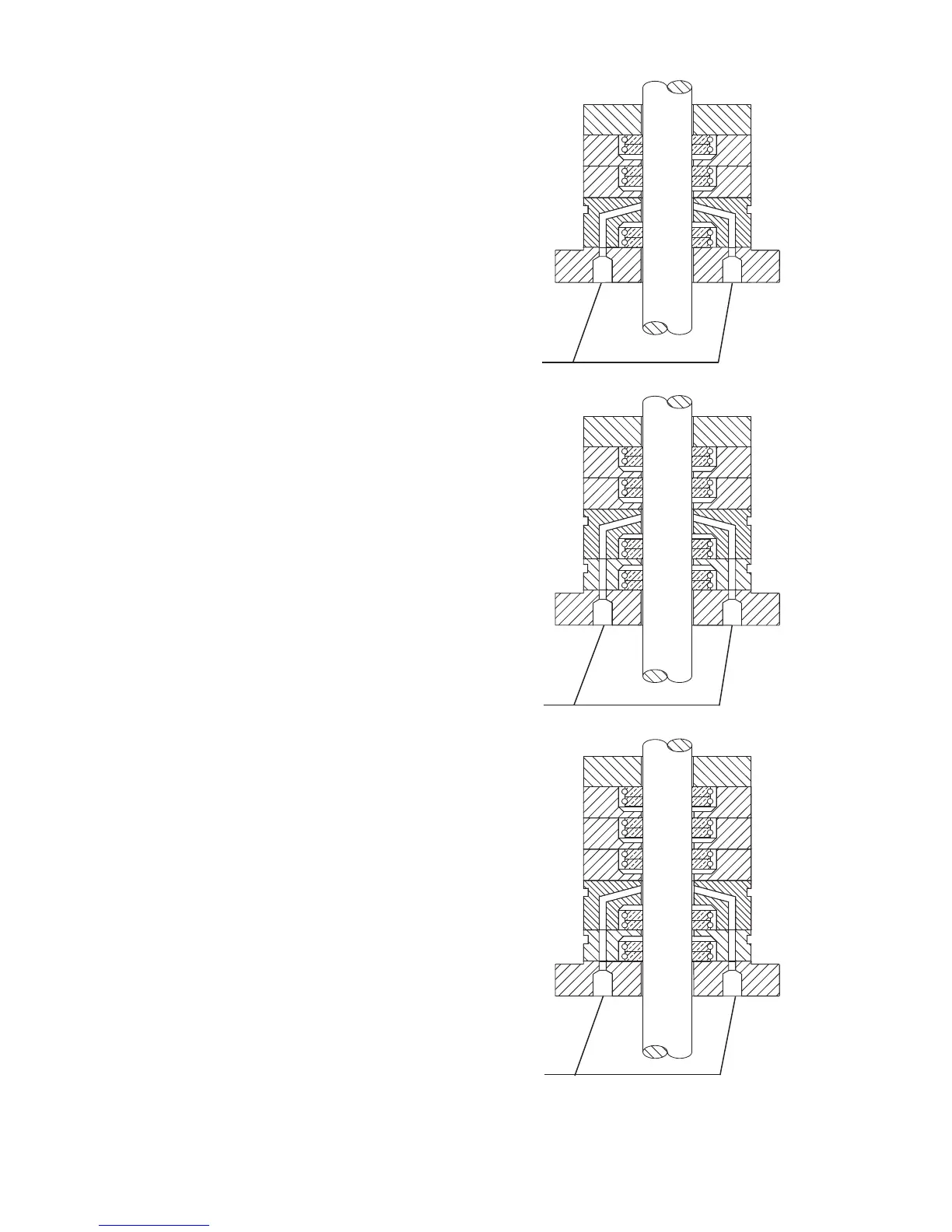

Figure 17: Gas Packing Arrangements for ‘G’ Series Gas Compressors (Cont’d)
