Hycontrol REFLEX User Manual

Appendix 1
Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 50
Transducer Mounting
An isolation kit is provided with each transducer to minimise any ringing transmitted through
the mounting structure.
The transducer must be mounted perpendicular to any liquid surface being monitored, but on
solids use the aiming kit and point towards the draw off position. Ideally, at least 0.5 metres
above the full point.
The transducer has a 10° inclusive conical beam angle at 3dB and must be mounted with a
clear unobstructed sight of the material to be measured over the complete measurement range.
The transducer is provided with integral cable which can be extended up to 300 metres using
a suitable junction box and RG62AU cable. The temperature compensated version of the
RXV15 (which is called RXT15) transducer requires an additional single core screen
extension as shown below.
Transducer cables and temperature compensation cables can be run together but should be
separated from power cables by at least 150mm and preferably installed in their own earthed
steel conduit.

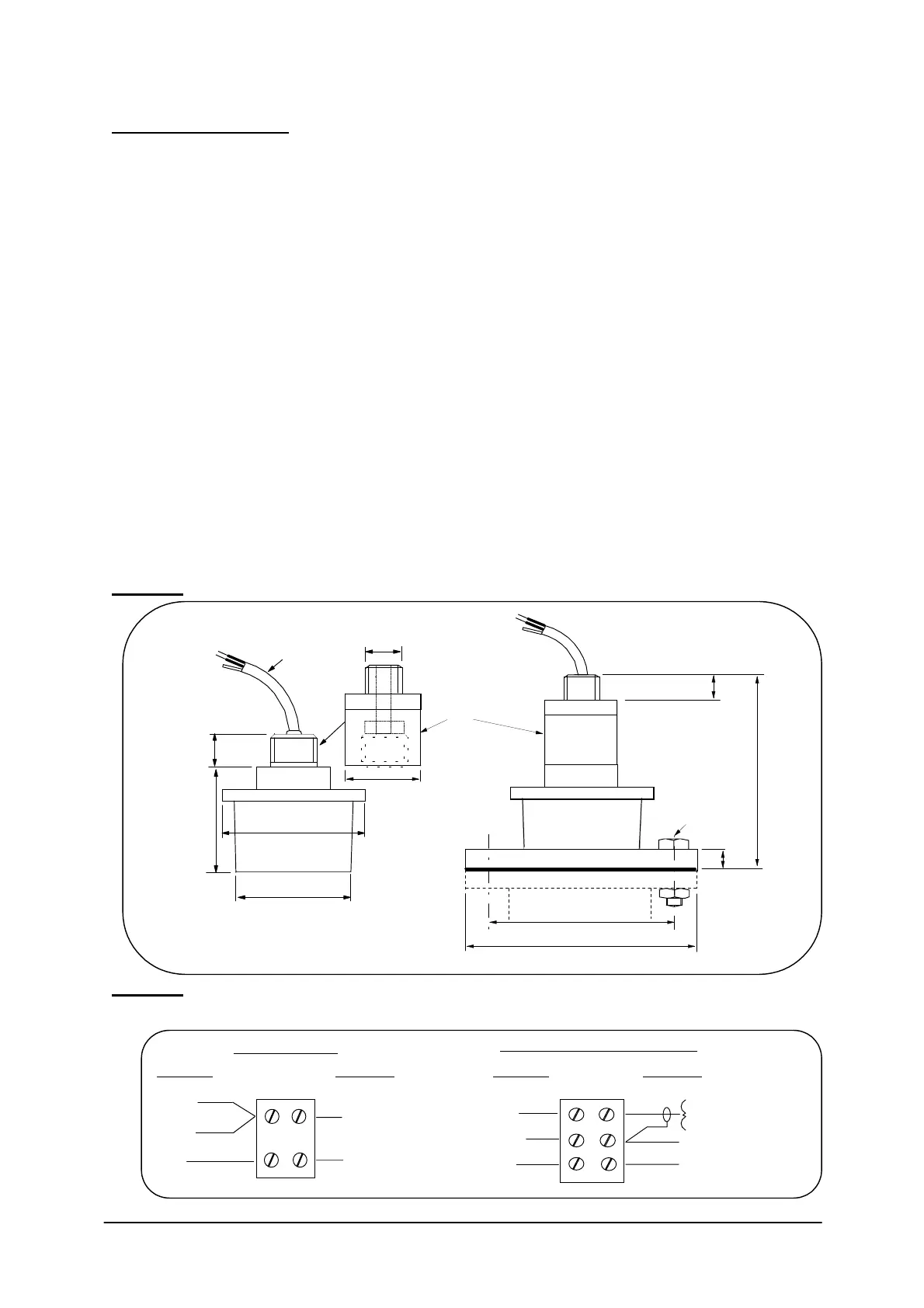

Figure 2. Dimensions of RXV15 and RXT15 Series
Figure 3.
20
170
Isolation Kit
Fit as shown
20
21
72
100
10m cable
6.9 dia
50
M20 x 1.5
95
Dia to suit flange selected
No. & size of bolts
to suit flange selected
Bolt hole PCD to suit
flange selected
Junction
Screen - Term 19
Standard Transducer
Transceiver
Core - Term 20
Transducer
Black
Screen
Blue
RG62AU
Temperature Compensation Transducer
RG62AU
Blue
Junction
Core - Term.22
Screen - Term.19
Core - Term. 20
Screen - Term.19
TransceiverTransducer
Black
Screen
