Hycontrol REFLEX User Manual

Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 27
Volume Conversion

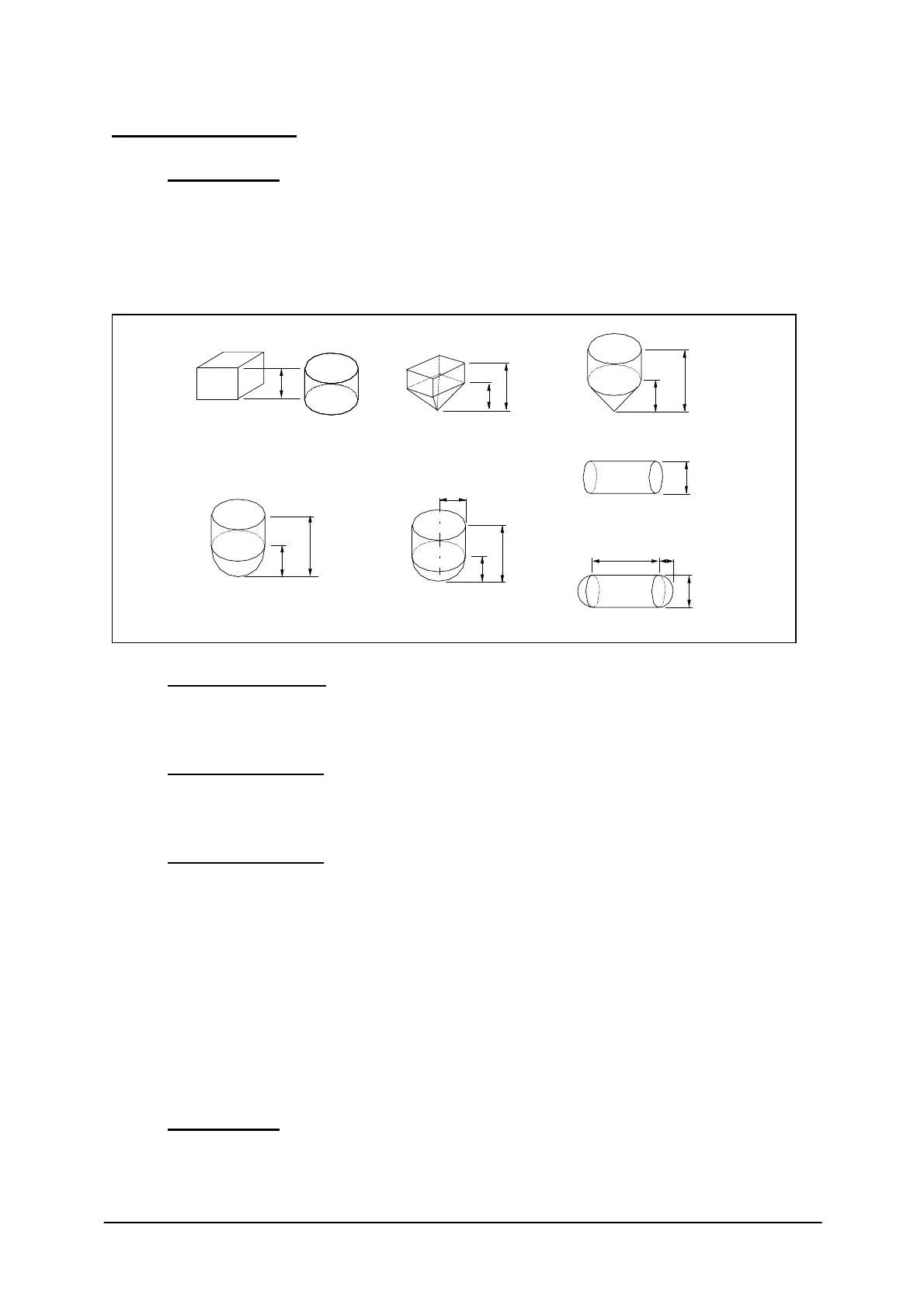

Pr.40 Vessel Shape (Define for each point) (D=0)
'0' = no volume conversion
1 = flat bottomed vessel and percentage of span
2 - 7 = standard shapes as shown below
8 = vessel linearisation (see Pr.44)
FLAT BOTTOM OR PERCENTAGE.
Pr.5
ENTER 1
ENTER 6
H
L
PARABOLIC BOTTOM.
ENTER 5
Pr.5
CONICAL BOTTOM
ENTER 3
H
Pr.5
Pr.5
FLAT ENDS.
H
PARABOLIC ENDS.
ENTER 7
L
Pr.5
HALF SPHERE BOTTOM.
ENTER 4
H
Pr.5
PYRAMID BOTTOM
ENTER 2
Pr.4Pr.5
H
Pr.41 Vessel Dimension H (Define for each point) (D=0.00)
Enter H where indicated above in units selected at Pr.3.
Pr.42 Vessel Dimension L (Define for each point) (D=0.00)
Enter L where indicated above in units selected at Pr.3
Pr. 43 Display Conversion (Define for each point) (D=1.00)
If Pr.40 entry is between 1 - 8 then enter - full scale display ÷ 100
e.g. if 100% = 2000 litres and display is required in litres then
set Pr.43 to (2000 ÷ 100) = 20.
To display in any unit enter any value from '0.001' to '9999'
NOTE: Display cannot be more than 4 digits. If full scale is 20,000
litres, then display in thousands of litres by dividing
20 by 100 = 0.2.
Pr.44 Linearisation (Applicable only to single point systems) (D= '====')
This function allows non-standard vessels to be characterised. For full details please refer to
Appendix 3, Pages 68 to 70.
