Appendix 1
Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 55

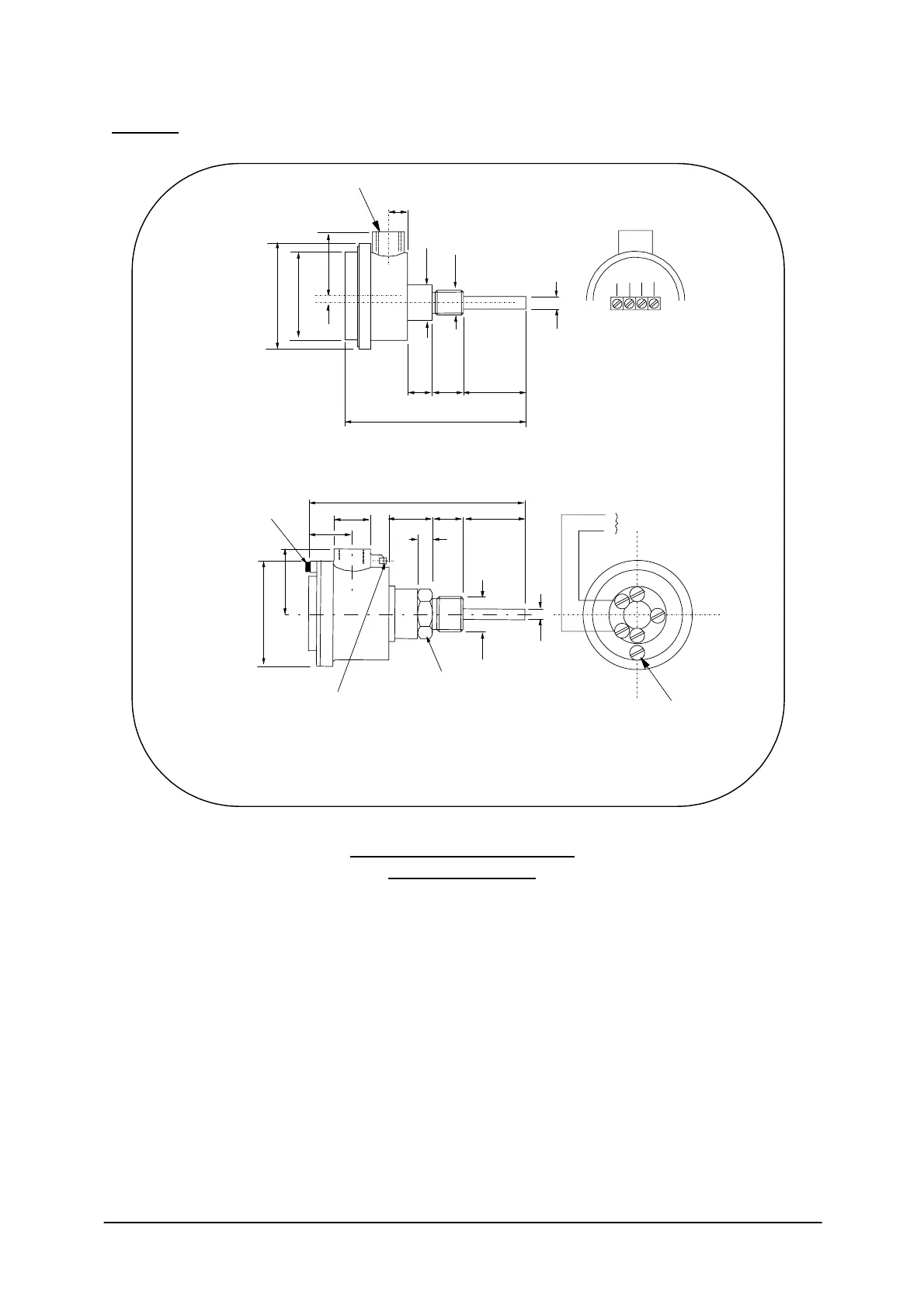

Figure 8
TEMPERATURE SENSOR
SPECIFICATION
In applications where high accuracy is needed with varying temperatures, a temperature
sensor will be required; the error without this will be 0.17% of reading, per degree centigrade
change but is reduced to 0.017% of reading with sensor fitted.
Three sensors are available:-
a) Integral - With RXV15 family transducers as standard.
b) RTS-2 - General purpose IP65 Polycarbonate enclosure and
stainless steel probe.
c) RTS-2B - Cast iron IP65 enclosure and stainless steel probe.
Certified to EExeIIT6 for Zones 1 & 2
These sensors should not be used for process temperature measurement or control.
35
TEMPERATURE SENSOR RTS 2B
175
25
34 ref
3/4" BSPP
-
12
50
INTERNAL
EARTH
UNIMPORTANT
+ POLARITY
85 dia
LOCK
SCREW
9 dia
33 HEX
HOUSING: CAST IRON BLACK EPOXY PAINT
CLASSIFICATION EEx e II T6/IP 65
PROBE: 316ST. STEEL
52
30 dia
EXTERNAL
EARTH
15
28 DIA
M20 x 1.5
10 DIA
20 25 50
M20 x 1.5
BLUE
N/C
RED
TERMINALS
(VIEWED ON TOP)
HOUSING: POLYCARBONATE
PROBE:316 SS
5 REF
150
TEMPERATURE SENSOR RTS 2
85 DIA
53
72 DIA
