Hycontrol REFLEX - Appendix 2; Reflex;Scanflex Controller Description

Appendix 1
Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 54

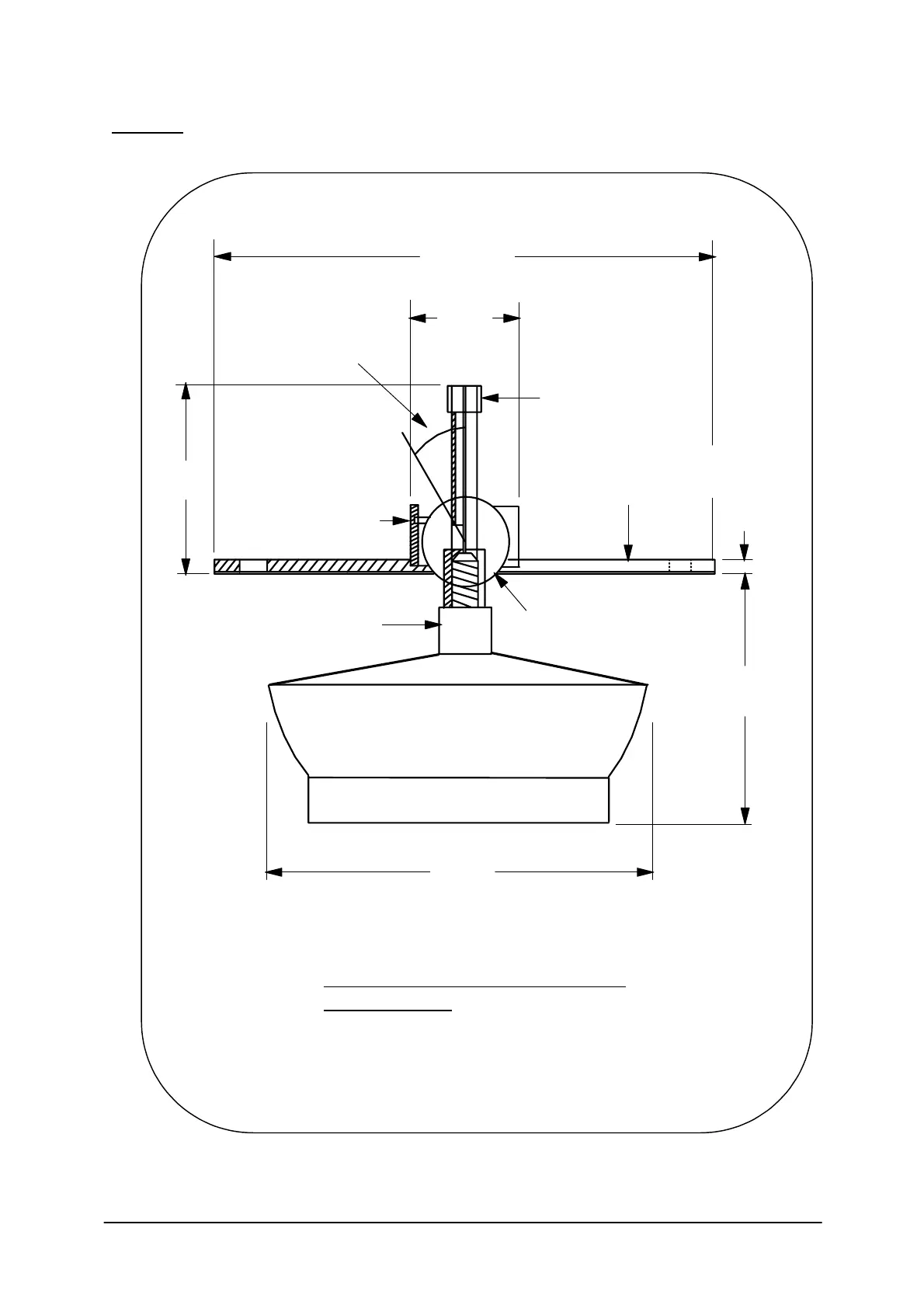

Figure 7.
280 dia
200
mm
20 deg,
omnidirectional
adjustment
6 off locking screws
M20 steel coupler
PVC flange. 12 holes 25 dia.
equispaced on 362 pcd
20 mm
406 dia
92 dia
PVC sphere
Isolation kit AK3730-ER
180
mm
ROTATIONAL AIMING KIT (RAK-ER)
FOR RXM19ER
