Hycontrol REFLEX - Figure 6: Rotational Aiming Kit Dimensions; Figure 7: Rotational Aiming Kit (RAK-ER) Dimensions; Temperature Sensor Specification

Appendix 1
Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 53

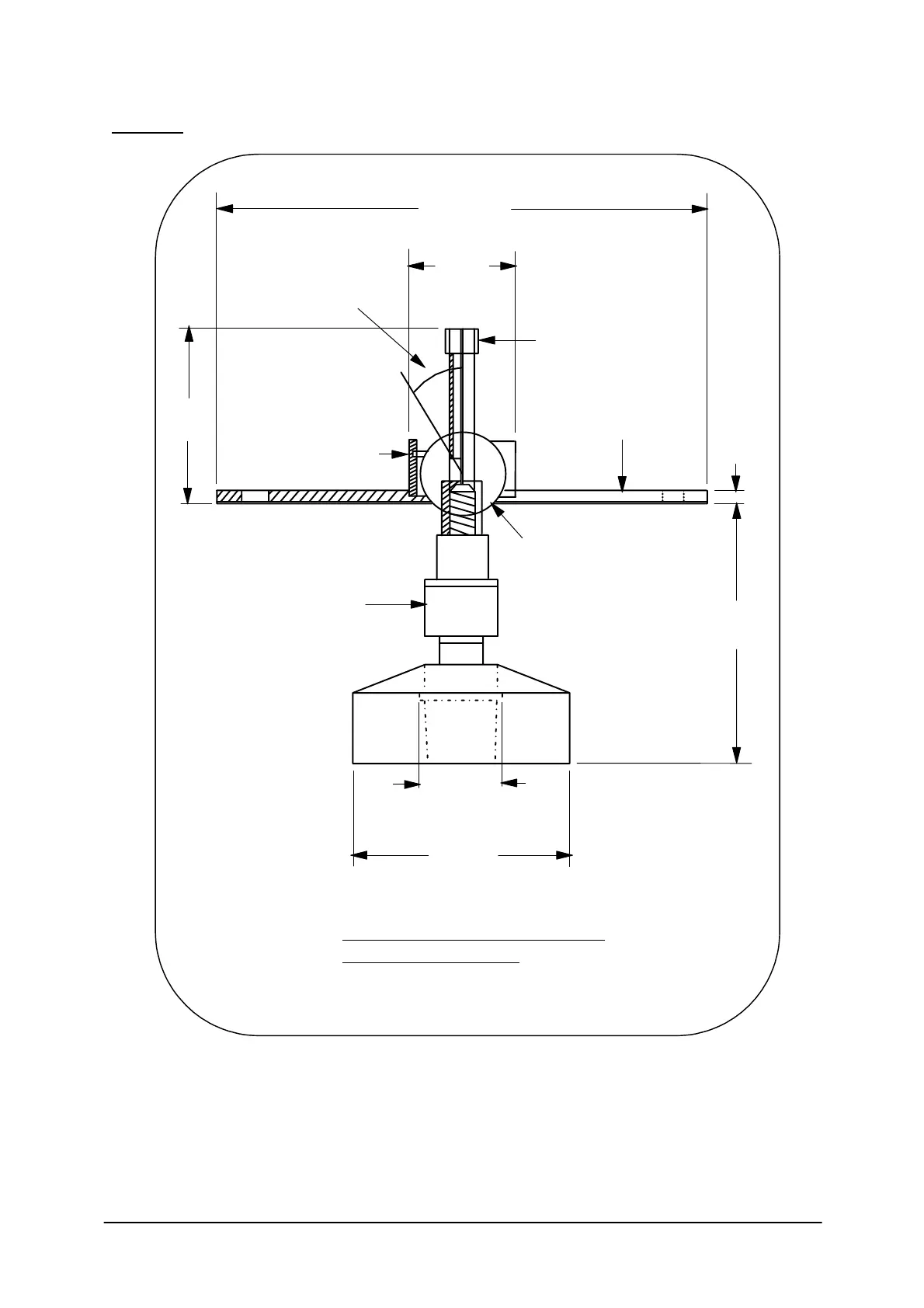

Figure 6.
200 dia
RXM19
20 degree
omnidirectional
adjustment
3 off locking screws
M20 steel coupler
PVC flange. 8 holes 22 dia.
equispaced on 298 pcd
343 dia
92 dia
PVC sphere
95 dia
RXV15
Isolation kit
AK3730
180
mm
ROTATIONAL AIMING KIT (RAK)
FOR RXV15 & RXM19
160
mm
20
mm
