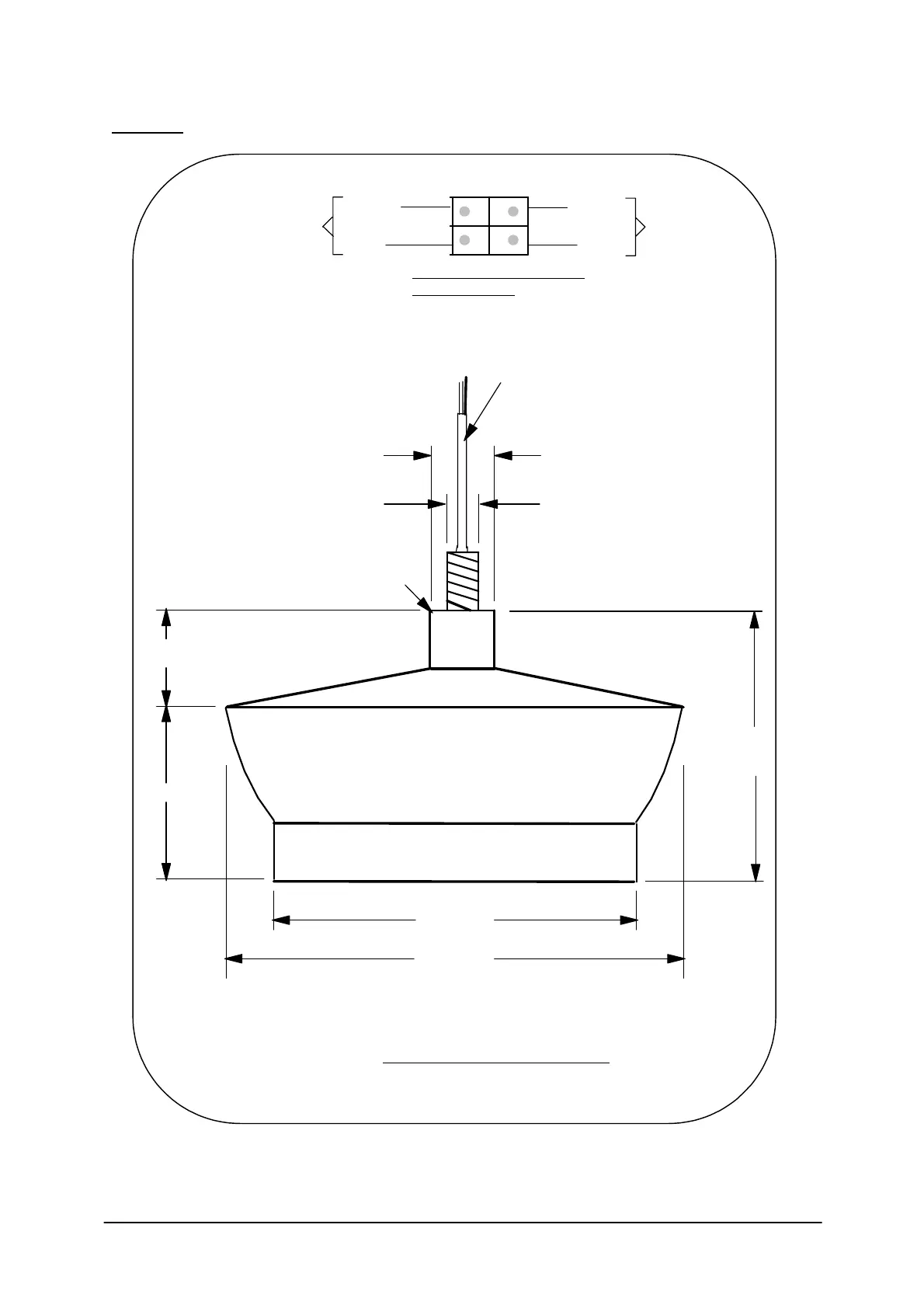

Hycontrol REFLEX - Figure 5: RXM19 ER Transducer Dimensions

Appendix 1
Ref: REFLEX/SCANFLEX MANUAL
EDITION 1: JULY ’97 52
Figure 5.
280 dia
240 dia
M20 x 1.5
50 dia
RXM19ER TRANSDUCER
1.5M CABLE SINGLE
CORE SCREENED
Isolation kit
AK3730-ER
SCREEN
CORE
CORE
RG62AU TO
CONTROLLER OR
MULTIPLEXOR
TRANSDUCER
EXTEND CABLE AS ABOVE
AS NECESSARY
50
110
185
mm
SCREEN
