3.9

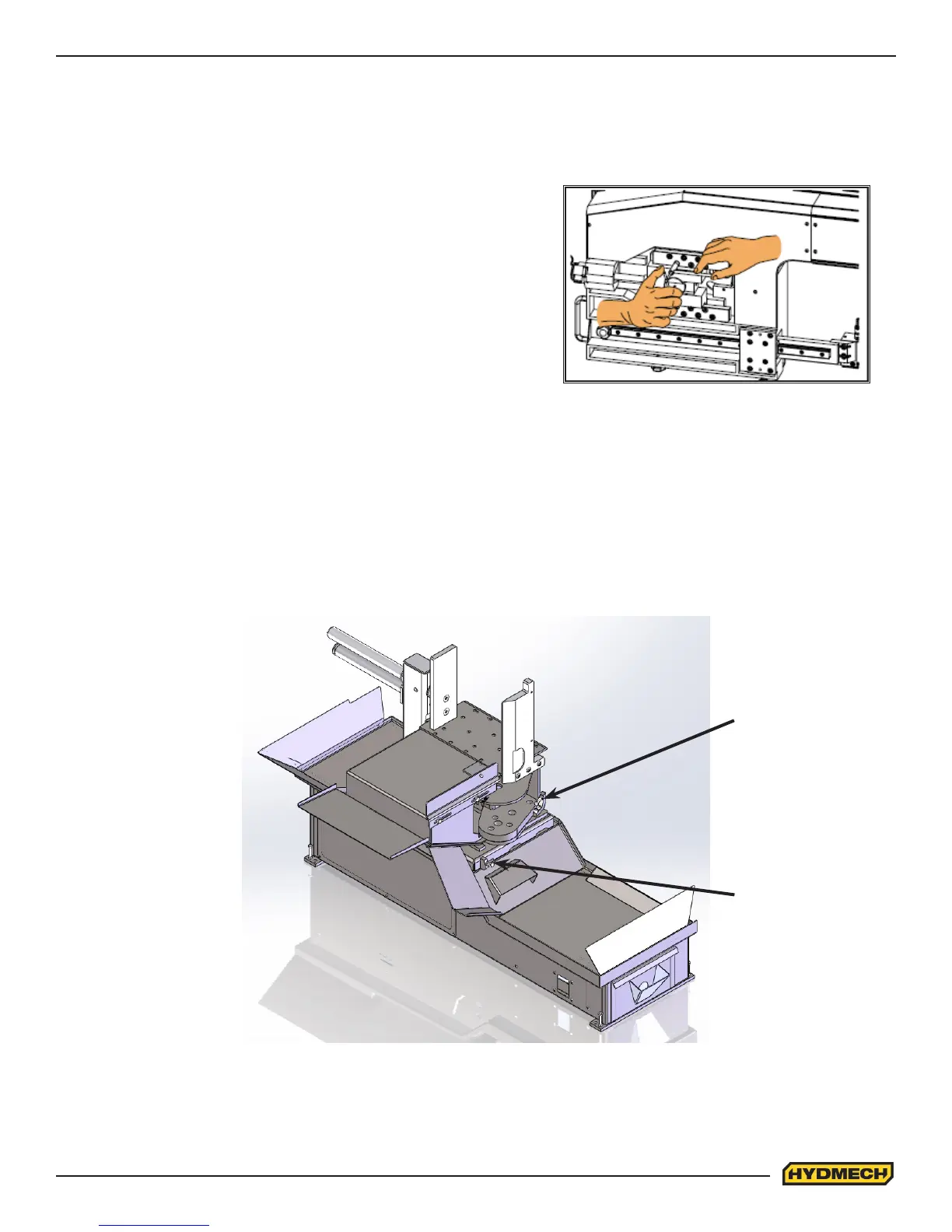

BLADE TENSION SLIDE ADJUSTMENT
To reduce the play, which may develop over time between the blade tensioner slide and slide gibs, adjust the screws be-
tween the gibs and slide as follows:
1. Remove the head front cover.
2. Undo blade tension.
3. Remove blade from wheels.
4. Remove the pin connecting tensioner actuator with slider.
5. Move the slider by hand back and forth to locate any friction or
excessive play.
6. Loosen the nuts, using tubular nut driver while holding the set
screws rm with Allen key.
7. Tighten the set screws to take up any play or loosen them up in
case of excessive friction.
8. Retighten the nuts with tubular nut drive.
90 AND 30 DEGREE STOP ADJUSTMENT
There are two adjustable mechanical stops for 90 degree and 30 degree head swing position that can be recalibrated if
required.
90 Degree Stop
30 Degree Stop
