3.10
LUBRICATION
The S23A was designed to minimize the maintenance requirements. Moving assemblies and contact faces need lubrica-
tion on a regular schedule whether they are in heavy use or not. The lubrication requirements of the S23A are primar-
ily the saw pivot points and shuttle assembly which are equipped with grease ttings, and metal to metal surfaces that
require lubrication to prevent wear and seizure.
It is recommended to use LPS ThermaPex Hi-Load bearing Grease manufactured by LPS Laboratories or equivalent, for
lubrication of the shuttle assembly. For other points of lubrication general purpose grease is sucient.
The lubricant should be applied as frequently as required. Main lubrication points are indicated on the following pictures.

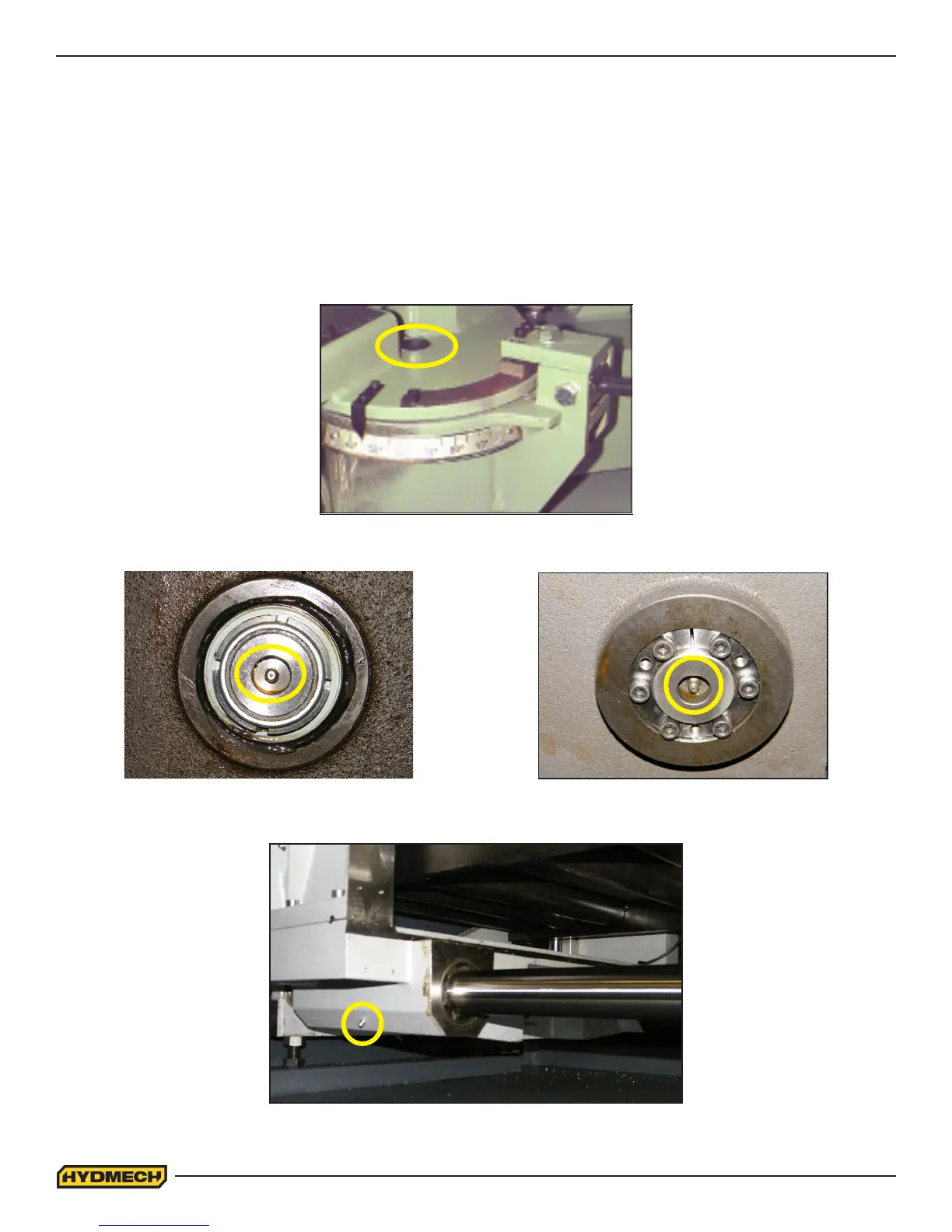

Swivel Pivot
Drive Wheel Shaft Grease Nipple
Idler Wheel Shaft Grease Nipple
Shuttle (2)
