Unit dimensions

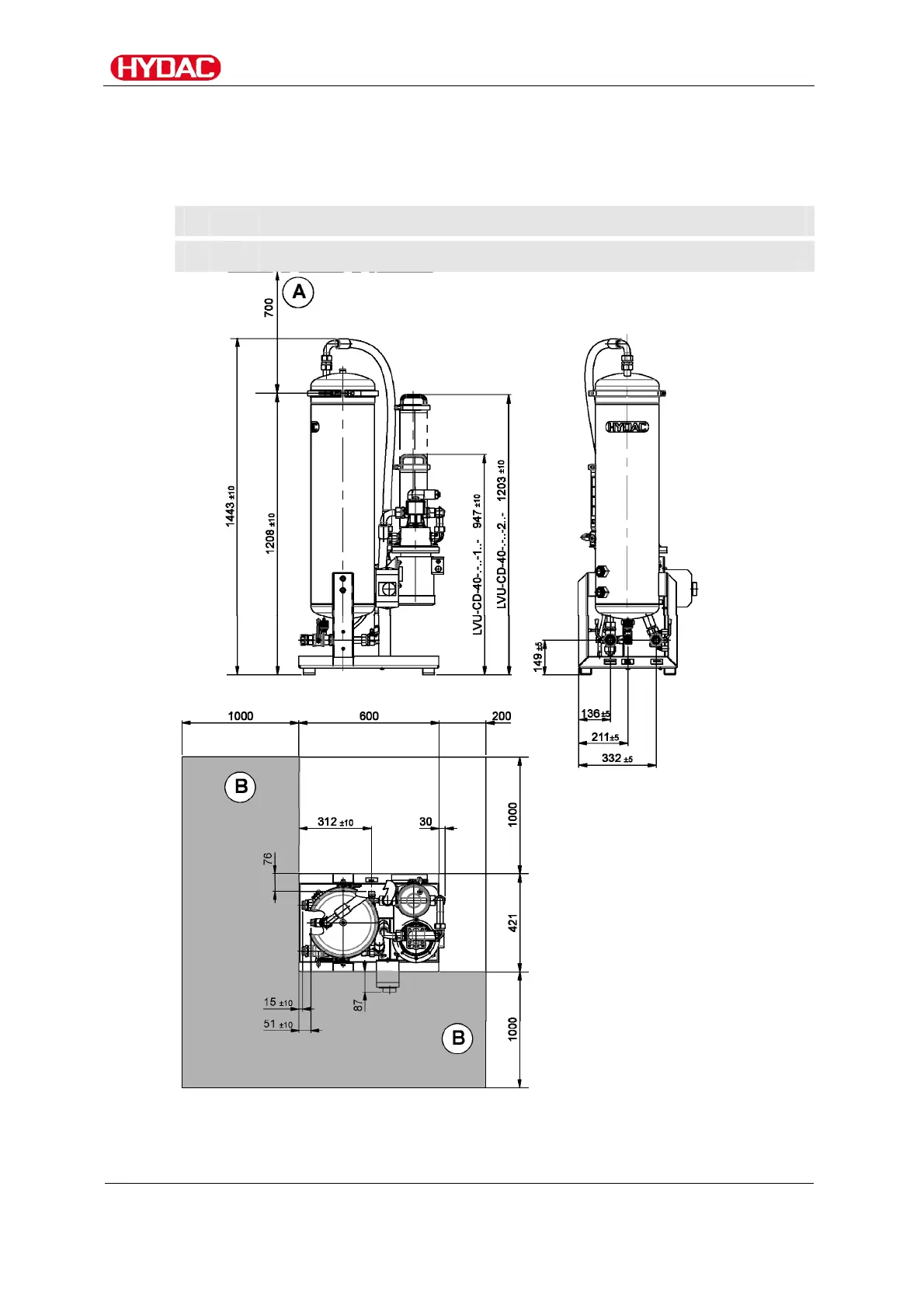

The unit has the following dimensions, using the Eco version as an example:
A = Required dismantling space for changing the coalescing elements
B = Recommended working range
All dimensions in mm.
