BeWa LVU-CD-40 4035823a en-us 2016-01-08.doc 2016-01-08
Hydraulic diagram

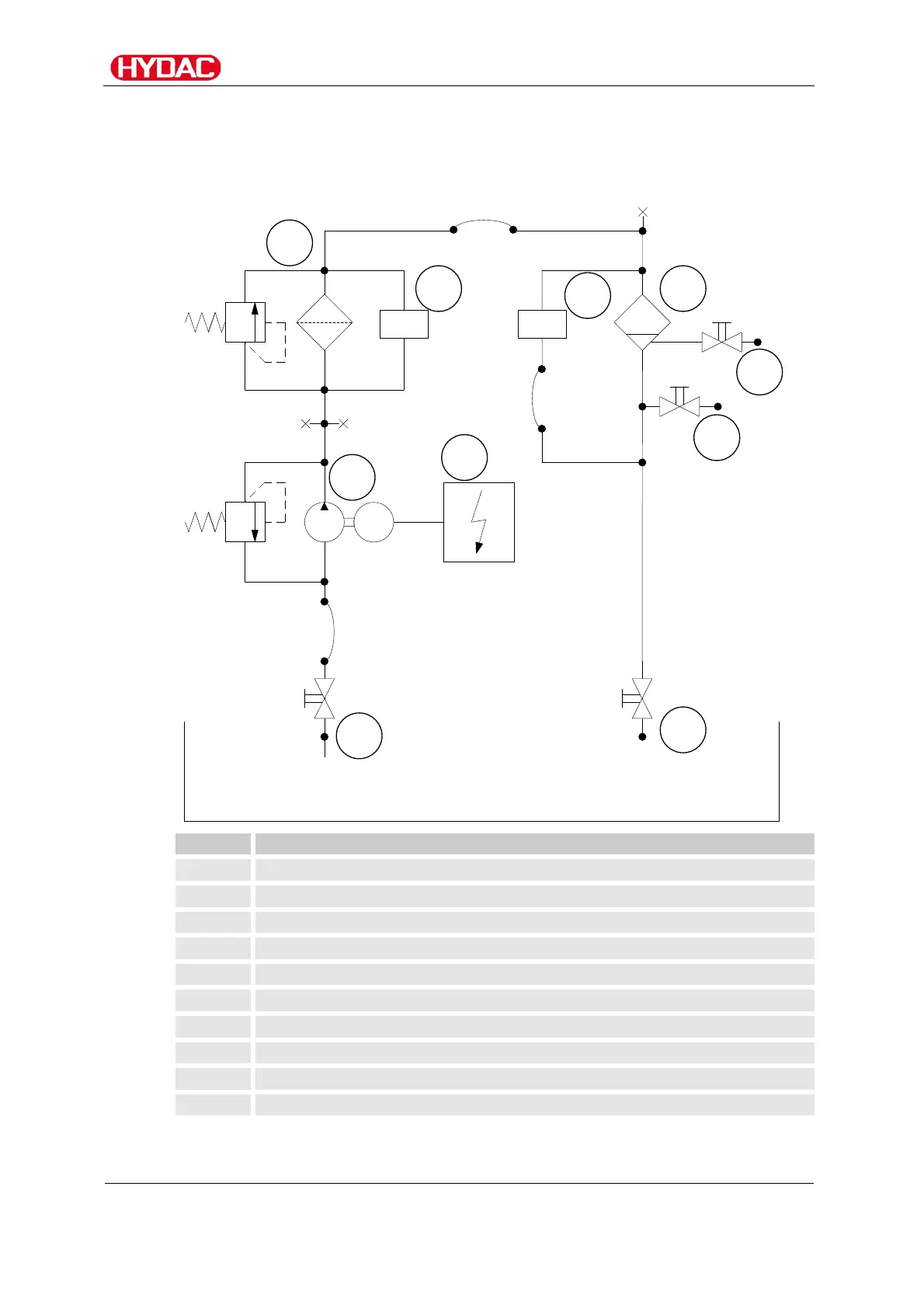

The unit has the following hydraulic circuit:
M
200
100
4000
5000
2000
3210
3350
1330
2560
7000
Item Designation
100 Clogging indicator, visual, for the filter housing
200 Clogging indicator, visual, for the coalescing housing
1330 Inlet
2000 Coalescing housing
2560 Outlet
3210 Water drain
3350 Emptying, coalescing housing
4000 Motor pump assembly
5000 Filter housing (pre-filter)
7000 Main switch with motor protection
