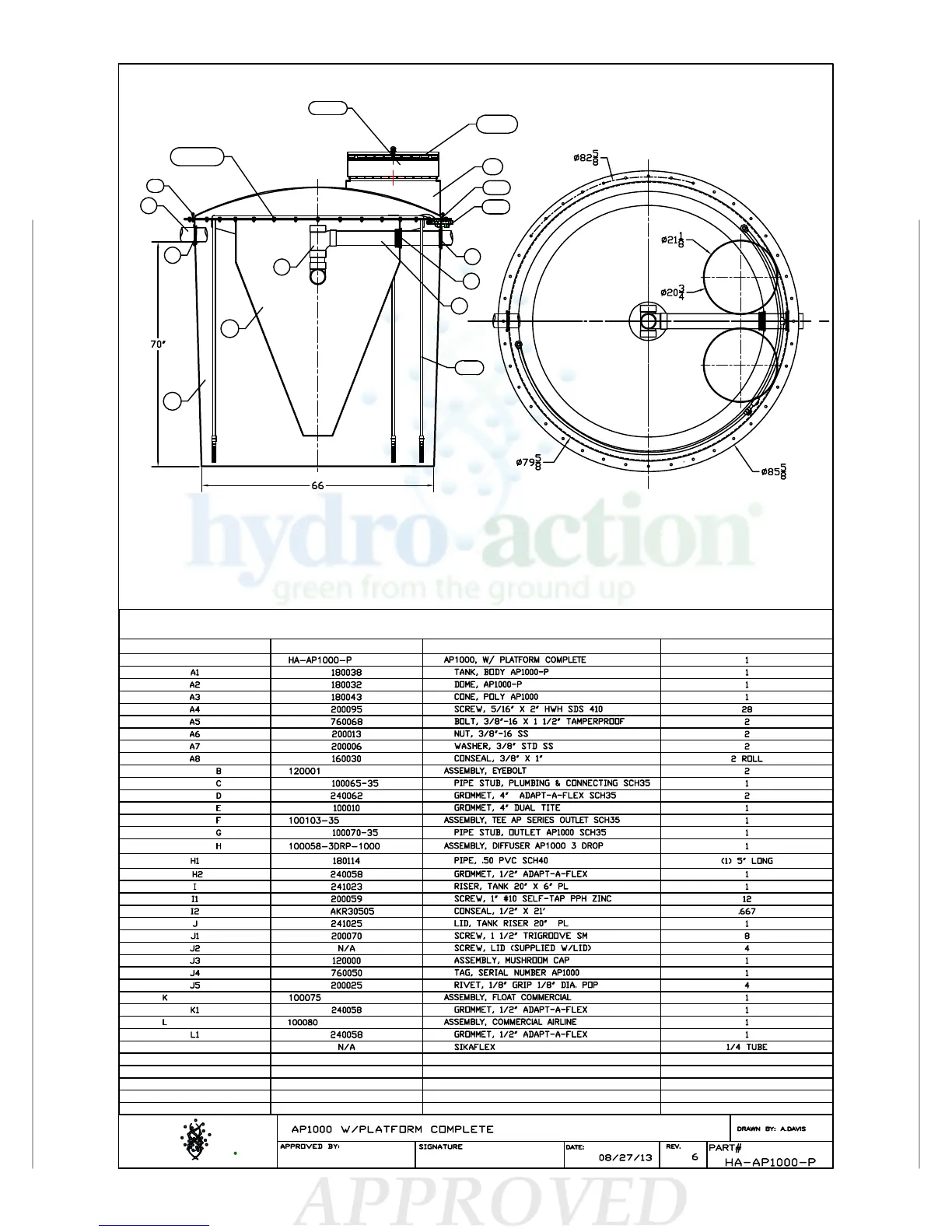

Hydro Action AP-500 - Bill of Materials for AP1000

APPROVED
HA-AP1000-P
AP1000, W/ PLATFORM COMPLETE
1
A1
180038
TANK, BODY AP1000-P
1
A2
180032
DOME, AP1000-P
1
A3
180043
CONE, POLY AP1000
1
A4
200095
SCREW, 5/16" X 2" HWH SDS 410
28
A5
760068
BOLT, 3/8"-16 X 1 1/2" TAMPERPROOF
2
A6
200013
NUT, 3/8"-16 SS
2
A7
200006
WASHER, 3/8" STD SS
2
A8
160030
CONSEAL, 3/8" X 1"
2 ROLL
B
120001
ASSEMBLY, EYEBOLT
2
C
100065-35
PIPE STUB, PLUMBING & CONNECTING SCH35
1
D
240062
GROMMET, 4" ADAPT-A-FLEX SCH35
2
E
100010
GROMMET, 4" DUAL TITE
1
F
100103-35
ASSEMBLY, TEE AP SERIES OUTLET SCH35
1
G
100070-35
PIPE STUB, OUTLET AP1000 SCH35
1
H
100058-3DRP-1000
ASSEMBLY, DIFFUSER AP1000 3 DROP
1
H1
180114
PIPE, .50 PVC SCH40
(1) 5" LONG
H2
240058
GROMMET, 1/2" ADAPT-A-FLEX
1
I
241023
RISER, TANK 20" X 6" PL
1
I1
200059
SCREW, 1" #10 SELF-TAP PPH ZINC
12
I2
AKR30505
CONSEAL, 1/2" X 21'
.667
J
241025
LID, TANK RISER 20" PL
1
J1
200070
SCREW, 1 1/2" TRIGROOVE SM
8
J2
N/A
SCREW, LID (SUPPLIED W/LID)
4
J3
120000
ASSEMBLY, MUSHROOM CAP
1
J4
760050
TAG, SERIAL NUMBER AP1000
1
J5
200025
RIVET, 1/8" GRIP 1/8" DIA. POP
4
K
100075
ASSEMBLY, FLOAT COMMERCIAL
1
K1 240058
GROMMET, 1/2" ADAPT-A-FLEX
1
L
100080
ASSEMBLY, COMMERCIAL AIRLINE
1
L1
240058
GROMMET, 1/2" ADAPT-A-FLEX
1
N/A
SIKAFLEX 1/4 TUBE
DRAWN BY: A.DAVIS
APPROVED BY:
SIGNATURE
REV.
6
PART#
HA-AP1000-P
DATE:
08/27/13
AP1000 W/PLATFORM COMPLETE
66
70"
Ø20
3
4
Ø21
1
8
Ø85
5
8
Ø79
5
8
Ø82
5
8
K
A
A
I
BILL OF MATERIALS
ITEM P/N DESCRIPTION
QTY:
hydro
action
green from the ground up
R
A4-A8
H-H2
J-J5
A2
D
G
E
A1
B
A3
D
C
F
I-I2
K-K1
L-L1
