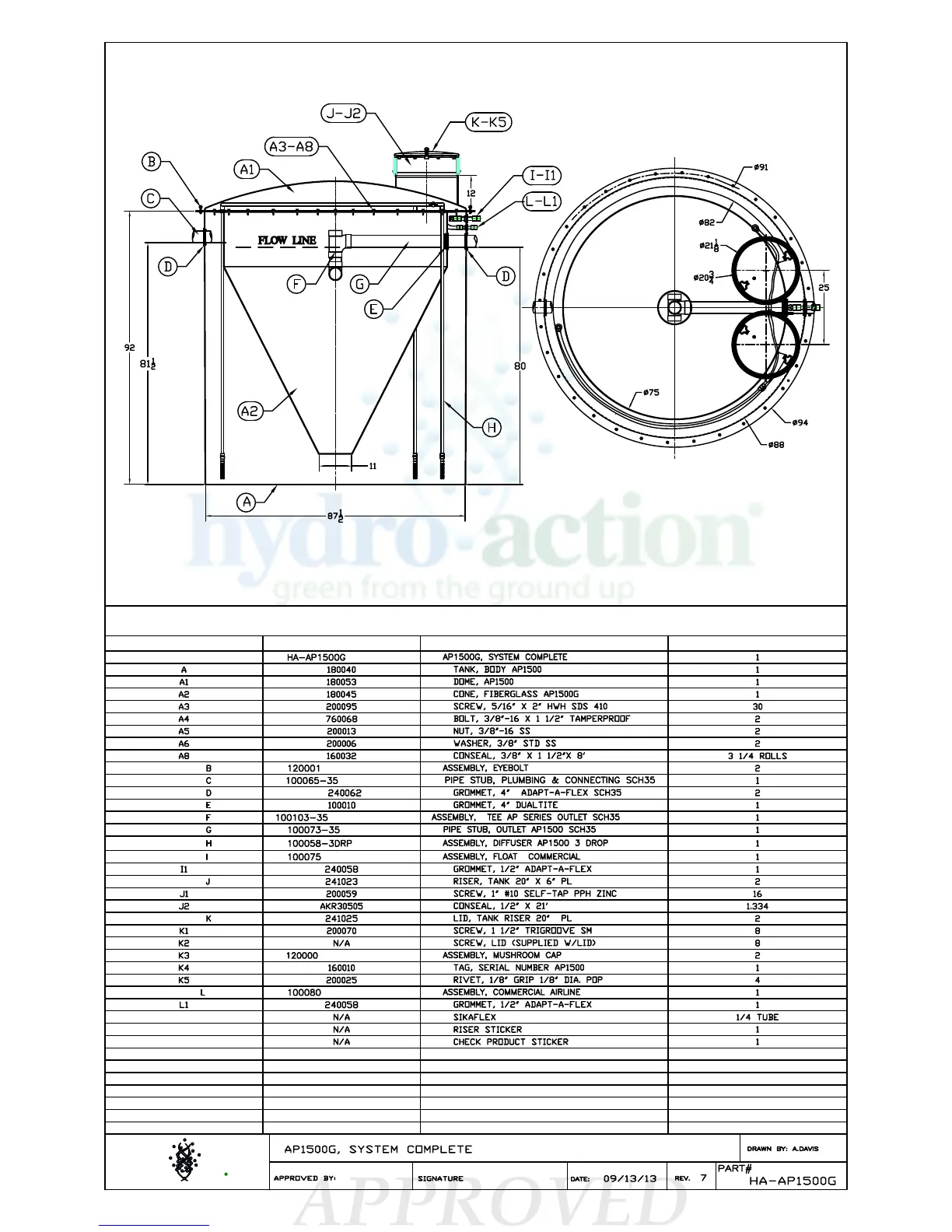

Hydro Action AP-500 - Bill of Materials for AP1500 G

APPROVED
HA-AP1500G
AP1500G, SYSTEM COMPLETE
1
A
180040
TANK, BODY AP1500
1
A1
180053
DOME, AP1500
1
A2
180045
CONE, FIBERGLASS AP1500G
1
A3
200095
SCREW, 5/16" X 2" HWH SDS 410
30
A4
760068
BOLT, 3/8"-16 X 1 1/2" TAMPERPROOF
2
A5
200013
NUT, 3/8"-16 SS
2
A6
200006
WASHER, 3/8" STD SS
2
A8
160032
CONSEAL, 3/8" X 1 1/2"X 8'
3 1/4 ROLLS
B
120001
ASSEMBLY, EYEBOLT
2
C
100065-35
PIPE STUB, PLUMBING & CONNECTING SCH35
1
D
240062
GROMMET, 4" ADAPT-A-FLEX SCH35
2
E
100010
GROMMET, 4" DUALTITE
1
F
100103-35
ASSEMBLY, TEE AP SERIES OUTLET SCH35
1
G
100073-35
PIPE STUB, OUTLET AP1500 SCH35
1
H
100058-3DRP
ASSEMBLY, DIFFUSER AP1500 3 DROP
1
I
100075
ASSEMBLY, FLOAT COMMERCIAL
1
I1
240058
GROMMET, 1/2" ADAPT-A-FLEX
1
J
241023
RISER, TANK 20" X 6" PL
2
J1
200059
SCREW, 1" #10 SELF-TAP PPH ZINC
16
J2
AKR30505
CONSEAL, 1/2" X 21'
1.334
K
241025
LID, TANK RISER 20" PL
2
K1
200070
SCREW, 1 1/2" TRIGROOVE SM
8
K2
N/A
SCREW, LID (SUPPLIED W/LID)
8
K3
120000
ASSEMBLY, MUSHROOM CAP
2
K4
160010
TAG, SERIAL NUMBER AP1500
1
K5
200025
RIVET, 1/8" GRIP 1/8" DIA. POP
4
L
100080
ASSEMBLY, COMMERCIAL AIRLINE
1
L1
240058
GROMMET, 1/2" ADAPT-A-FLEX
1
N/A
SIKAFLEX 1/4 TUBE
N/A
RISER STICKER 1
N/A
CHECK PRODUCT STICKER 1
DRAWN BY: A.DAVIS
APPROVED BY:
SIGNATURE
REV.
7
PART#
HA-AP1500G
DATE:
09/13/13
AP1500G, SYSTEM COMPLETE
Ø20
3
4
Ø21
1
8
25
Ø88
Ø94
Ø91
12
92
87
1
2
Ø82
Ø75
11
80
81
1
2
K
3/4"
A
A
I
FLOW LINE
A1
C
A3-A8
D
D
F G
E
H
I-I1
B
J-J2
K-K5
A2
A
L-L1
BILL OF MATERIALS
ITEM P/N DESCRIPTION
QTY:
hydro
action
green from the ground up
R
