32
12.9

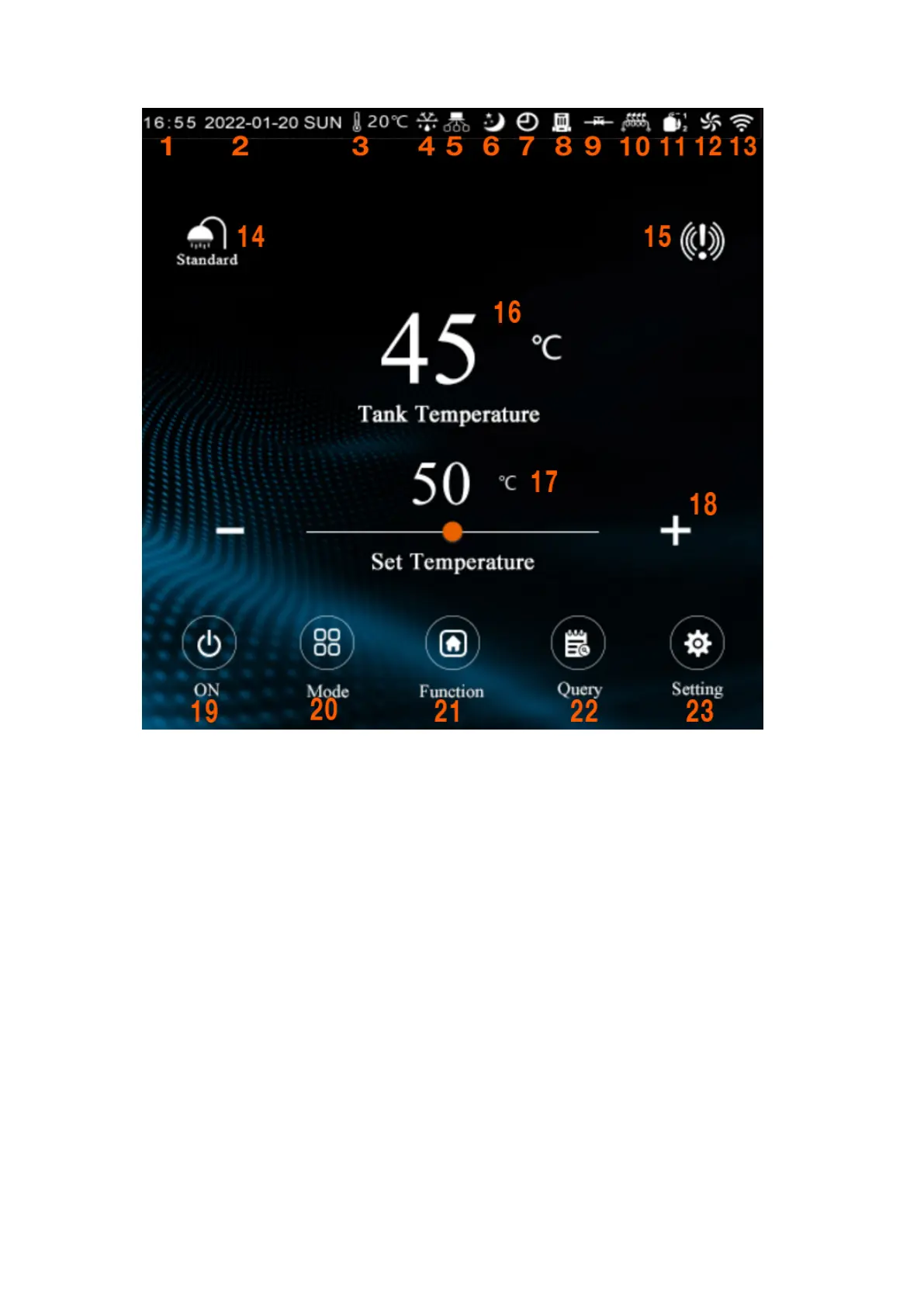

1. CURRENT TIME 13. WI-FI SYMBOL (LIT WI-FI IS CONNECTED)
2. CURRENT DATE 14. SHOWER SYMBOL (SYSTEM IS ON FOR HEATING)
3. CURRENT AMBIENT TEMPERATURE 15. ERROR SYMBOL (SYSTEM HAS A FAULT)
4. DEFROST SYMBOL (LIT IF DEFROST IS ACTIVE) 16. CURRENT WATER TEMPERATURE
5. NETWORK SYMBOL (N/A) 17. SET WATER TEMPERATURE
6. SLEEP SYMBOL (N/A) 18. SET TEMPERATURE ADJUSTMENT BUTTONS
7. TIMER SYMBOL (LIT IF TIMERS ARE ACTIVE) 19. SWITCH SYSTEM ON/OFF BUTTON
8. WATER PUMP SYMBOL (N/A) 20. MODE MENU BUTTON
9. WATER FLOW SYMBOL (N/A) 21. FUNCTION MENU BUTTON
10. ELEMENT SYMBOL (LIT IF ELEMENT IS HEATING) 22. QUERY MENU BUTTON
11. COMPRESSOR SYMBOL (LIT COMPRESSOR IS ON) 23. SETTING MENU BUTTON
12. FAN SYMBOL (LIT FAN IS ON)
