HydroTherm KN-2 - Page 24

P/N 42-9450 8/08 Copyright 2008 Hydrotherm
Page 24 KN INSTALLATION AND OPERATION INSTRUCTIONS
(KN-2 only)

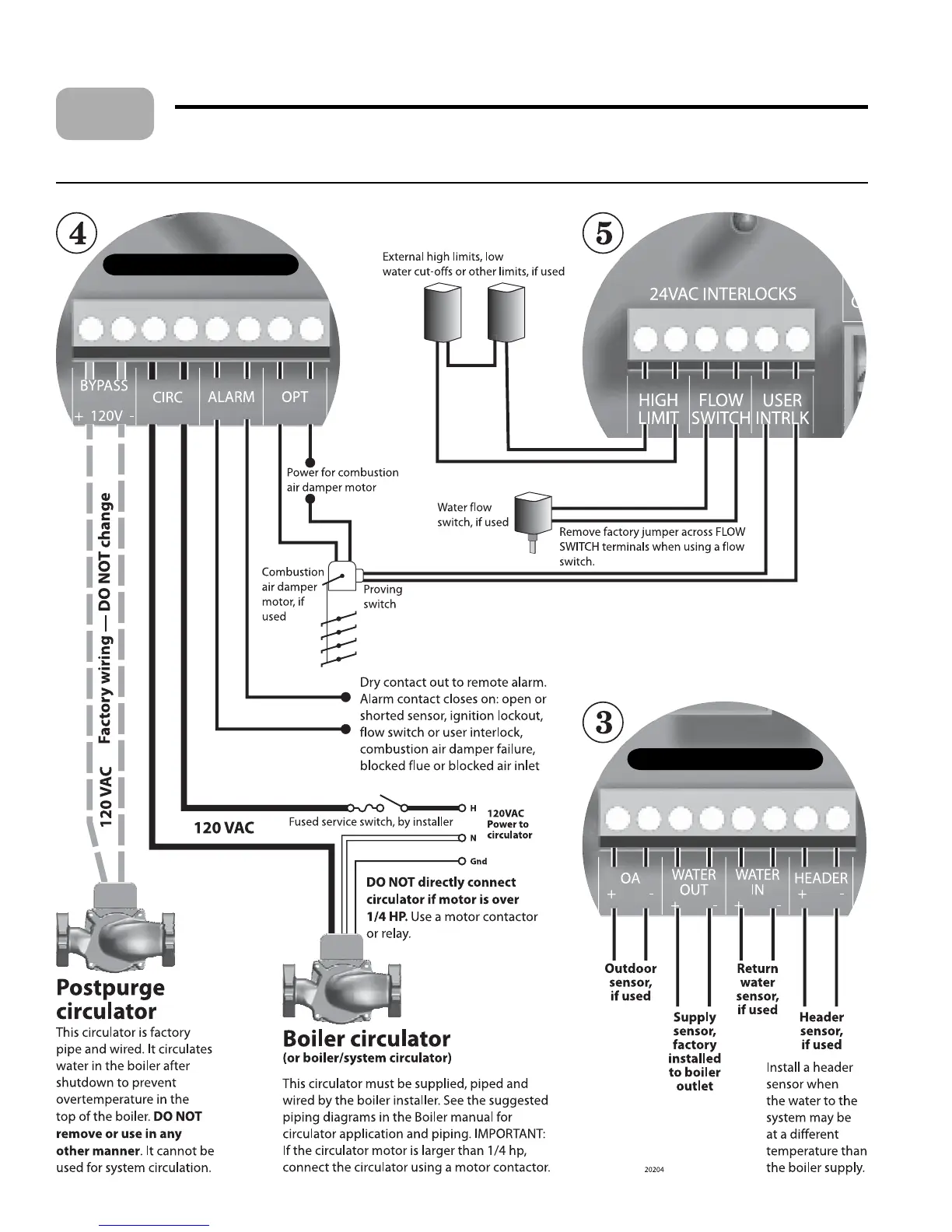

Figure 21b KN wiring summary (see Figure 21 for locations) (see Boiler manual and Control manual text for additional information)
Wiring and control setup (continued)
7
Also see page 21
Also see page 22
