Hypertherm Duramax Series User Manual

SpecificationS
1-2 Duramax Retrofit Torch Operator Manual
Duramax HRT
2

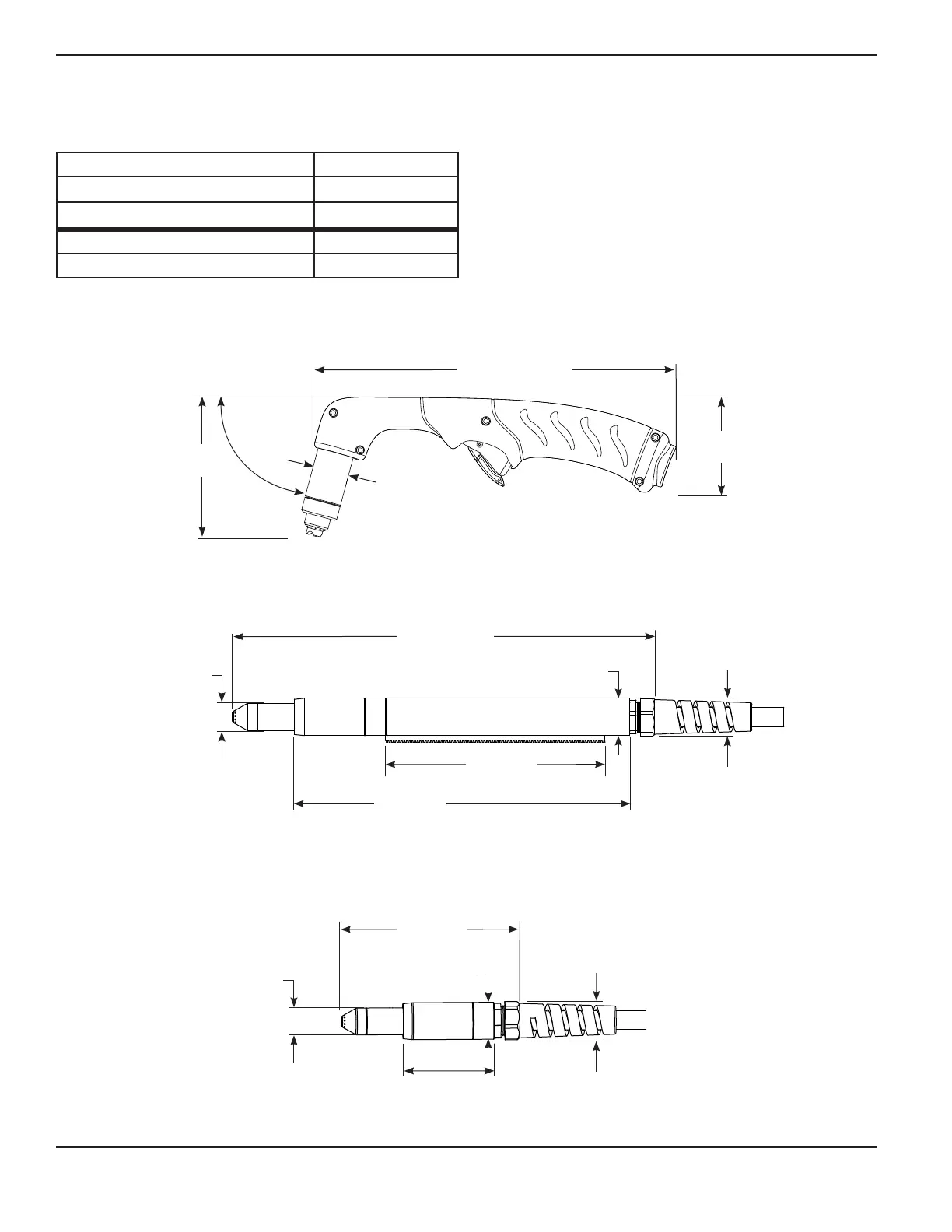

hand torch dimensions
25.2 cm (9.9 in.)
9.8 cm
(3.8 in.)
75°
angle
6.6 cm
(2.6 in.)
2.5 cm
(1.0 in.)
Duramax MRT
2
full-length machine torch dimensions
39.6 cm
(15.6 in.)
2.5 cm
(1.0 in.)
3.6 cm (1.4 in.) outer
dimension, 3.3 cm
(1.3 in.) flat sides
31.3 cm
(12.3 in.)
20.6 cm
(8.1 in.)
3.5 cm
(1.4 in.)
Duramax MRT
2
without positioning sleeve (mini torch)
2.5 cm
(1.0 in.)
3.6 cm (1.4 in.) outer
dimension, 3.3 cm
(1.3 in.) flat sides
3.5 cm
(1.4 in.)
16.8 cm
(6.6 in.)
8.4 cm
(3.3 in.)
Component weights
Torch type Weight – kg (lbs)
Hand torch 7.6 m (25 ft) 3.2 (7.1)
Hand torch 15 m (50 ft) 5.7 (12.6)
Machine torch 7.6 m (25 ft) 3.4 (7.5)
Machine torch 15 m (50 ft) 5.9 (13.0)

Hypertherm Duramax Series Specifications

General

Cooling	Air-cooled
Type	Plasma cutting torch
Series	Duramax
Compatibility	Powermax systems
Torch Lengths	15' (4.6 m), 25' (7.6 m)
Consumables	Nozzles, electrodes, shields, retaining caps, swirl rings
Torch Models	Duramax Lock
Compatible Systems	Powermax65, Powermax85, Powermax105
Nozzle Types	FineCut
Electrode Types	Standard
Shield Types	Standard
Length	15 ft (4.6 m) standard, 25 ft (7.6 m) optional
