TORCH SETUP
Duramax Retrofit Torch Operator Manual 2-15
The Duramax MRT
2

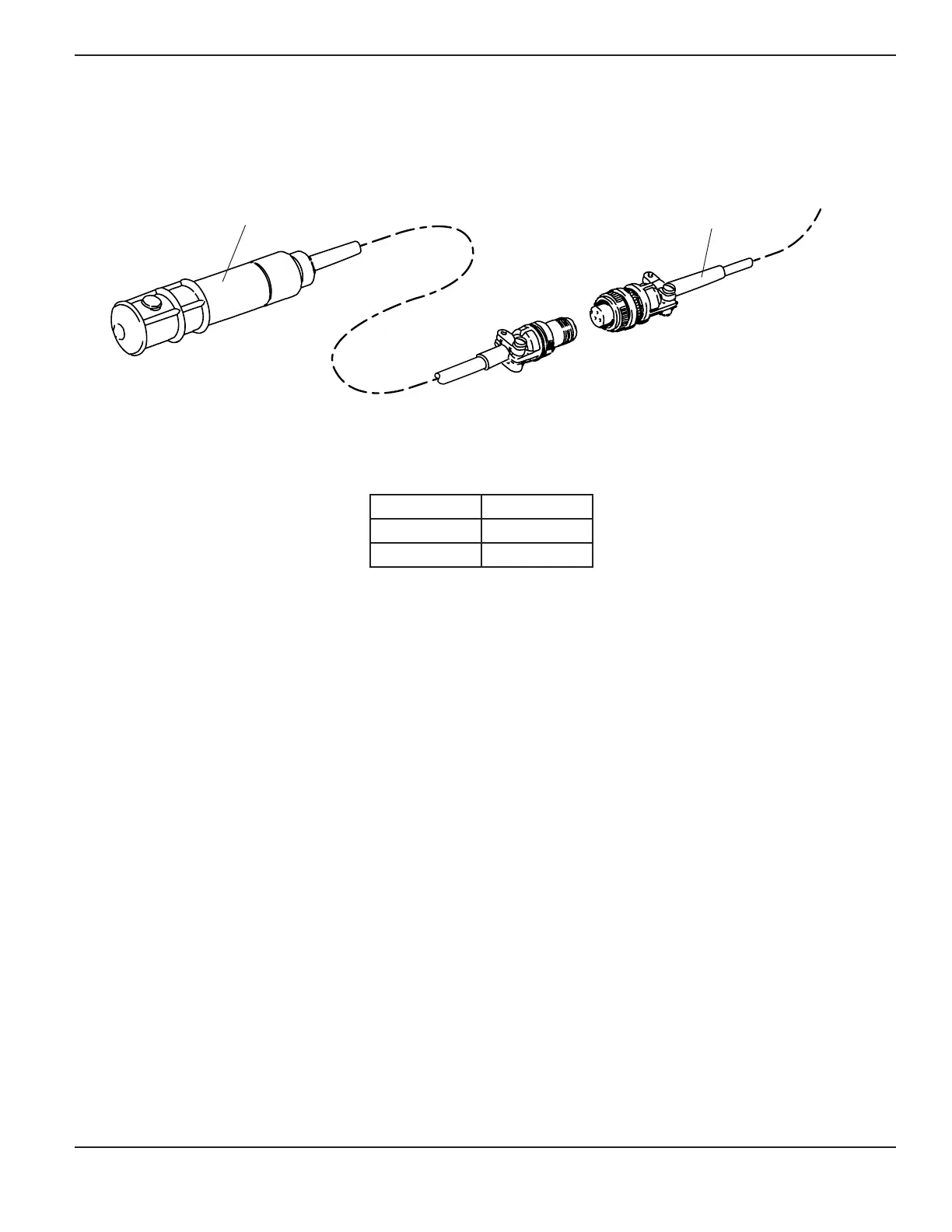

torch lead is supplied with a pigtail so that the on/off pendant may be used. If you want to use a different
on/off switch configuration, note that the wiring configuration to the 3-socket female receptacle on the pigtail is as follows:
ON/OFF Pendant connection
Socket A White Wire
Socket B Not Used
Socket C Black Wire
On/Off pendant
Pigtail from machine
torch lead

Hypertherm Duramax Series Specifications

General

Cooling	Air-cooled
Type	Plasma cutting torch
Series	Duramax
Compatibility	Powermax systems
Torch Lengths	15' (4.6 m), 25' (7.6 m)
Consumables	Nozzles, electrodes, shields, retaining caps, swirl rings
Torch Models	Duramax Lock
Compatible Systems	Powermax65, Powermax85, Powermax105
Nozzle Types	FineCut
Electrode Types	Standard
Shield Types	Standard
Length	15 ft (4.6 m) standard, 25 ft (7.6 m) optional
