TORCH SETUP
Duramax Retrofit Torch Operator Manual 2-3
Choose the hand torch consumables
Duramax retrofit torches are shipped with a full set of cutting consumables pre-installed. Hypertherm also includes spare
cutting electrodes, nozzles, and gouging consumables in the consumables box, for handheld torches.
Consumables for handheld cutting are shown on the next page. Notice that the retaining cap and electrode are the same for
cutting, gouging, and FineCut
®
applications. Only the shield, nozzle, and swirl ring are different.
For the best cut quality on thin materials, you may prefer to use FineCut consumables, or use a 45A nozzle and reduce the
current setting to 45 or 40 amps.

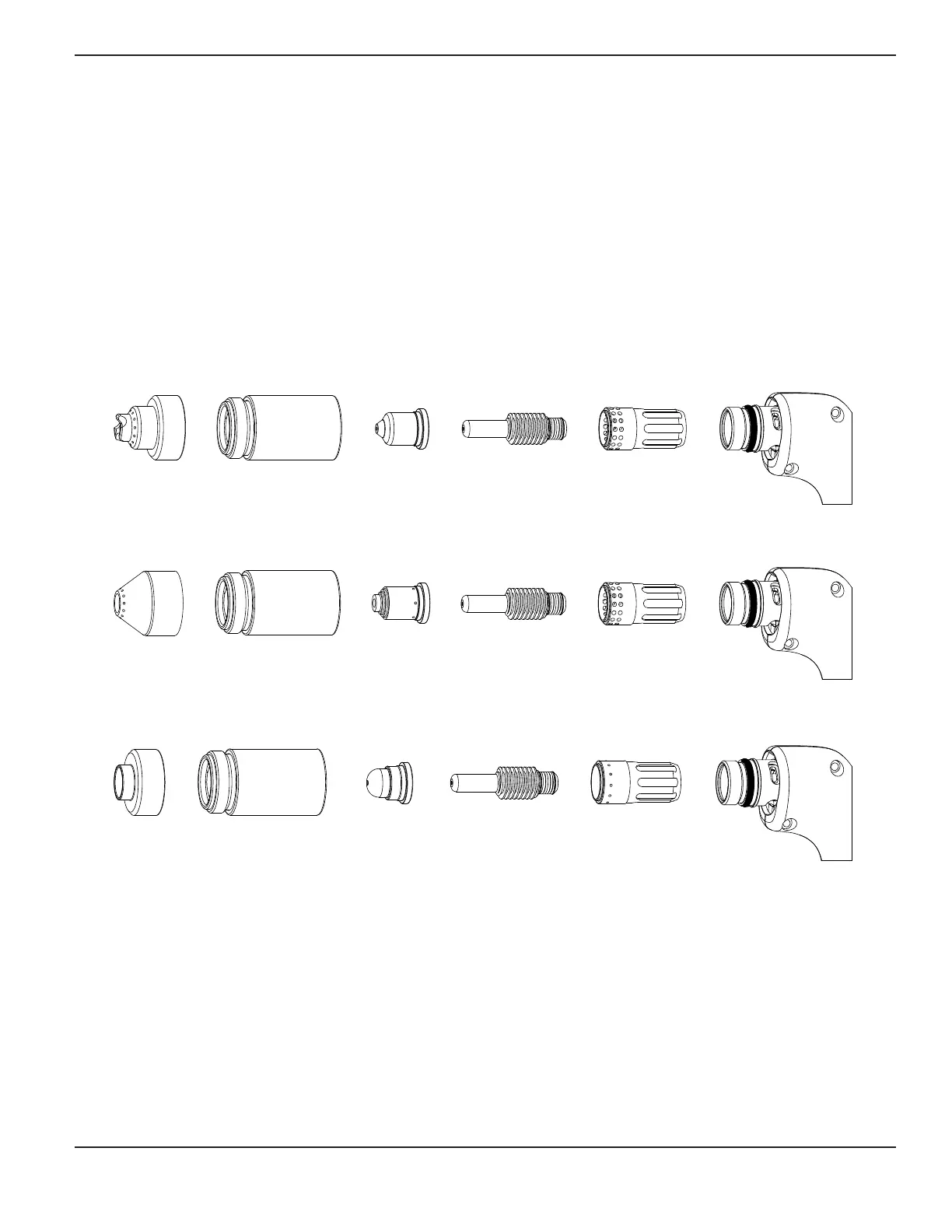

Hand torch consumables
Drag-cutting consumables
4
5
A
220857
Swirl ring
220842
Electrode
220941
Nozzle
220854
Retaining cap
220818
Shield
Gouging consumables
220857
Swirl ring
220842
Electrode
220797
Nozzle
220854
Retaining cap
220798
Shield
FineCut
®
consumables
220854
Retaining cap
220947
Swirl ring
220842
Electrode
220931
Shield
220930
Nozzle

Hypertherm Duramax Series Specifications

General

Cooling	Air-cooled
Type	Plasma cutting torch
Series	Duramax
Compatibility	Powermax systems
Torch Lengths	15' (4.6 m), 25' (7.6 m)
Consumables	Nozzles, electrodes, shields, retaining caps, swirl rings
Torch Models	Duramax Lock
Compatible Systems	Powermax65, Powermax85, Powermax105
Nozzle Types	FineCut
Electrode Types	Standard
Shield Types	Standard
Length	15 ft (4.6 m) standard, 25 ft (7.6 m) optional
