OPERATION
Duramax Retrofit Torch Operator Manual 3-19

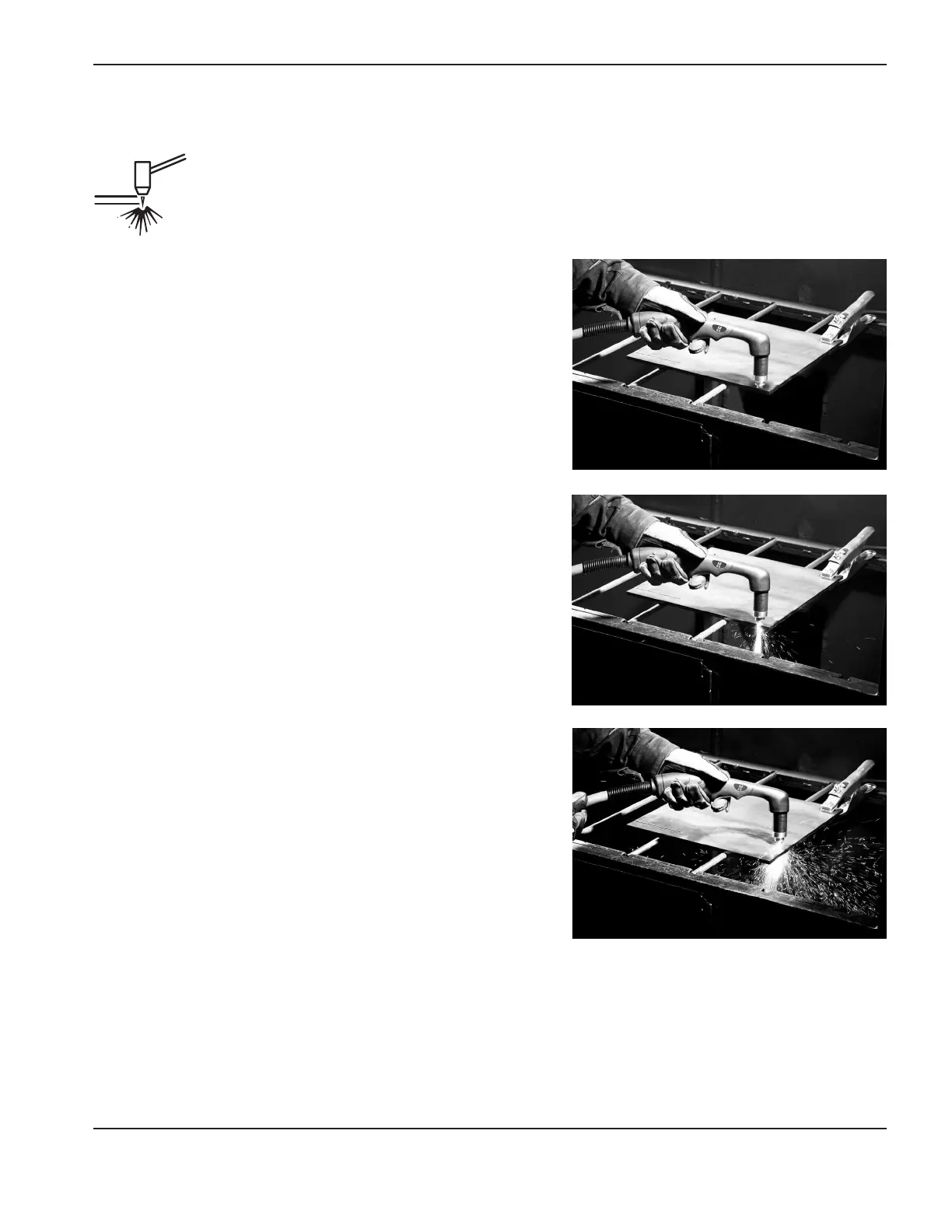

Start a cut from the edge of the workpiece
1. With the work clamp attached to the workpiece, hold
the torch nozzle perpendicular (90°) to the edge of the
workpiece.
2. Press the torch’s trigger to start the arc. Pause at the edge
until the arc has cut completely through the workpiece.
3. Drag the torch tip lightly across the workpiece to proceed
with the cut. Maintain a steady, even pace.

Hypertherm Duramax Series Specifications

General

Cooling	Air-cooled
Type	Plasma cutting torch
Series	Duramax
Compatibility	Powermax systems
Torch Lengths	15' (4.6 m), 25' (7.6 m)
Consumables	Nozzles, electrodes, shields, retaining caps, swirl rings
Torch Models	Duramax Lock
Compatible Systems	Powermax65, Powermax85, Powermax105
Nozzle Types	FineCut
Electrode Types	Standard
Shield Types	Standard
Length	15 ft (4.6 m) standard, 25 ft (7.6 m) optional
