Hand torch cutting hints
• Drag the torch tip lightly along the workpiece to maintain a steady cut.
• While cutting, make sure that sparks exit from the bottom of the workpiece. The sparks should lag slightly
behind the torch as you cut (15° — 30° angle from vertical).
• If sparks spray up from the workpiece, move the torch more slowly, or set the output current higher.
• If you fire the torch unnecessarily, you will shorten the life of the
nozzle and electrode.
• Pulling, or dragging, the torch along the cut is easier than pushing the torch.
• For straight-line cuts, use a straight edge as a guide. To cut circles, use a template or a radius cutter
attachment (a circle cutting guide). See Section 4, Maintenance and Parts, for part numbers for the Hypertherm
plasma cutting guides for cutting circles and making bevel cuts.

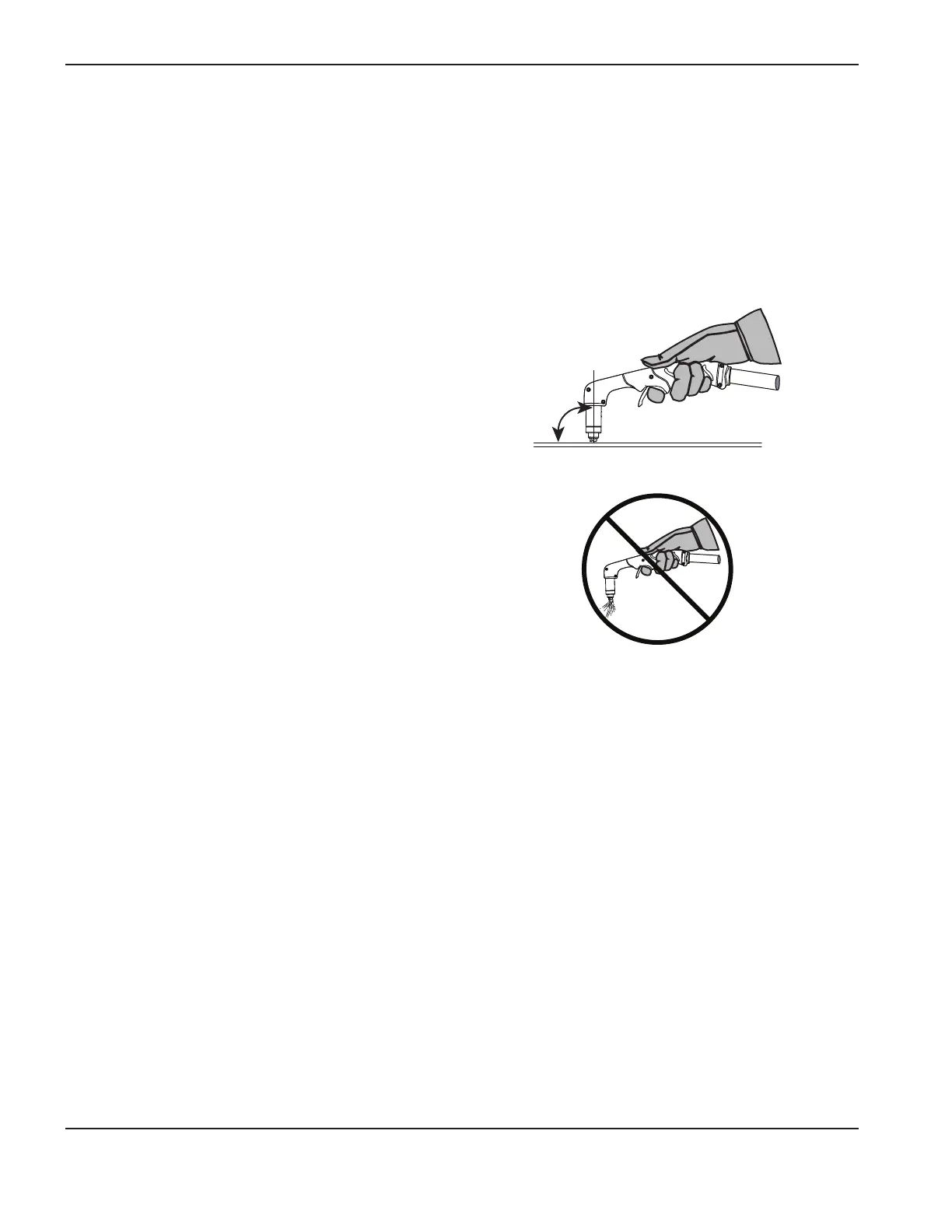

• With hand torches, hold the torch nozzle perpendicular to
the workpiece so that the nozzle is at a 90° angle to the
cutting surface. Observe the cutting arc as the torch cuts.
90°

Hypertherm Duramax Series Specifications

General

Cooling	Air-cooled
Type	Plasma cutting torch
Series	Duramax
Compatibility	Powermax systems
Torch Lengths	15' (4.6 m), 25' (7.6 m)
Consumables	Nozzles, electrodes, shields, retaining caps, swirl rings
Torch Models	Duramax Lock
Compatible Systems	Powermax65, Powermax85, Powermax105
Nozzle Types	FineCut
Electrode Types	Standard
Shield Types	Standard
Length	15 ft (4.6 m) standard, 25 ft (7.6 m) optional
