16 Duramax/Duramax Hyamp Robotic Torches Service Manual 807460
1 – Specifications
Duramax component weights
The recommended minimum bend radius for the Duramax torch lead is 76 mm (3.0 inches). See Figure 1.

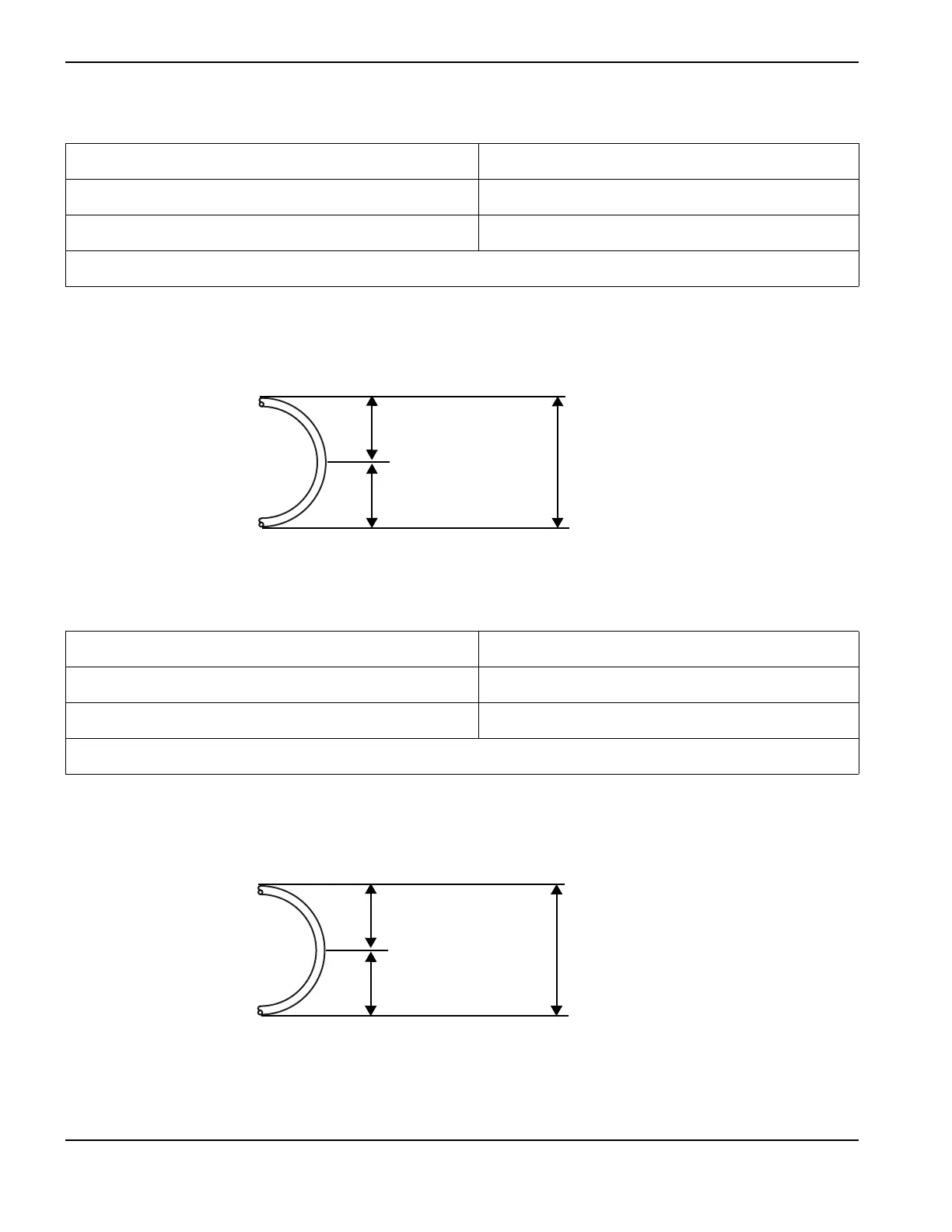

Figure 1 – Duramax bend radius
Duramax Hyamp component weights
The recommended minimum bend radius for the Duramax Hyamp torch lead is 102 mm (4.0 inches). See Figure 2.
Figure2–Duramax Hyamp bend radius
180° Duramax robotic torch with 7.6 m (25 foot) lead 3.3 kg (7.2 pounds)
90° Duramax robotic torch 7.6 m (25 foot) lead 3.3 kg (7.2 pounds)
45° Duramax robotic torch 7.6 m (25 foot) lead 3.3 kg (7.2 pounds)
Each Duramax robotic torch weighs 0.43 kg/m (0.29 pounds/foot).
180° Duramax Hyamp robotic torch with 7.6 m (25 foot) lead 3.5 kg (7.8 pounds)
90° Duramax Hyamp robotic torch 7.6 m (25 foot) lead 3.5 kg (7.8 pounds)
45° Duramax Hyamp robotic torch 7.6 m (25 foot) lead 3.5 kg (7.8 pounds)
Each Duramax Hyamp robotic torch weighs 0.46 kg/m (0.31 pounds/foot).
76 mm
(3.0 inches)
76 mm
(3.0 inches)
152 mm
(6.0 inches)
Diameter = 2 x Radius = 152 mm (6.0 inches)
102 mm
(4.0 inches)
102 mm
(4.0 inches)
204 mm
(8.0 inches)
Diameter = 2 x Radius = 204 mm (8.0 inches)
