Duramax/Duramax Hyamp Robotic Torches Service Manual 807460 73
5 – Maintenance and Parts

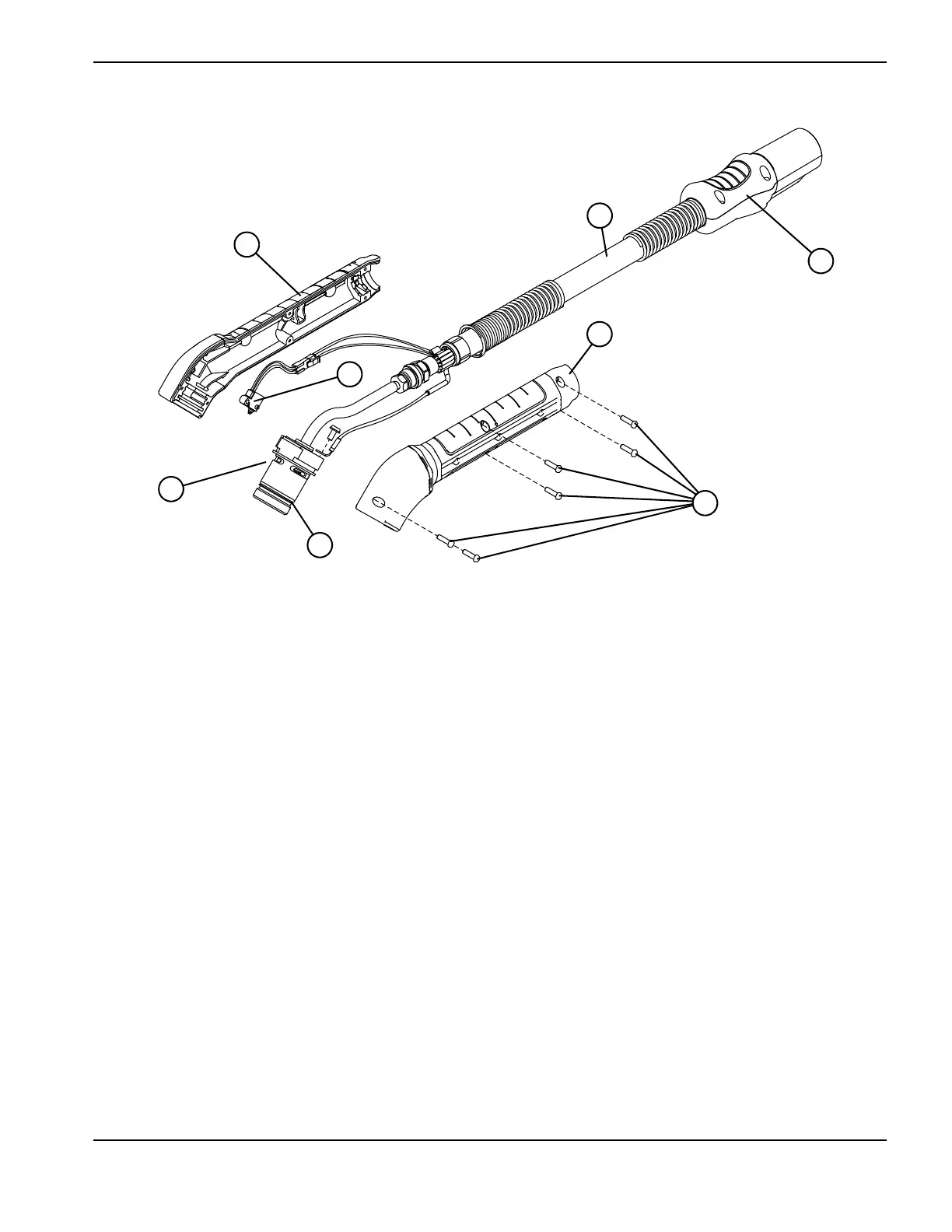

Duramax Hyamp 45° robotic torch
The entire Duramax Hyamp 45° robotic torch assembly with leads can be replaced, or individual component parts can be
replaced.
Part Number Description
059564 Duramax Hyamp 45° robotic torch assembly with leads, 7.6 m (25 feet)
1
428293 Kit: Duramax Hyamp 45° robotic torch barrel replacement
2
428296 Kit: Duramax Hyamp 45° robotic torch main body replacement
3
428253 O-ring (5)
4
075714 Positioning barrel screws
5
428260 Kit: FastConnect replacement
6
428292 Kit: Duramax Hyamp robotic torch lead replacement, 7.6 m (25 feet)
7
228109 Kit: Cap-sensor switch replacement
1
2
3
6
7
5
1
4
