Duramax/Duramax Hyamp Robotic Torches Service Manual 807460 39
2 – Torch Setup

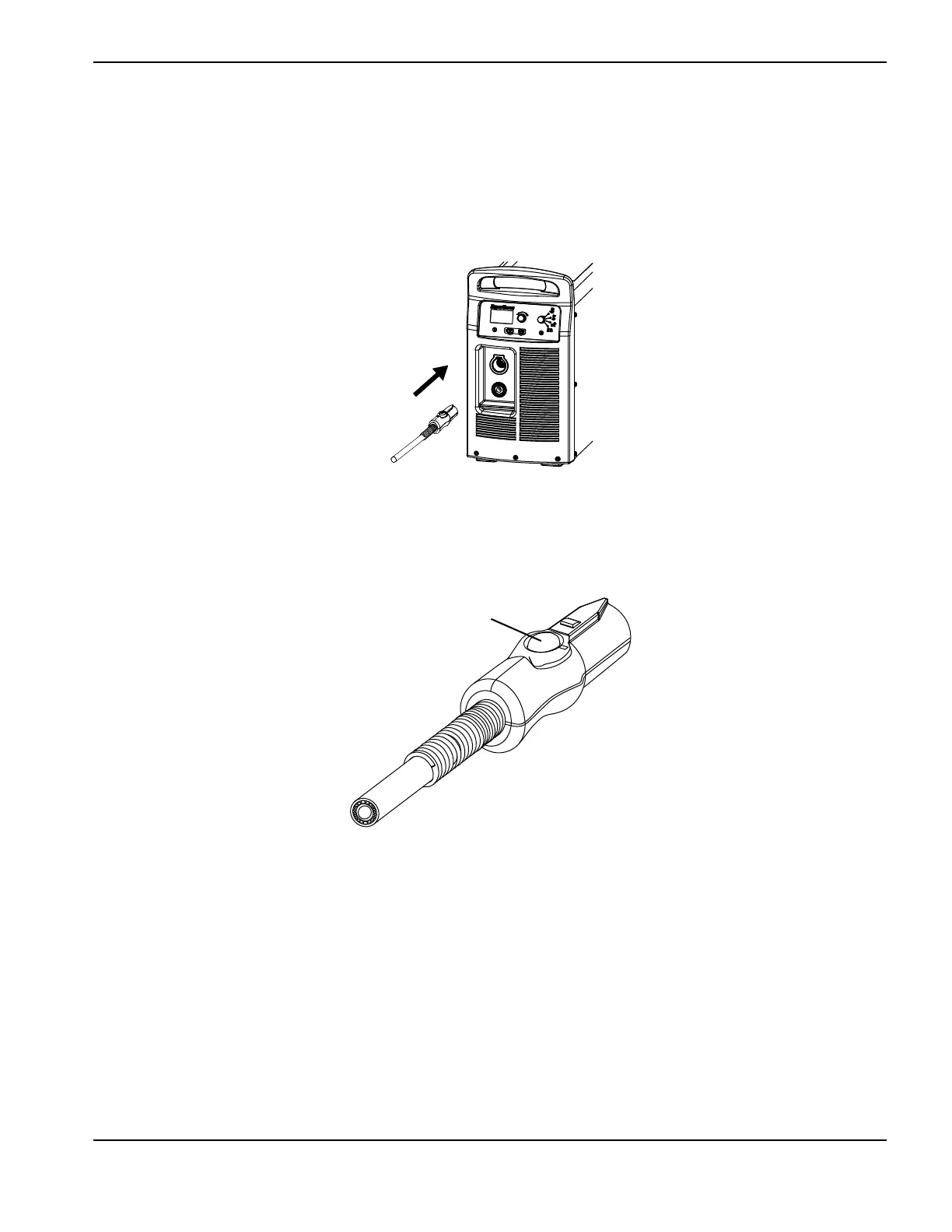

Connecting the torch lead
The Powermax65, Powermax85, Powermax105, and Powermax125 have FastConnect, a quick-disconnect system for
connecting and disconnecting hand, machine, and robotic torch leads. When connecting or disconnecting a torch, first
turn OFF the system. To connect the torch, push the connector into the receptacle on the front of the power supply.
Figure 15
To remove the torch, press the red button on the connector and pull the connector out of the receptacle.
Figure 16
