40 Duramax/Duramax Hyamp Robotic Torches Service Manual 807460
2 – Torch Setup
Connecting a remote-start pendant
An optional remote-start pendant is available for use with Powermax systems.
Part number 128650: 7.6 m (25 feet)
Part number 128651: 15 m (50 feet)
Part number 128652: 23 m (75 feet)
If your power supply has the machine interface receptacle on the rear of the power supply, remove the receptacle cover
and plug the Hypertherm remote-start pendant into the receptacle. If the system does not have a receptacle installed, a
CPC port upgrade kit (228697 for Powermax65/85) (228884 for Powermax105/125) is available from Hypertherm.
The remote-start pendant is for use only with a robotic or machine torch. It will not operate
if a hand torch is installed.

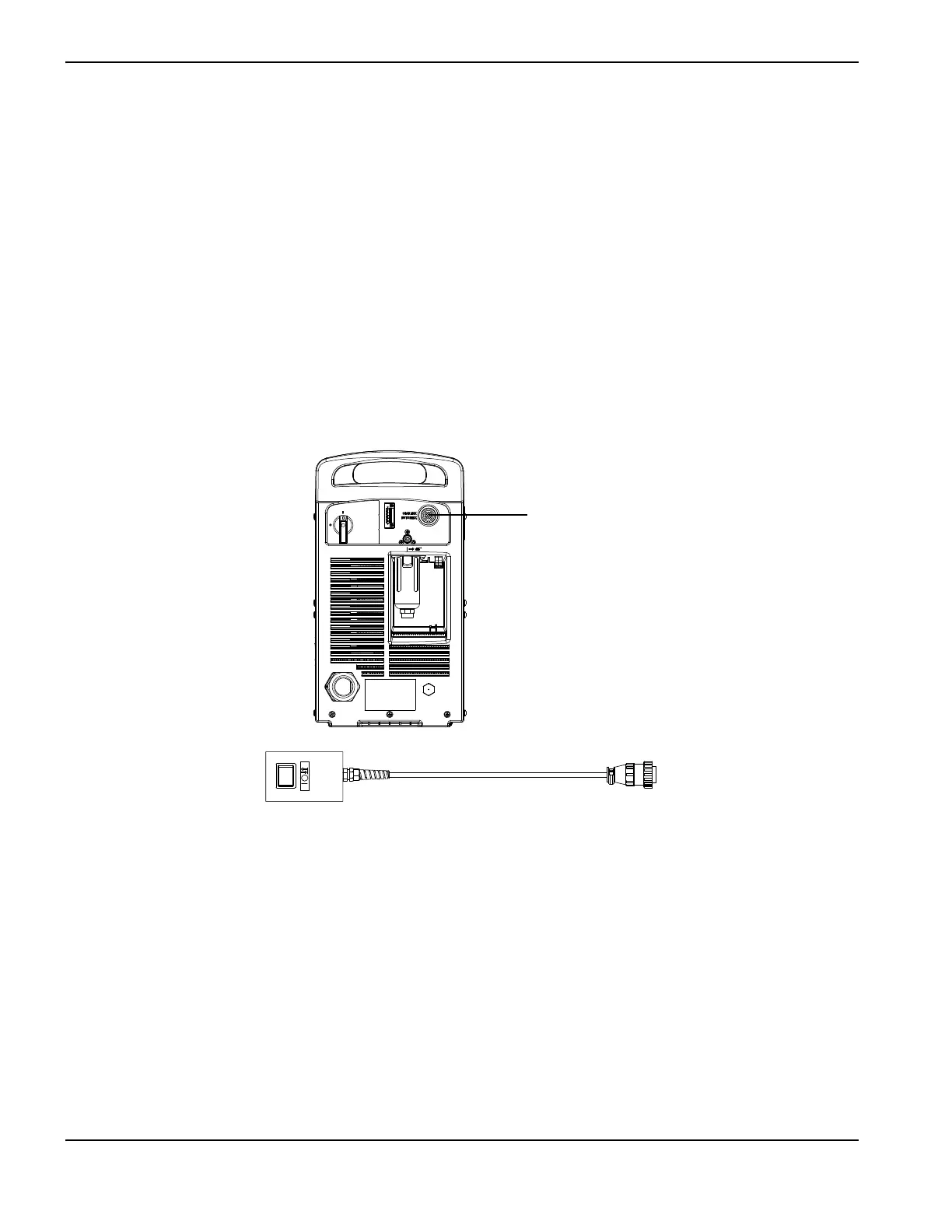

Figure 17
Receptacle for the remote-start
pendant or a machine interface cable.
Remote-start pendant
