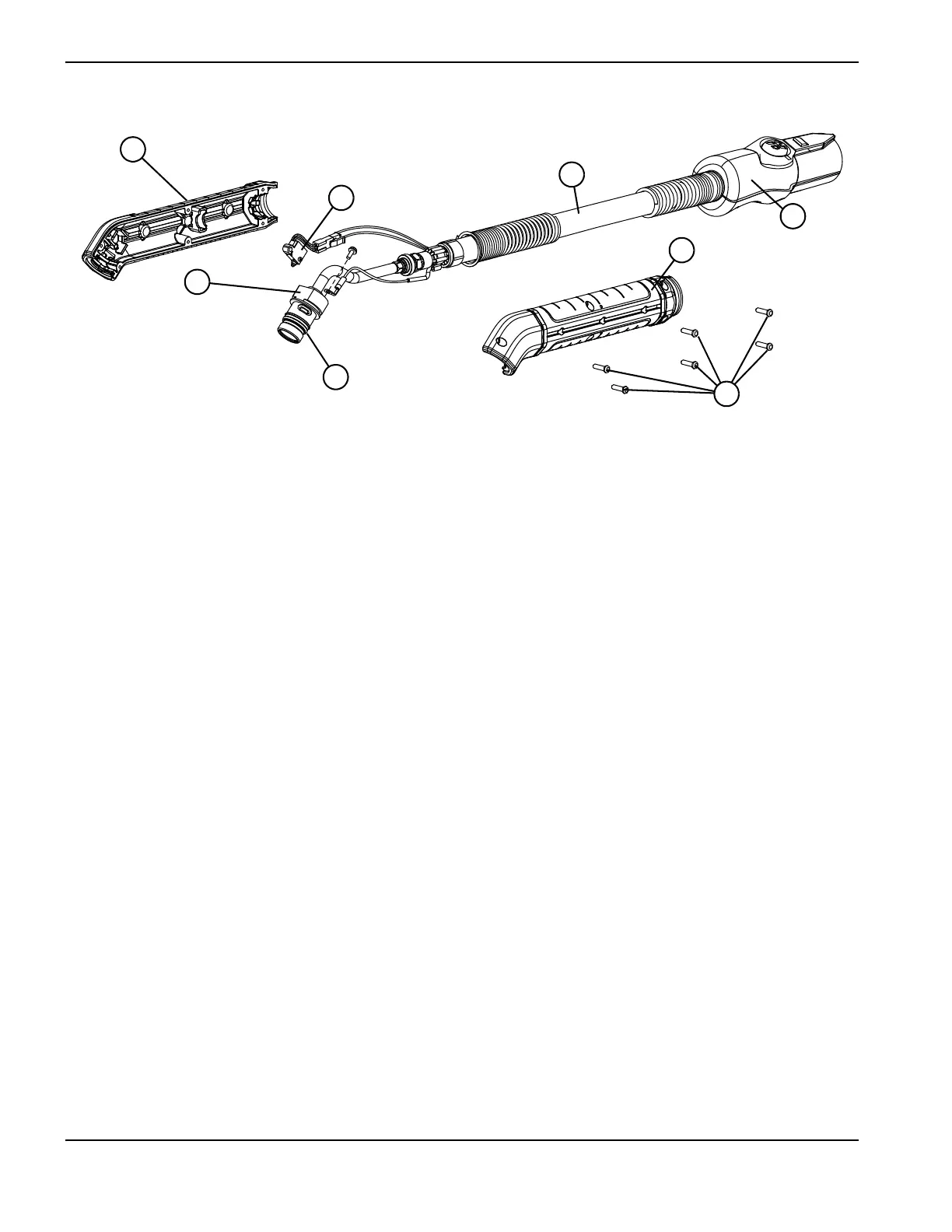

Duramax 45° robotic torch
The entire Duramax 45° robotic torch assembly with leads can be replaced, or individual component parts can be
replaced.
Part Number Description
059464 Duramax 45° robotic torch assembly with leads, 7.6 m (25 feet)
1
228858 Kit: Duramax 45° robotic torch positioning barrel replacement
2
228855 Kit: Duramax 45° robotic torch main body replacement
3
058519 O-ring
4
075714 Positioning barrel screws
5
428260 Kit: FastConnect replacement
6
228852 Kit: Robotic torch lead replacement, 7.6 m (25 feet)
7
228109 Kit: Cap-sensor switch replacement
