Duramax/Duramax Hyamp Robotic Torches Service Manual 807460 69
5 – Maintenance and Parts

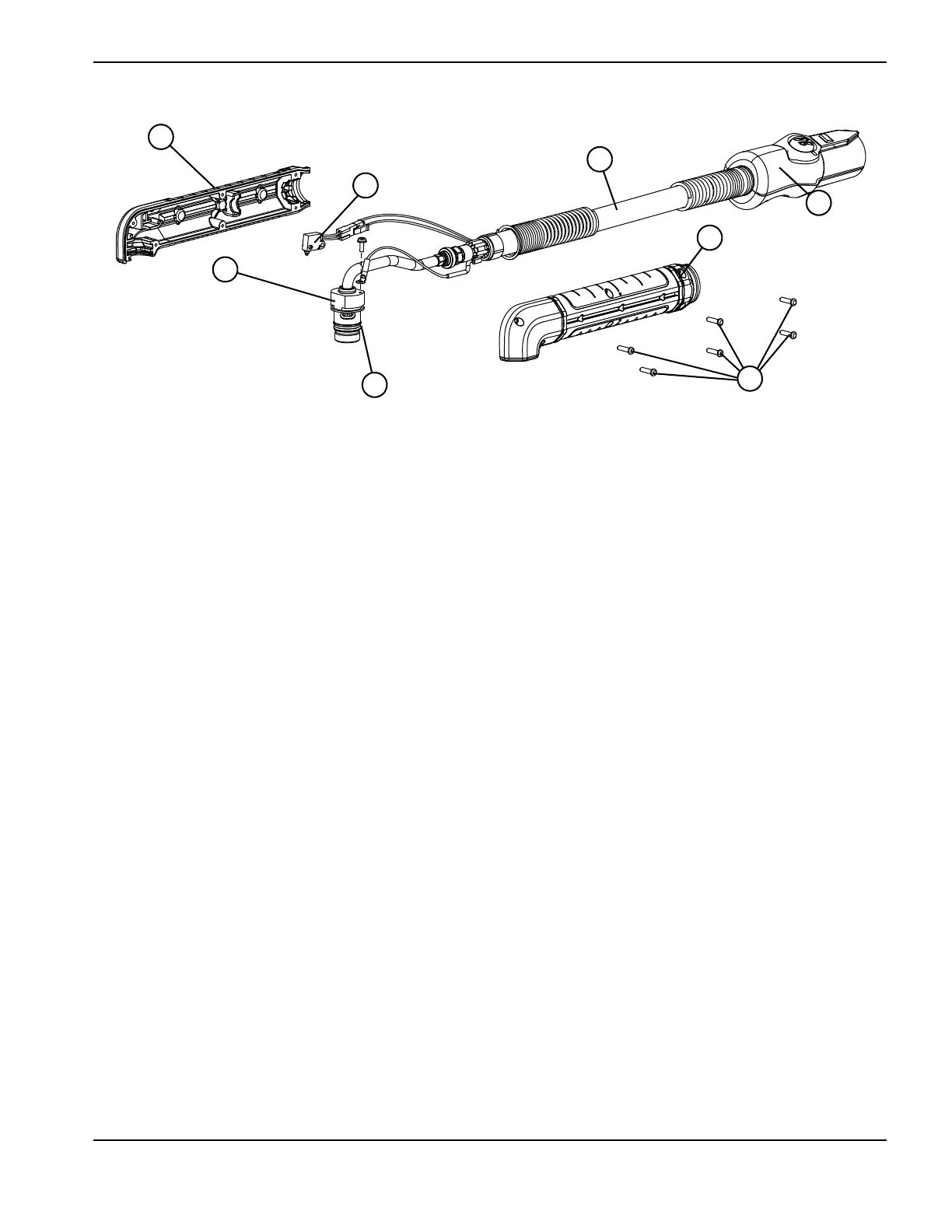

Duramax 90° robotic torch
The entire Duramax 90° robotic torch assembly with leads can be replaced, or individual component parts can be
replaced.
Part Number Description
059465 90° Duramax robotic torch assembly with leads, 7.6 m (25 feet)
1
228857 Kit: Duramax 90° robotic torch positioning barrel replacement
2
228854 Kit: Duramax 90° robotic torch main body replacement
3
058519 O-ring
4
075714 Positioning barrel screws
5
428260 Kit: FastConnect replacement
6
228852 Kit: Robotic torch lead replacement, 7.6 m (25 feet)
7
228109 Kit: Cap-sensor switch replacement
1
2
3
4
6
7
5
1
