28 Duramax/Duramax Hyamp Robotic Torches Service Manual 807460
2 – Torch Setup

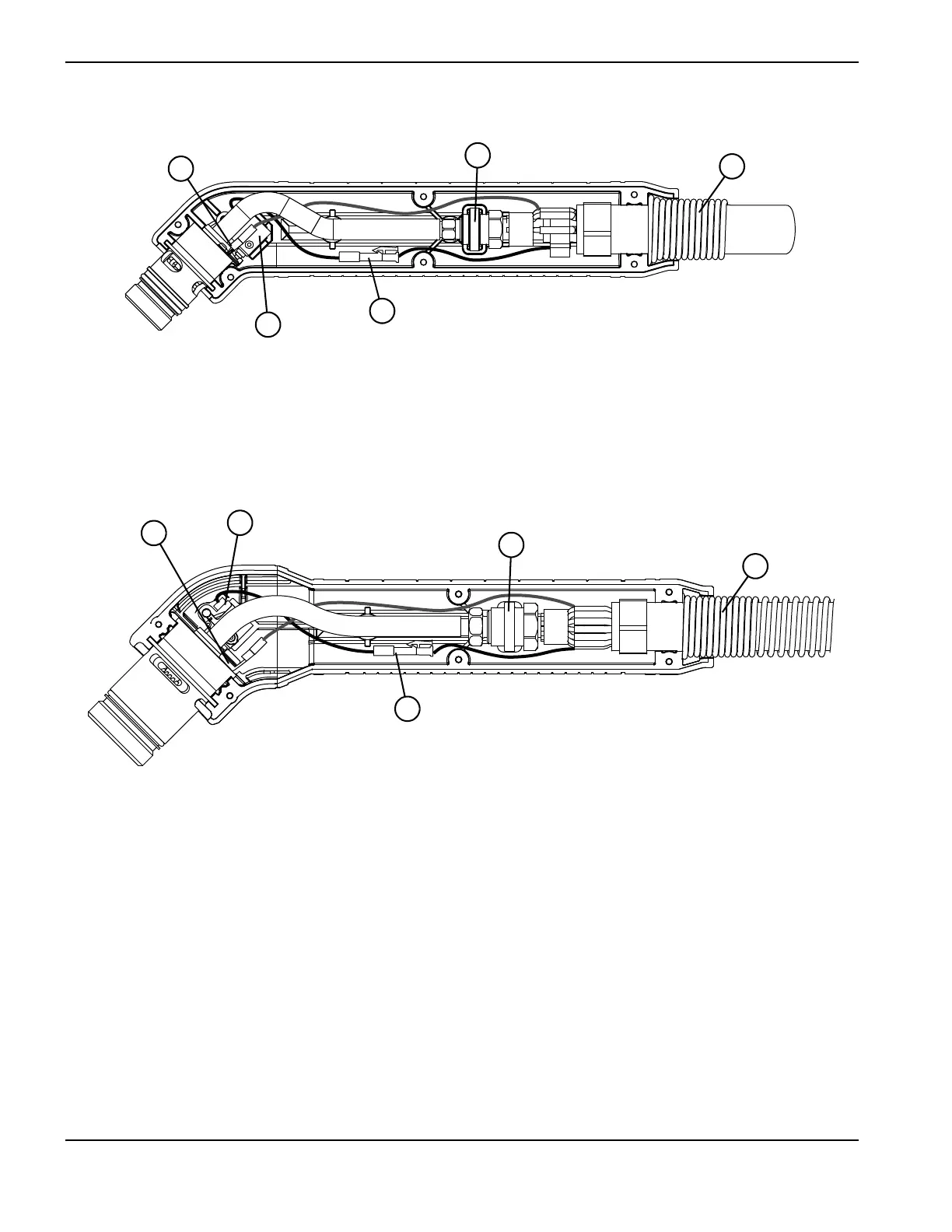

Figure8–Duramax wire routing
Figure9–Duramax Hyamp wire routing
19. Press the torch body into the right half of the positioning barrel with the gas fitting flange aligned with the slot in the
positioning barrel.
20. Align the strain relief with the strain relief slot in the positioning barrel.
21. Being careful that the positioning barrel and gas fitting flange do not pinch the wires, align the left half of the
positioning barrel with the right half.
22. Install the screws in the left half of the positioning barrel. Tighten to 15.0 kg∙cm (13.0 inch∙pounds).
2
3
4
1
5
1 Pilot arc wire terminal
2 Cap-sensor switch
3 Cap-sensor switch connector
4 Gas fitting flange
5 Strain relief
2
3
4
1
5
1 Pilot arc wire terminal
2 Cap-sensor switch
3 Cap-sensor switch connector
4 Gas fitting flange
5 Strain relief
