Page 2-7
INSTALLATION
HT2000/MAX200 Water Muffler Instruction Manual

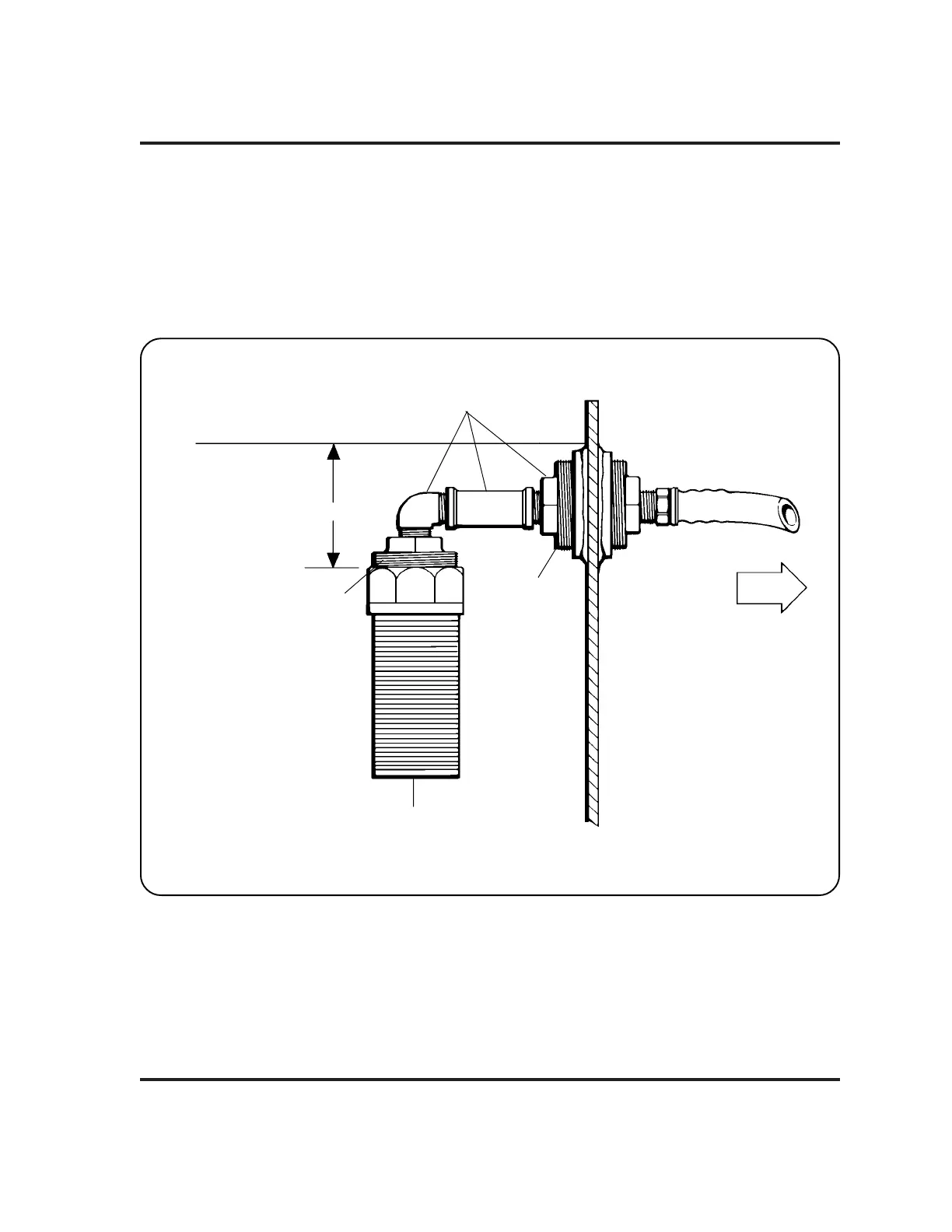

Figure 2-2 Suction Filter/Strainer, Optional Installation
CUSTOMER SUPPLIED
WATER TABLE
1-3"
HOSE ASSEMBLY
#024023
WATER FLOW
TO PUMP
NIPPLE
#015509
REDUCER BUSHING
#015578
MINIMUM
WATER LEVEL
FILTER/STRAINER
#027009
REMOVE SCREW TO
CLEAN FILTER/STRAINER
2. To connect pump to HT2000 with either the 50 ft (#023445) or 75 ft (#023617)
cables, attach wire from pin 2 (AC Hot - black) to coil, wire from pin 4 (AC Neutral
- white) to neutral, and wire from pin 3 (Ground - green) to ground.
3. Connect plug end of cable to the rear of HT2000 power supply at receptacle
WATER MUFFLER 1X10.
1-95
