STANDARD COMPONENTS
HT2000/MAX200
Water Muffler
Instruction Manual
Page 4-5
NOZZLE ASSEMBLY, W-M, HT2000/MAX200
Stock No. - 034148
Stock
Number
Description
Item
Quantity
034102
Wrench, W-M sleeve, HT200/MAX200
1
1
034149
Sleeve: 200A W-M
2
1
044031
O-Ring: Buna 70 Duro 1.739X.070
3
2
034150
Nozzle Only :200A W-M 90 Deg Ftg
4
1
044135
O-Ring: Buna 70 Duro 1.925X.103
5
2
075439
Thumb screw:8-32 X 3/8
6
3

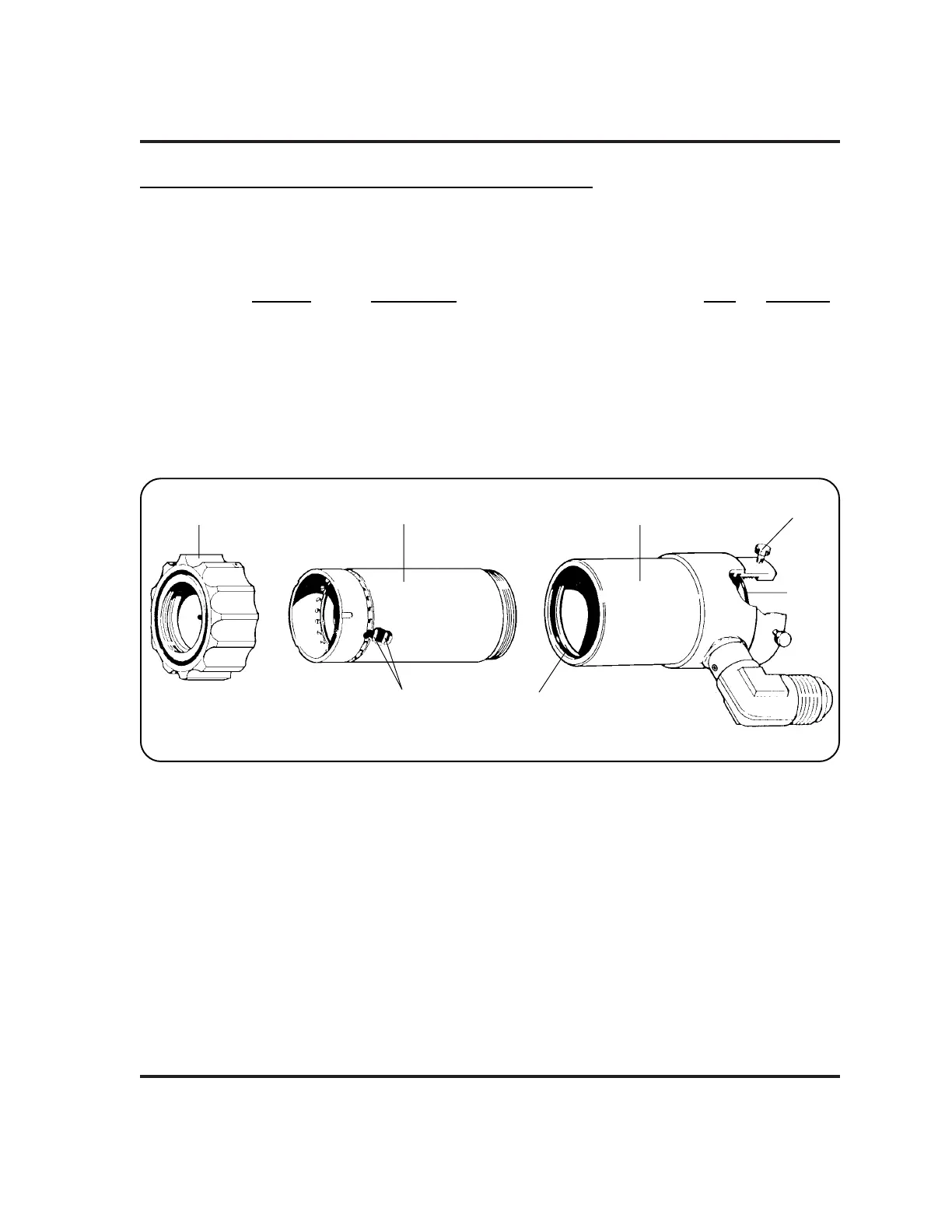

Figure 4-1 Nozzle Assembly
12
3
4
5
5
6
29
31
Table of Contents
Default Chapter
4
Table of Contents
4
Safety
7
Safety, Introduction & Specifications
8
Introduction
8
Above-Water Cutting
8
Underwater Cutting
8
System Components
8
Water Table Requirements
8
Specifications
9
Installation
10
Section 2 Installation
10
Upon Receipt
11
HT2000/MAX200 Water Muffler System with Hoses
11
HT2000/MAX200 Water Muffler System Without Hoses
11
Damage Claims
12
Installation
12
Install the Nozzle Assembly
12
Illustrations
14
Figure 2-1 Nozzle Assembly Installation
14
Position and Connect the Pump to the Water Table
15
Connect the Pump to the Nozzle Assembly
15
Connect the Pump to the HT2000
15
Figure 2-2 Suction/Filter Strainer, Optional Installation
16
Figure 2-3 Water Muffler System Interconnection Diagram
17
Connect the Pump to the MAX200
18
Test the System
18
Pump Discharge Hose Water Recovery Checkout
19
Install Check Valve
19
Operation & Maintenance
20
Section 3 Operation & Maintenance
20
Operation
21
Above-Water Cutting/Underwater Cutting
21
Maintenance
22
Pump Unit
22
Suction Filter/Strainer
22
Pump Contactor
22
Pump Contactor 120VAC Control Signal
22
Pump Contactor 120-VAC Control Signal
22
Nozzle Assembly
22
Removal and Replacement Procedures
23
Remove the Nozzle Assembly from the Torch
23
Figure 3-1 Nozzle Assembly Removal and Replacement
23
Disassemble the Nozzle Assembly
24
Figure 3-2 Assemble/Disassemble the Nozzle Assembly
24
Replace the Nozzle Assembly
25
Technical Questions
25
Standard Components
26
Section 4 Standard Components
26
Water Muffler System 240/480V, 3PH, 60 Hz W/Hoses
27
Water Muffler System 240/480V, 3PH, 60 Hz W/O Hoses
27
Water Muffler System 380-415V, 3PH, 50 Hz W/Hoses
28
Water Muffler System 380-415V, 3PH, 50 Hz W/O Hoses
28
Water Muffler System 600V, 3PH, 60 Hz W/Hoses
29
Water Muffler System 600V, 3PH, 60 Hz W/O Hoses
29
Nozzle Assembly, W-M, HT2000/MAX200
30
Water Supply, W-M, HT2000/MAX200
31
Water Muffler Pump Assembly
32
Figure 4-2 Water Supply Assembly
32
HT2000 Water Muffler Pump Cable
33
Pump Discharge Hose Check Valve (Optional)
33
Figure 4-3 HT2000 Water Muffler Pump Cable - PS to WM
33
Appendix
34
Water Muffler Pumps
34
