Hypertherm HT2000 - Water Muffler Pump Assembly Components

STANDARD COMPONENTS
HT2000/MAX200 Water Muffler Instruction Manual
Page 4-7
5
7
8
2
3
6
9
2
1
4

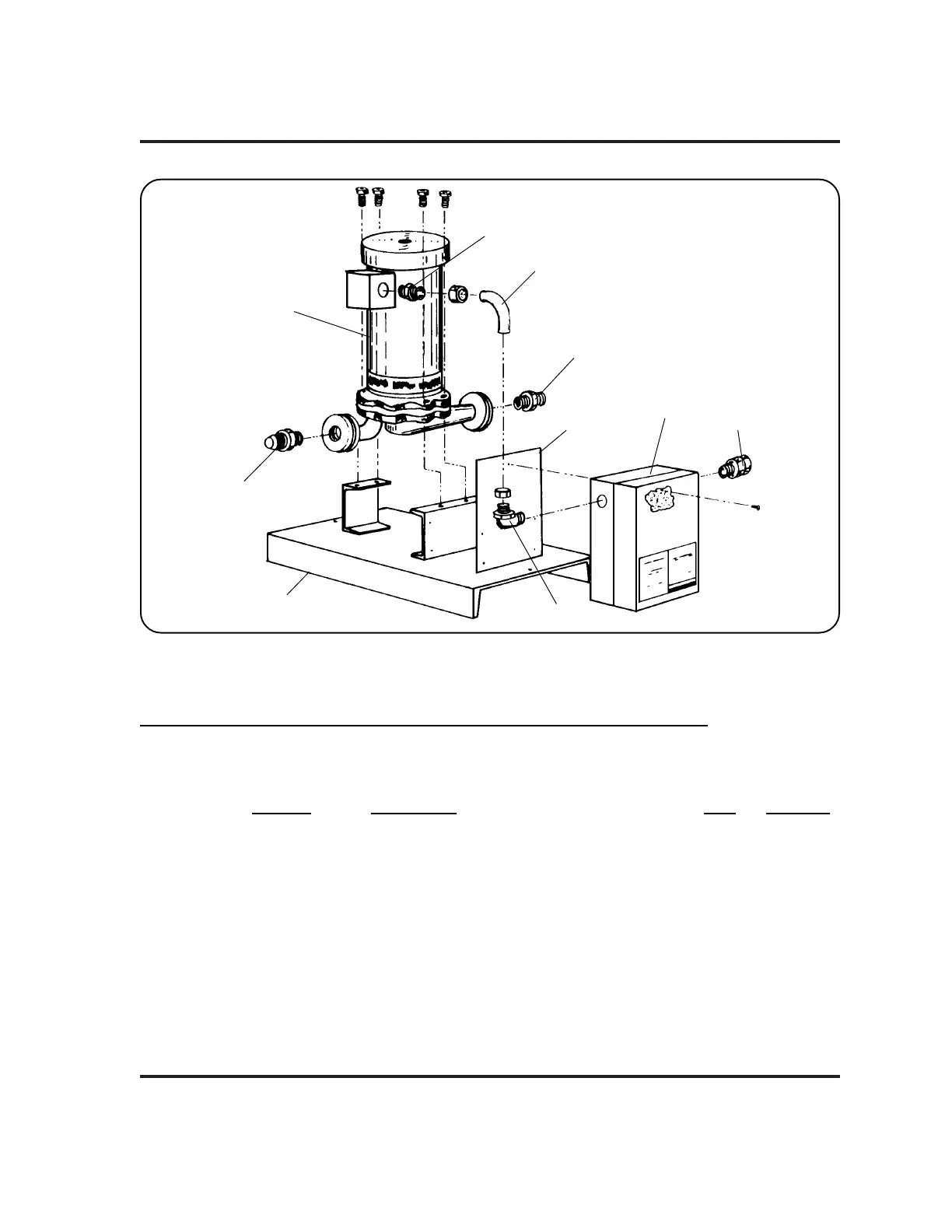

Figure 4-2 Water Supply Assembly
WATER MUFFLER PUMP ASSEMBLY (SEE APPENDIX)
Stock No. - 031049
Stock
Number Description Item Quantity
031036 Impeller, 1285505 3 1
031047 Casing, 1326505 5 1
* Casing cap screw 5D 8
031035 Adapter cradle, 1250705 7 1
* Adapter Cap Screws 7G 1
031048 Backhead, 1080280 22 1
031040 Clearance shim, 9157206-7-8 37 3
031041 Casing gasket, 9155333 77 1
031042 Stationary seal element, 6960440 95A 1
Rotating seal face, 6960440 95B 1
* Obtain locally
