Powermax45 Raw Arc Voltage Kit
5. Use a drill with a 15 mm (19/32 inch) drill bit to drill out the access point on the rear panel.
6. Route the cable through the strain relief so that 45.72 cm (18 inches) of insulated wire is on the side of the strain
relief that will go inside the power supply.
7. Thread the 45.72 cm (18 inches) of wire through the hole you drilled in the rear panel and fit the strain relief into the
hole. If necessary, drill out any remaining rough spots so that the strain relief fits snugly.
8. Tighten the strain relief nut on the inside of the rear panel to hold the strain relief in place.

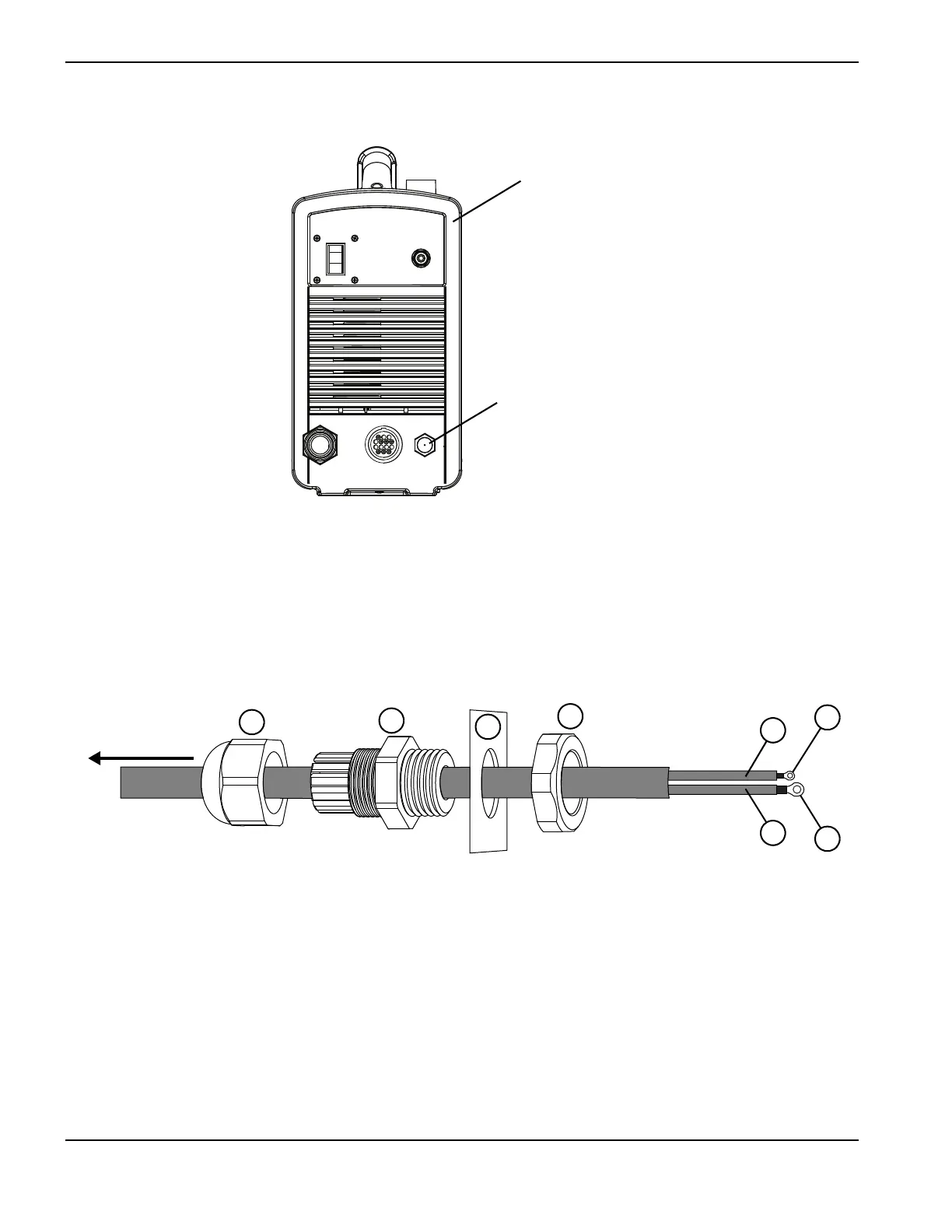

Access point
Rear panel
1
2
3
4
5
7
8
6
Cable direction
1 Strain relief retention nut (outside power supply)
2 Strain relief
3 Rear panel
4 Strain relief nut (inside power supply)
5 Wire 1 (-)
6 M4 (#8) ring
7 Wire 2 (+)
8 M5 (#10) ring
