Machine Interface Receptacle with Voltage Divider PCB
14 806980 Field Service Bulletin Powermax65/85/105/125, Powermax65/85/105 SYNC
Powermax105/125 or Powermax105 SYNC

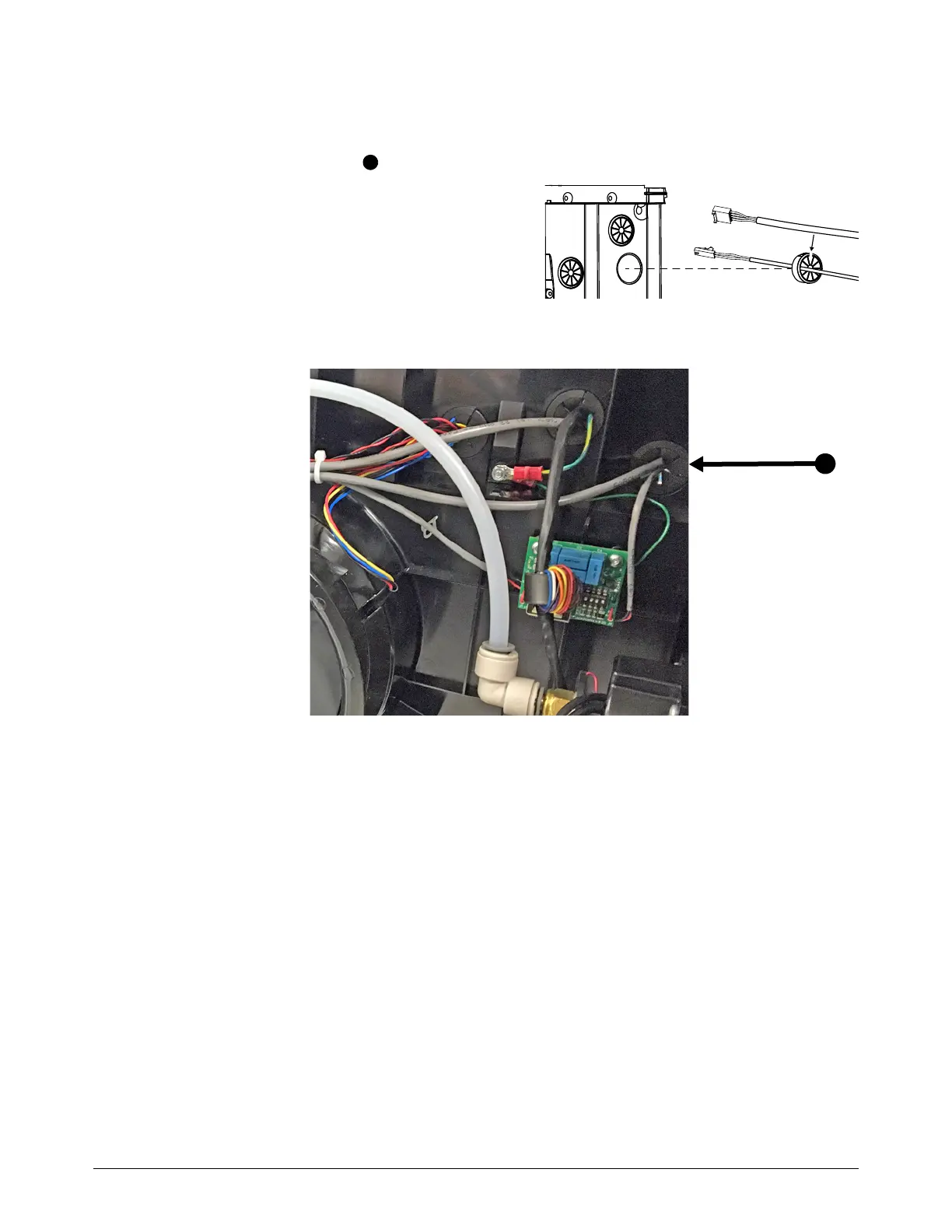

1. From the fan side of the plasma power supply, put the 2-pin connector and the 4-pin connector
through the right grommet .
a. Remove the grommet from the middle
panel.
b. Put the cables in the slot in the
grommet.
c. Put the connectors through the hole in
the middle panel.
d. Install the grommet in the middle panel.
