Machine Interface Receptacle with Voltage Divider PCB
20 806980 Field Service Bulletin Powermax65/85/105/125, Powermax65/85/105 SYNC

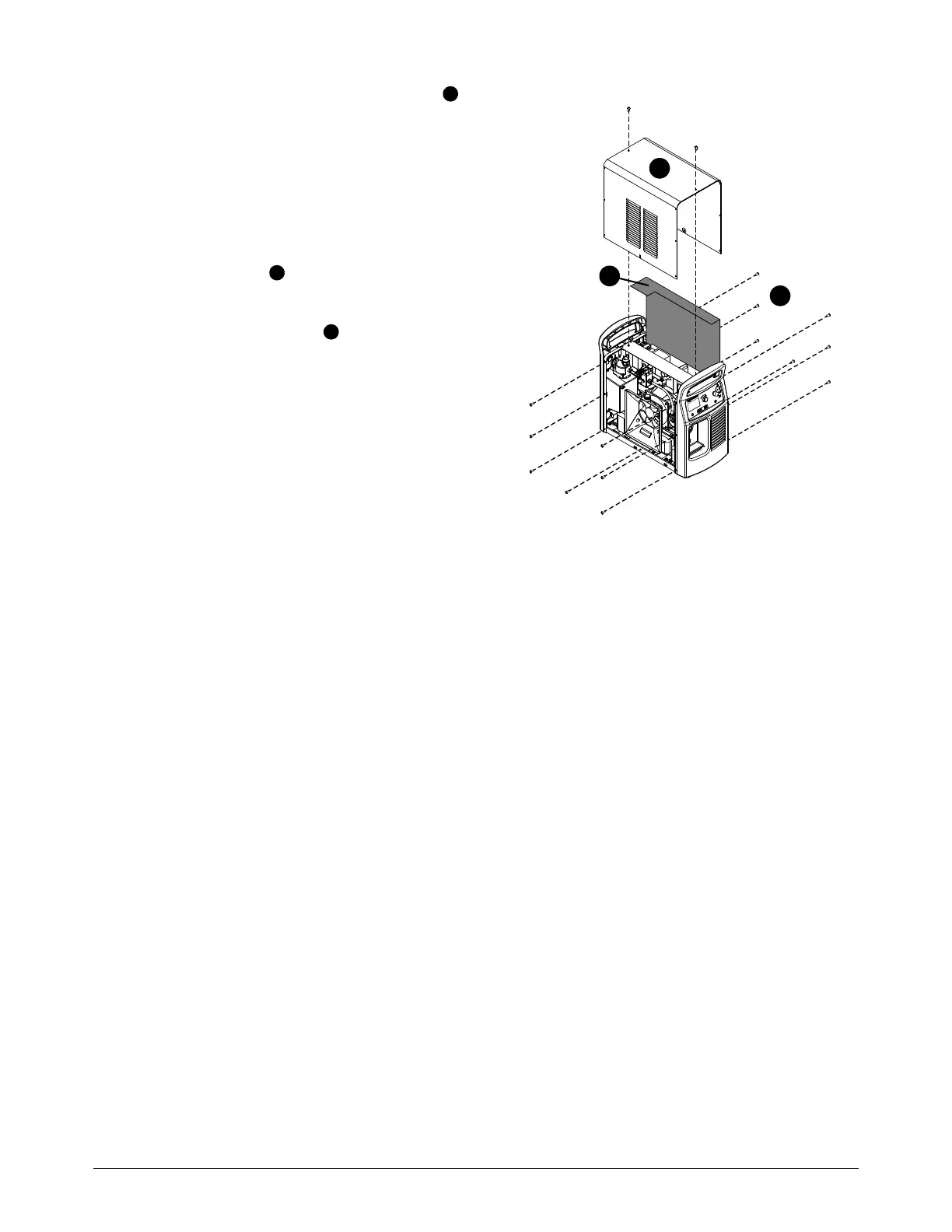

3. Fold the top of the component barrier onto
the top edge of the power PCB, inside the
plasma power supply frame and under the
end panel bracket.
4. Make sure that all of the wires that are
connected to the power PCB are behind the
component barrier.
5. Put the cover on the plasma power supply.
Do not pinch any wires.
6. Install the 16 screws on the plasma power
supply cover. Tighten the screws to 1.7 N·m
(15 lbf·in).
