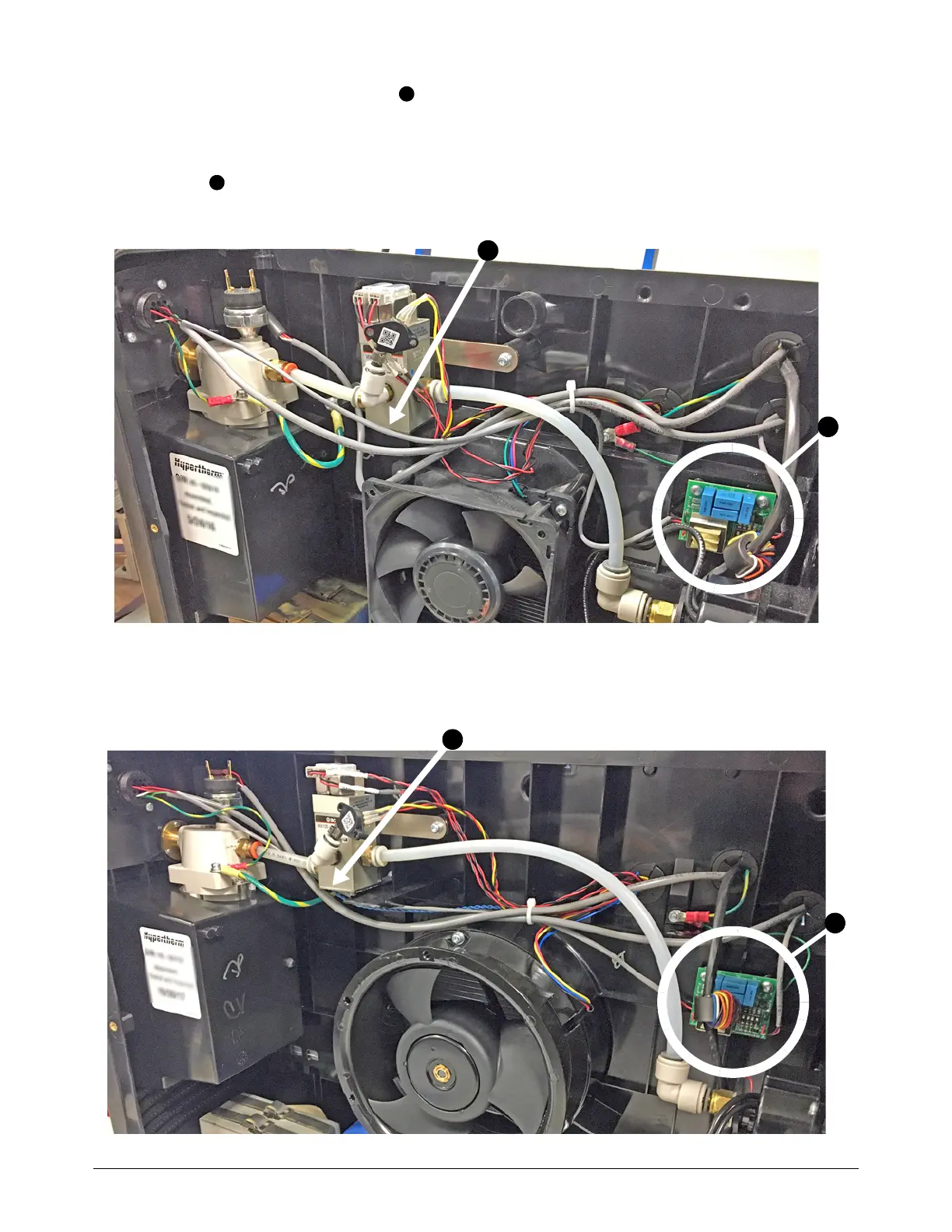

Machine Interface Receptacle with Voltage Divider PCB
8 806980 Field Service Bulletin Powermax65/85/105/125, Powermax65/85/105 SYNC
3. Attach the voltage divider PCB to the right of the fan with 2 screws (075534).
Torque the screws to 1.1 N·m (10 in·lb).
4. Make sure that the cables attached to the voltage divider PCB are installed below the solenoid
valve .
Powermax65/85 and Powermax65/85 SYNC
Powermax105/125 and Powermax105 SYNC
1
2
2
1
2
1
