13 HHT-5000/6000/8000/10000/12000 USER MANUAL
Model
recommended
4
Meter/RS4
85/DRED
Outdoor shielded
twisted pair cable
 Conductor cross-
section:0.14~1.0mm²
 Cable outer diameter:approx. 6mm

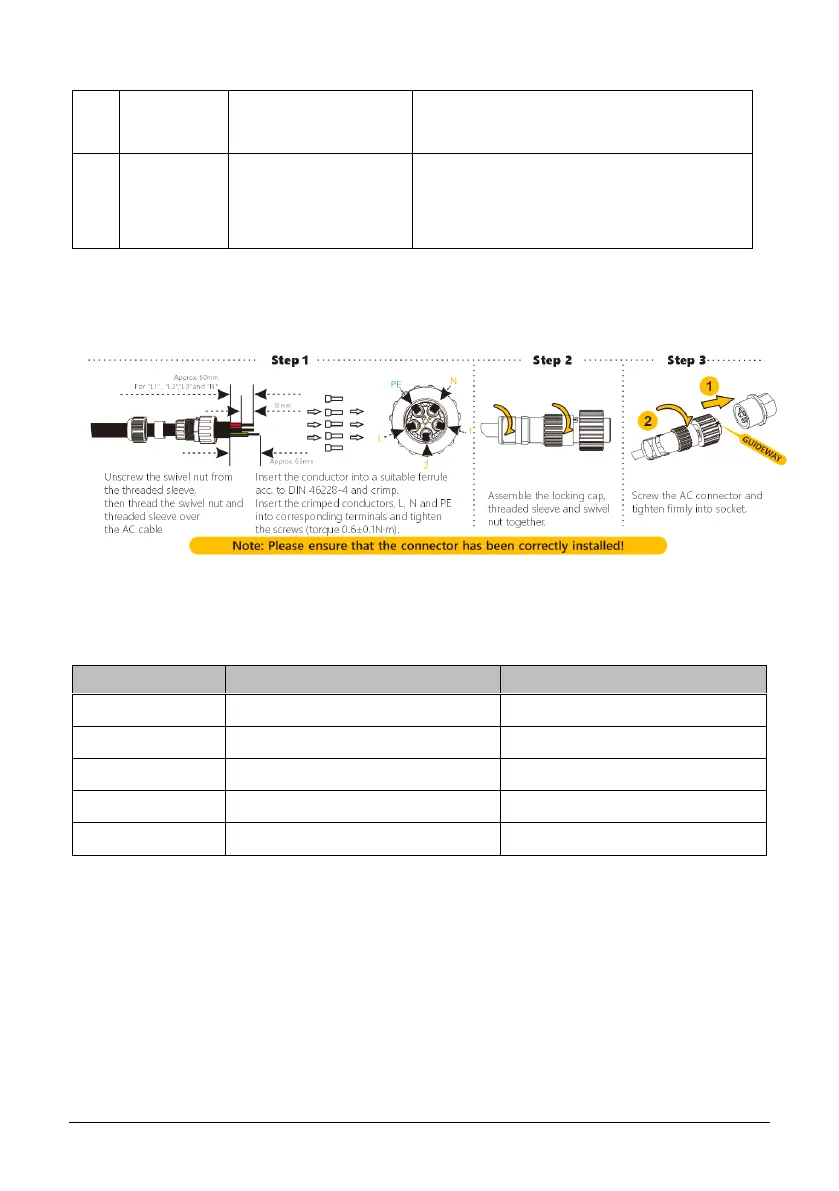

5.2 AC、Back-up Wire Assembly and Connection
5.2.1 AC Commissioning
5.2.2 AC Switch Types
Please install an individual 2-stage miniature circuit breaker according to the following
specifications.
5.3 Back-up Wire Assembly and Connection
5.3.1 Back-up Commissioning
Model
Maximum output current（A）
AC Breaker Rated current（A）
HHT -5000
17
50A/230V AC
HHT -6000
20
50A/230V AC
HHT -8000
22
63A/230V AC
HHT -10000
22
63A/230V AC
HHT-12000
23
63A/230V AC
