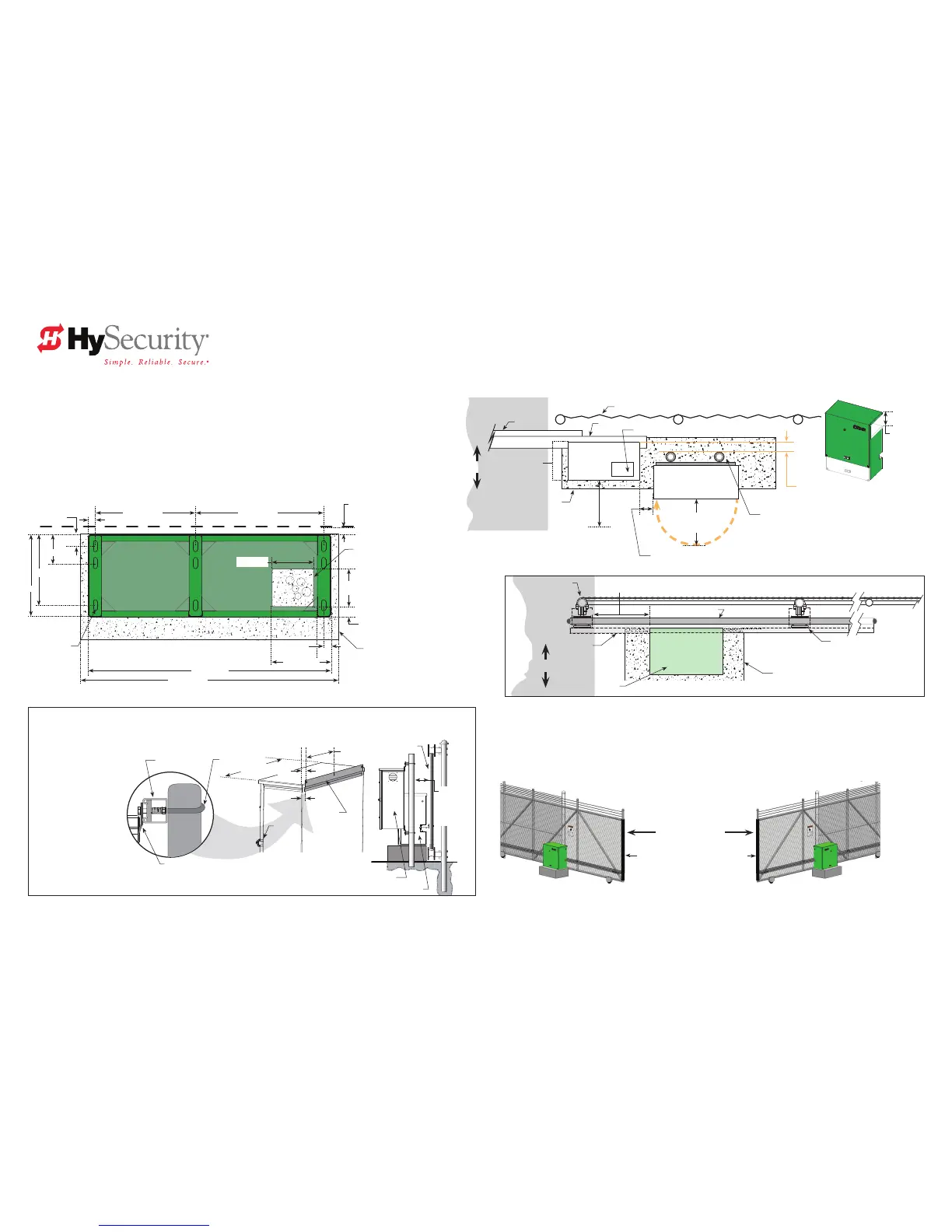

SlideDriver: Site Prep
OperatOr Handing
tOOls required
Drawings NOT to Scale
slidedriver 200 series
pOst MOunt fOr Hydrasupply Or dC / ups Cabinet
• Standard socket set with extension
• Standard hex key set
• Combination wrench set
• Standard pliers and needle-nose pliers
• Set of Phillips head and at-head screwdrivers
• Wire strippers & wire crimper
• Digital Volt-Ohm meter
• Level and measuring tape
• Electric drill and drill bits (Unibit or Stepdrill)
• Metal cutting saw
For the full recommended list of tools and
hardware, see the SlideDriver Programming and
Operations Manual.
When you rst apply power to the operator, it is locked in
Menu mode and prompts appear on the display. The gate
will not move and the controls will not function until the
prompts have been answered. The prompts include:
• Usage Class setting (UC)
• Gate operator handing (Set Handing: SH)
See page 9 for more information.
MINIMUM CONCRETE DIMENSIONS
20” Wide x 47” Length x 16” Depth minimum*
(51 x 119 x 41 cm)
*Or, Frost line whichever is greater. Refer to
local code for appropriate depth.
6½"
(16.5 cm)
1¼" (3 cm)
2" (5 cm)
Conduit cutout area for electrical access.
Cut out dimensions: 8 x 6½" (20 x 16.5 cm)
10" (25 cm)
Distance between gate face
and rear chassis:
1½ ± ⅛ inch (38 mm ± 3 mm)
43" (109 cm)
47" (119 cm)
minimum
2" (5 cm)
5" (13 cm)
12½" (32 cm)
NOTE: Chassis cover
adds ½" (13 mm).
Total depth with
cover = 15" (38 cm).
1¼" (3 cm)
14½" (37 cm)
Mounting bolt
locations
Nine (9) ½ x 4"
anchor bolts.
Required: A
minimum 2 bolts
fastened per
cross support.
17¾" (45 cm)
22¾" (58 cm)
8" (20 cm)
ClearanCes
Modular and DC / UPS options shown:
Post-mounted.
U-bolts mounted to Unistrut on back of cabinet.
Cabinet may also be wall-mounted with anchor bolts.
SlideDriver:
Side Access: Minimum 24 inches (61 cm)
Front Access: Allow 30 inches (76 cm)
Concrete pad extends 2 inch (5 cm)
minimum beyond side and front of gate operator
chassis’ footprint. Conduit runs between gate
operator and cabinet.
Leave enough space between cabinet and chassis to avoid pinch point
and access issues. Conduit runs below ground between the two units.
Offset 3 inches (7.6 cm) from the
surface of the support posts to
rear of SlideDriver chassis.
Cabinet:
Modular, DC / UPS options
SlideDriver
Gate panel
Fence
Drive rail
ROADWAY
Chassis base cut out for conduit
Cabinet (Modular):
Front Access: Minimum 36 inches (92 cm)
Rear Access: Allow 24 inches (61 cm)
Cabinet (DC / UPS):
Door Swing: Minimum 30 inches (76 cm)
Rear Access: Allow 24 inches (61 cm)
Front access
Door swing clearance:
Minimum
36 inches (91 cm)
Side
access
Left hand gate
OPEN
Right hand gate
OPEN
SlideDriver viewed
from the secure side
SlideDriver viewed
from the secure side
Cabinet option
For DC / UPS or Modular
options, wall or post-mount the
cabinet.
If planning a post mount,
mounting holes need to be
drilled (U-bolts, fasteners, and
unistrut are not provided).
Cabinet may also be wall-
mounted with anchor bolts.
NOTE: The mounting holes on
the top and bottom anges are
5/16-inch diameter. Mounting
posts and hardware are not
provided by HySecurity.
13½”
(34 cm)
1⅞”
(5 cm)
1¼”
(3 cm)
Door clip
C/L
C/L
Flange
Flange
Unistrut
U-bolt
30¾” (78 cm)
Offset 4¾"
(12 cm)
Face of
Gate panel
and cabinet
Gate panel face
SlideDriver
Cabinet
For more information, refer to the supplemental manuals that accompany the product.
SLIDEDRIVER
Drive rail
Gate post
Gate panel
Concrete pad
Wheel covers required for
cantilevered gates: UL325
FENCE LINE
ROADWAY
Right handing
gate operator
Allow 12 to 16 inches
(30 to 41 cm)
Minimum
clearance for
cover removal:
15 inches (38 cm)
