5.
Apply RTV sealant (Hyster P/N 280472) to
front and rear surfaces between intake mani-
fold and engine block. See Figure 20. The bead
of sealant must be 5 mm (0.2 in.) thick and ex-
tend up sides of heads 13 mm (0.5 in.) to seal
and retain gaskets.
1. EXTEND BEAD 13 mm (0.5 in.) UP HEADS
(FRONT AND REAR).
2. REAR
3. FRONT

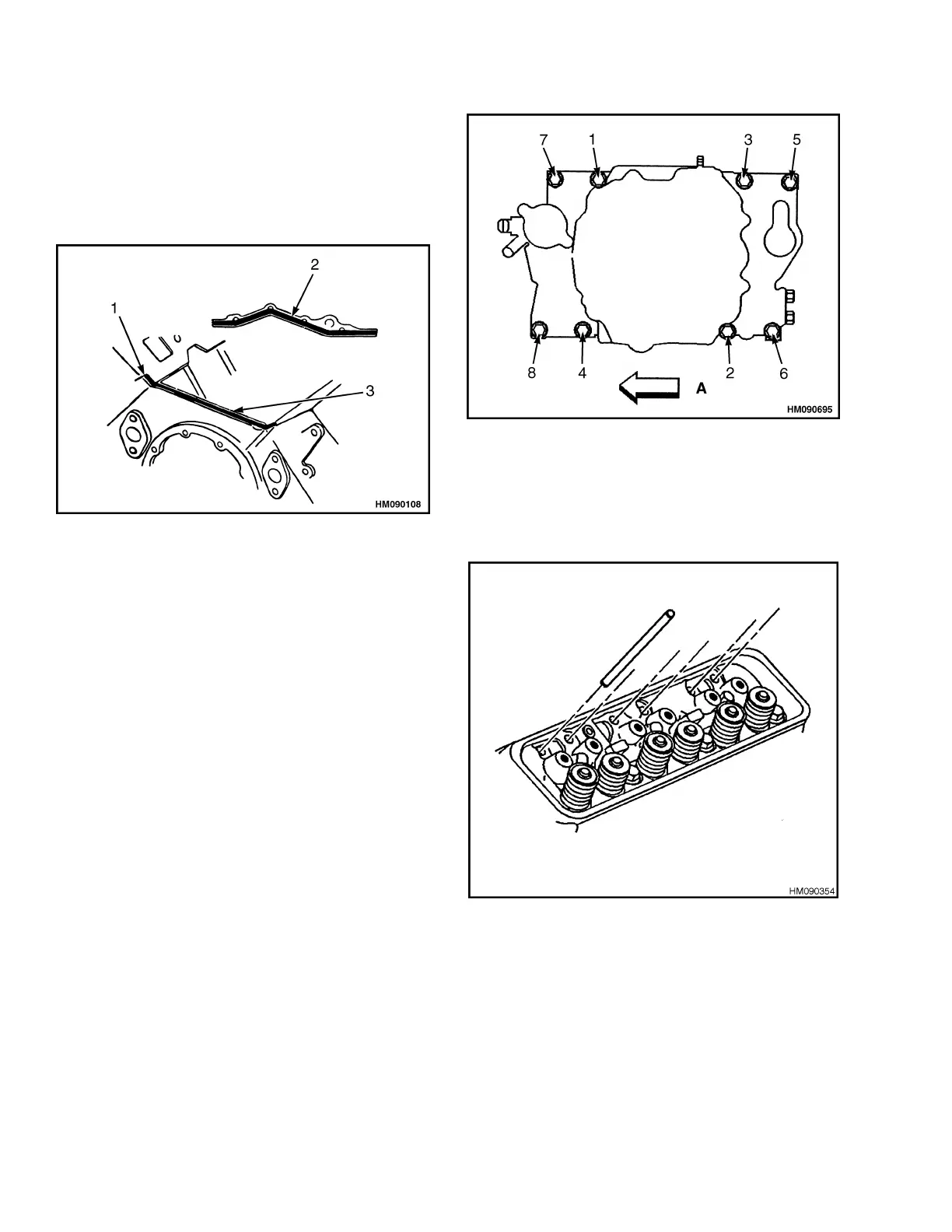

Figure 20. Intake Manifold Sealant Locations
6.
Install gaskets and intake manifold. Tighten
capscrews in sequence shown in Figure 21.
Tighten capscrews on first pass to
3 N•m (27 lbf in). Tighten capscrews on second
pass to 12 N•m (106 lbf in). Tighten capscrews
on final pass to 15 N•m (133 lbf in).
A. FAN END
Figure 21. Intake Manifold Tightening Sequence
7.
Install valve push rods. See Figure 22.
Figure 22. Install Valve Push Rod
Cylinder Head Repair 0600 SRM 1251
14
