CAUTION
Be sure that the arrow on the valve rocker arm
support is in the up position. See Figure 23.
8.
Install valve rocker arm supports.

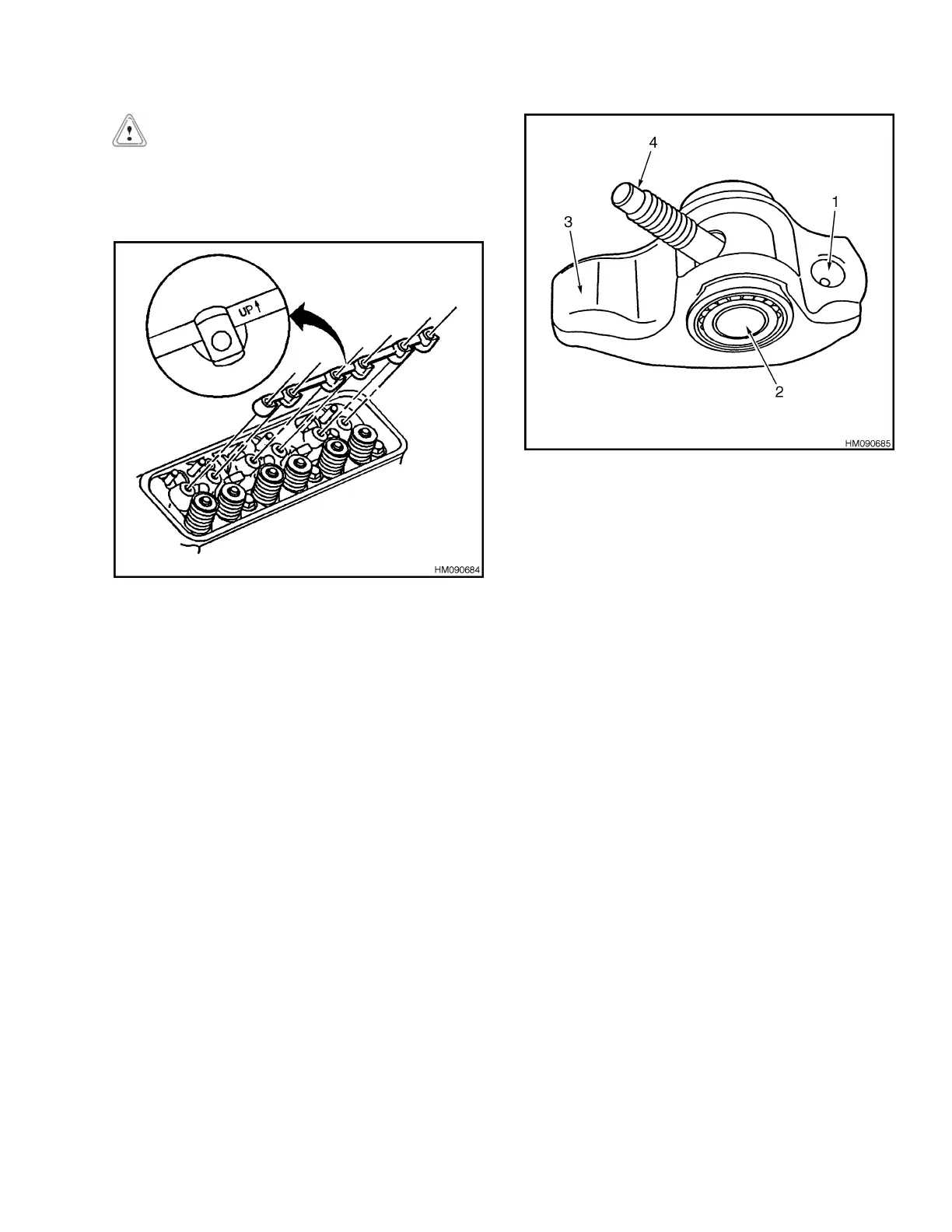

Figure 23. Install Valve Rocker Arm Supports
9.
Apply a molybdenum grease or equivalent to
following valve rocker arm contact surfaces: See
Figure 24.
• Valve push rod socket
• Roller pivot
• Valve stem tip
1. VALVE PUSH ROD SOCKET
2. ROLLER PIVOT
3. VALVE STEM TIP
4. ROCKER ARM BOLT
Figure 24. Lubricate Valve Rocker Arm Surfaces
10.
See Figure 25. Install valve rocker arm assem-
blies as follows:
a.
Finger start rocker arm bolt at location 1 in
Figure 25.
b.
Finger start rocker arm bolt at location 2 in
Figure 25.
c.
Finger start rocker arm bolt at location 3 in
Figure 25.
d.
Finger start remaining three valve rocker
arm bolts.
0600 SRM 1251 Cylinder Head Repair
15
