Safety Procedures When Working Near Mast 4000 SRM 736

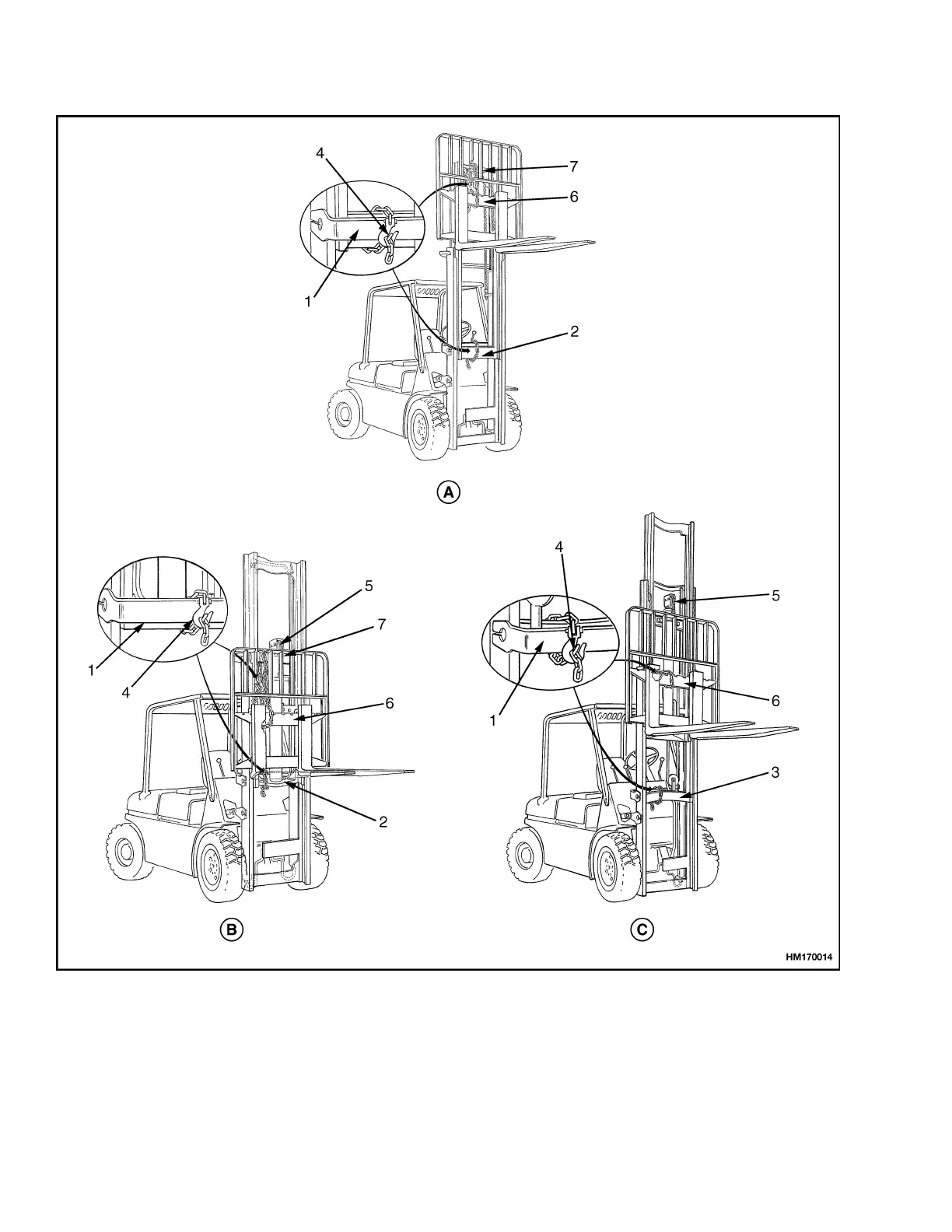

A. TWO-STAGE LFL MAST B. TWO-STAGE FFL MAST C. THREE-STAGE FFL MAST
1. OUTER WELDMENT
2. INNER WELDMENT
3. INTERMEDIATE WELDMENT
4. HOOK
5. FREE-LIFT CYLINDER
6. CROSSMEMBER
7. CROSSMEMBER
Figure 5. Two-Stage LFL, Two-Stage FFL, and Three-Stage FFL Masts
6
